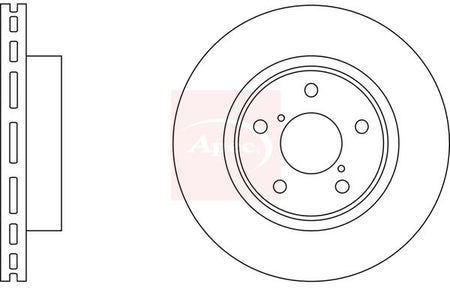

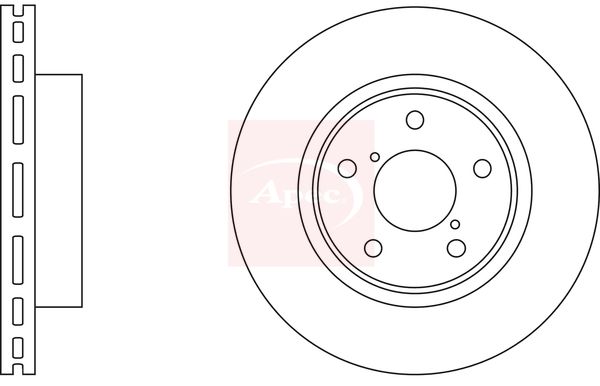

Apec DSK543 Brake Disc - 1
Apec DSK543 Brake Disc - 1
APEC

Apec DSK543 Brake Disc

SKU: DSK543
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£27.64 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUBARU
IMPREZA Saloon (GC)
Description Cylinder Capacity Horse Power Year
1.8 i AWD (GC6) 1820 CCM 103 HP 08/1992 - 12/2000
2.0 i AWD (GC8) 1994 CCM 115 HP 10/1995 - 12/2000
1.6 i (GC3) 1597 CCM 90 HP 08/1992 - 12/2000
2.0 i AWD (GC8) 1994 CCM 125 HP 06/1998 - 12/2000
IMPREZA Estate (GF)
Description Cylinder Capacity Horse Power Year
1.6 i AWD (GF4) 1597 CCM 90 HP 08/1992 - 12/2000
1.8 i AWD (GF6) 1820 CCM 103 HP 08/1992 - 12/2000
2.0 i 16V AWD (GF8) 1994 CCM 125 HP 06/1998 - 12/2000
2.0 i AWD (GF8) 1994 CCM 116 HP 12/1995 - 12/2000
1.6 (GF3) 1597 CCM 90 HP 01/1993 - 08/1998
IMPREZA Coupe (GFC)
Description Cylinder Capacity Horse Power Year
2.0 AWD (GC8) 1994 CCM 115 HP 12/1995 - 12/2000
1.8 1820 CCM 103 HP 01/1993 - 10/1995
IMPREZA Saloon (GD)
Description Cylinder Capacity Horse Power Year
1.6 AWD (GD5) 1597 CCM 95 HP 12/2000 - 06/2009
1.5 AWD (GD3) 1498 CCM 105 HP 05/2006 - 03/2007
1.5 (GD2) 1498 CCM 101 HP 06/2001 - 09/2005
IMPREZA Estate (GG)
Description Cylinder Capacity Horse Power Year
1.6 AWD 1597 CCM 95 HP 12/2000 - 09/2006
LEGACY   (BC)
Description Cylinder Capacity Horse Power Year
1800 4WD (BC3) 1820 CCM 103 HP 01/1989 - 09/1991
2200 4WD (BC7) 2212 CCM 136 HP 01/1989 - 07/1994
LEGACY   Estate (BC, BF, BJ)
Description Cylinder Capacity Horse Power Year
1800 4WD (BF3) 1820 CCM 103 HP 01/1989 - 07/1994
2200 Super 4WD (BF7) 2212 CCM 136 HP 01/1989 - 07/1994
LEGACY Mk II (BD)
Description Cylinder Capacity Horse Power Year
2.0 i 4WD (BD5) 1994 CCM 116 HP 09/1994 - 03/1999
2.2 i 4WD (BD7) 2212 CCM 128 HP 09/1994 - 03/1999
LEGACY Mk II Estate (BG)
Description Cylinder Capacity Horse Power Year
2.0 i 4WD (BG5) 1994 CCM 116 HP 09/1994 - 11/1998
2.2 i 4WD (BG7) 2212 CCM 128 HP 02/1994 - 12/1998

The Apec DSK543 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 260 mm outer diameter, 24 mm brake disc thickness, and 58 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 260
Brake Disc Thickness [mm] : 24
Height [mm] : 57
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 58
Number of Holes : 5
Test Mark : 90R-02C0349/0025
  • Vendor APEC
  • SKU DSK543
  • Barcode 5028906074449
  • SUBARU : 26300AE040 26300AE090 26310AA021 26310AA031 26310AA032 26310AC060
  • BLUE PRINT : ADS74308
  • BORG & BECK : BBD5022
  • BOSCH : 0 986 478 293
  • DELPHI : BG2767
  • FEBI BILSTEIN : 170758
  • HELLA : 8DD 355 105-321
  • MEYLE : 34-15 521 0002
  • MINTEX : MDC809
  • National : NBD472
  • SKF : VKBD 80636 V2
  • TEXTAR : 92081900
  • TRW : DF3091
  • VALEO : 673548
