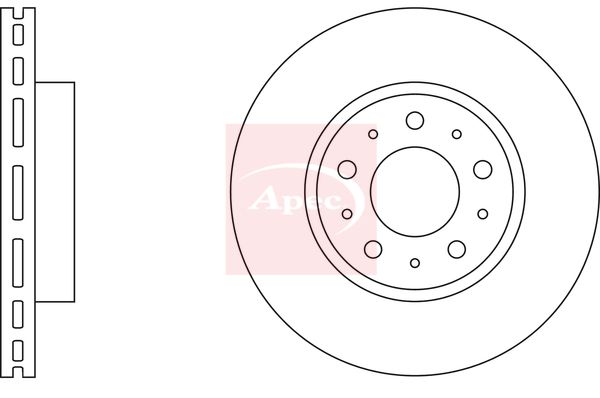

Apec DSK565 Brake Disc - 1

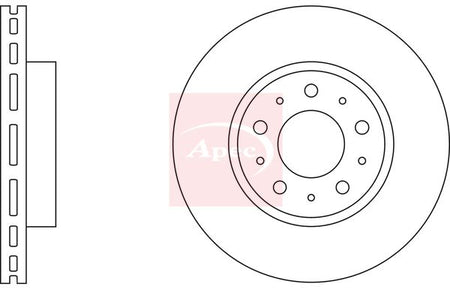

Apec DSK565 Brake Disc - 1
APEC

Apec DSK565 Brake Disc

SKU: DSK565
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£34.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
740 (744)
Description Cylinder Capacity Horse Power Year
2.3 2316 CCM 156 HP 08/1988 - 07/1991
2.3 Turbo 2316 CCM 165 HP 08/1989 - 07/1990
2.0 1986 CCM 121 HP 08/1985 - 07/1992
740 Kombi (745)
Description Cylinder Capacity Horse Power Year
2.4 Turbo-Diesel 2383 CCM 109 HP 09/1985 - 07/1992
2.3 2316 CCM 156 HP 08/1988 - 07/1990
2.4 TD Interc. 2383 CCM 122 HP 08/1986 - 07/1988
2.3 Turbo 2316 CCM 165 HP 08/1989 - 07/1990
760 (704, 764)
Description Cylinder Capacity Horse Power Year
2.3 Turbo 2316 CCM 182 HP 08/1984 - 10/1988
2.4 TDiC 2383 CCM 122 HP 09/1987 - 08/1990
760 Kombi (704, 765)
Description Cylinder Capacity Horse Power Year
2.3 Turbo 2316 CCM 182 HP 08/1984 - 08/1990
2.4 TDiC 2383 CCM 122 HP 09/1987 - 08/1990
940 (944)
Description Cylinder Capacity Horse Power Year
2.0 1986 CCM 112 HP 01/1992 - 07/1994
2.3 2316 CCM 131 HP 08/1990 - 12/1994
2.4 TD Intercooler 2383 CCM 122 HP 08/1990 - 12/1994
2.4 Turbo Diesel 2383 CCM 109 HP 08/1990 - 12/1994
2.3 Turbo 2316 CCM 190 HP 08/1991 - 07/1993
2.3 2316 CCM 156 HP 08/1990 - 07/1991
2.0 Turbo 1986 CCM 155 HP 08/1990 - 12/1994
2.3 2316 CCM 135 HP 05/1991 - 03/1995
940 Kombi (945)
Description Cylinder Capacity Horse Power Year
2.0 1986 CCM 112 HP 01/1992 - 07/1994
2.3 2316 CCM 131 HP 08/1990 - 12/1994
2.3 Turbo 2316 CCM 165 HP 08/1990 - 07/1994
2.3 2316 CCM 155 HP 08/1990 - 07/1991
2.4 Turbo Diesel 2383 CCM 109 HP 08/1990 - 07/1994
2.3 Turbo 2316 CCM 190 HP 08/1991 - 07/1993
2.0 Turbo 1986 CCM 155 HP 01/1991 - 07/1995
2.4 TD Intercooler 2383 CCM 122 HP 08/1990 - 08/1994
940 Mk II Estate (945)
Description Cylinder Capacity Horse Power Year
2.3 2316 CCM 131 HP 08/1994 - 10/1998
2.3 Turbo 2316 CCM 165 HP 08/1994 - 10/1998
2.4 TD Interc. 2383 CCM 122 HP 08/1994 - 10/1998
2.3 ti 2316 CCM 135 HP 01/1995 - 10/1998
2.0 Turbo 1986 CCM 155 HP 04/1996 - 10/1998
940 Mk II (944)
Description Cylinder Capacity Horse Power Year
2.4 TD Interc. 2383 CCM 122 HP 08/1994 - 10/1998
2.3 ti 2316 CCM 135 HP 01/1995 - 10/1998
2.0 Turbo 1986 CCM 155 HP 04/1996 - 10/1998
2.3 Turbo 2316 CCM 171 HP 01/1995 - 12/1998
960 (964)
Description Cylinder Capacity Horse Power Year
2.3 Turbo 2316 CCM 165 HP 09/1990 - 08/1993
960 Kombi (965)
Description Cylinder Capacity Horse Power Year
2.9 2922 CCM 204 HP 08/1990 - 07/1994
2.3 Turbo 2316 CCM 165 HP 09/1990 - 08/1993
960 Mk II (964)
Description Cylinder Capacity Horse Power Year
2.5 2473 CCM 170 HP 07/1994 - 12/1996
960 Mk II Estate (965)
Description Cylinder Capacity Horse Power Year
2.9 2922 CCM 204 HP 09/1994 - 12/1996
2.5 2473 CCM 170 HP 08/1994 - 12/1996

The Apec DSK565 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 280 mm outer diameter, 26 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 26
Height [mm] : 56
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 68
Number of Holes : 5
Test Mark : 90R-02C0349/0737
  • Vendor APEC
  • SKU DSK565
  • Barcode 5028906074661
  • VOLVO : 31262209 3516567 35165679 6848902 68489020
  • APEC : SDK6880
  • BLUE PRINT : ADF124332
  • BORG & BECK : BBD4013
  • BORG & BECK : BBD4940
  • BOSCH : 0 986 478 298
  • BREMBO : 09.5315.14
  • DELPHI : BG2719
  • DELPHI : BG2719C
  • FEBI BILSTEIN : 15089
  • HELLA : 8DD 355 102-541
  • MEYLE : 515 521 5002
  • MINTEX : MDC736
  • National : NBD308
  • SKF : VKBD 80382 V2
  • TEXTAR : 92055400
  • TRW : DF1697
