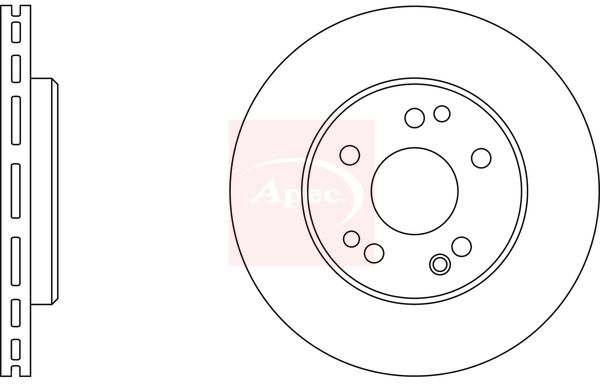

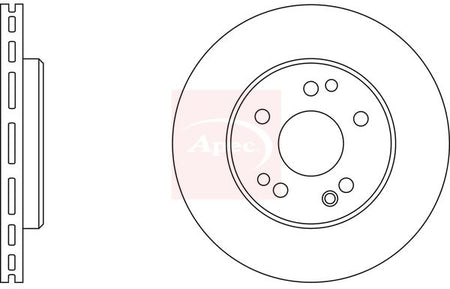

Apec DSK571 Brake Disc - 1
Apec DSK571 Brake Disc - 1
APEC

Apec DSK571 Brake Disc

SKU: DSK571
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£31.81 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
123 Coupe (C123)
Description Cylinder Capacity Horse Power Year
230 CE (123.243) 2299 CCM 136 HP 04/1980 - 12/1985
124 Saloon (W124)
Description Cylinder Capacity Horse Power Year
200 (124.020) 1996 CCM 102 HP 01/1986 - 05/1990
200 (124.020) 1996 CCM 109 HP 12/1985 - 05/1990
200 E (124.021) 1996 CCM 118 HP 09/1988 - 08/1993
230 E (124.023) 2298 CCM 132 HP 12/1984 - 03/1992
230 E (124.023) 2298 CCM 136 HP 01/1985 - 06/1993
260 E (124.026) 2597 CCM 166 HP 09/1985 - 12/1989
300 E 4-matic 2960 CCM 188 HP 09/1986 - 02/1992
300 E 2960 CCM 188 HP 06/1985 - 08/1992
124 T-Model (S124)
Description Cylinder Capacity Horse Power Year
200 T (124.080) 1996 CCM 105 HP 01/1986 - 05/1990
200 T (124.080) 1996 CCM 109 HP 09/1985 - 08/1989
300 TE 4-matic (124.290) 2960 CCM 180 HP 09/1986 - 06/1993
300 TE (124.090) 2960 CCM 180 HP 01/1986 - 08/1992
300 TE (124.090) 2960 CCM 188 HP 01/1986 - 12/1989
300 TE 4-matic (124.290) 2960 CCM 188 HP 09/1986 - 12/1989
300 T D (124.190) 2996 CCM 109 HP 09/1986 - 06/1993
124 Coupe (C124)
Description Cylinder Capacity Horse Power Year
230 CE (124.043) 2298 CCM 136 HP 03/1987 - 12/1992
300 CE 2960 CCM 188 HP 03/1987 - 12/1989
230 CE Cat (124.043) 2298 CCM 132 HP 06/1989 - 12/1992
220 CE (124.042) 2199 CCM 150 HP 10/1992 - 05/1993
190 (W201)
Description Cylinder Capacity Horse Power Year
E 2.3-16 (201.034) 2298 CCM 185 HP 04/1984 - 01/1987
E 2.5-16 (201.035) 2498 CCM 204 HP 09/1988 - 08/1993
E-CLASS (W124)
Description Cylinder Capacity Horse Power Year
E 300 D (124.131) 2996 CCM 136 HP 07/1993 - 06/1995
E 200 (124.019) 1998 CCM 136 HP 06/1993 - 06/1995
E 220 (124.022) 2199 CCM 150 HP 06/1993 - 06/1995
E 280 (124.029) 2799 CCM 193 HP 06/1993 - 06/1995
E 280 (124.028) 2799 CCM 197 HP 06/1993 - 06/1995
E-CLASS Convertible (A124)
Description Cylinder Capacity Horse Power Year
E 200 (124.060) 1998 CCM 136 HP 06/1993 - 03/1998
E 220 (124.062) 2199 CCM 150 HP 06/1993 - 03/1998
E-CLASS T-Model (S124)
Description Cylinder Capacity Horse Power Year
E 300 TD (124.191) 2996 CCM 136 HP 06/1993 - 06/1996
E 200 T (124.079) 1998 CCM 136 HP 06/1993 - 06/1996
E 220 T (124.082) 2199 CCM 150 HP 06/1993 - 06/1996
E 280 T (124.088) 2799 CCM 197 HP 06/1993 - 06/1996
E 280 T (124.088) 2799 CCM 193 HP 06/1993 - 06/1996
E-CLASS Coupe (C124)
Description Cylinder Capacity Horse Power Year
E 200 (124.040) 1998 CCM 136 HP 06/1993 - 06/1997
E 220 (124.042) 2199 CCM 150 HP 06/1993 - 06/1997
SL (R107)
Description Cylinder Capacity Horse Power Year
300 SL (107.041) 2960 CCM 188 HP 09/1985 - 08/1989
420 SL (107.047) 4196 CCM 218 HP 01/1986 - 08/1989

The Apec DSK571 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 284 mm outer diameter, 22 mm brake disc thickness, and 15 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 284
Brake Disc Thickness [mm] : 22
Height [mm] : 43
Bolt Hole Circle Ø [mm] : 112
Wheel Bolt Bore Diameter [mm] : 15
Centering Diameter [mm] : 67
Number of Holes : 5
Test Mark : 90R-02C0349/1357
  • Vendor APEC
  • SKU DSK571
  • Barcode 5028906074722
  • MERCEDES-BENZ : 1244211612 1244212712 1294210312 A1244211612 A1244212712 A1294210312
  • BLUE PRINT : ADU174321
  • BORG & BECK : BBD5054
  • BOSCH : 0 986 478 186
  • BREMBO : 09.4869.34
  • DELPHI : BG2345
  • FEBI BILSTEIN : 05230
  • HELLA : 8DD 355 100-941
  • MEYLE : 015 521 0033
  • MEYLE : 015 521 0033/PD
  • MINTEX : MDC373
  • National : NBD078
  • TEXTAR : 92031900
  • TRW : DF1585
  • VALEO : 186185
  • VALEO : 673373
