Apec DSK620 Brake Disc - 1
Apec DSK620 Brake Disc - 1
APEC

Apec DSK620 Brake Disc

SKU: DSK620
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£29.94 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TRANSIT Platform/Chassis (V_ _)
Description Cylinder Capacity Horse Power Year
2.4 D (VGL, VSL, VTL, VCS, VDS) 2358 CCM 62 HP 01/1978 - 12/1985
2.5 D (VGL, VSL, VTL, VCS, VDS) 2496 CCM 68 HP 10/1983 - 10/1986
2.0 (VGL, VSL, VTL) 1993 CCM 59 HP 11/1977 - 07/1982
2.0 (VGL, VSL, VTL, VCS, VDS) 1993 CCM 78 HP 11/1977 - 10/1986
1.6 (VCS, VDS) 1593 CCM 65 HP 11/1977 - 10/1986
1.6 1598 CCM 84 HP 01/1978 - 10/1986
TRANSIT Van (T_ _)
Description Cylinder Capacity Horse Power Year
2.5 D (TAL, TAS, TGL, TWS) 2496 CCM 71 HP 10/1988 - 09/1991
2.0 (TAL, TAS, TGL, TWS) 1994 CCM 78 HP 09/1985 - 09/1992
2.5 D (TAL, TAS, TGL, TWS) 2496 CCM 68 HP 01/1986 - 09/1991
1.6 (TAS) 1593 CCM 63 HP 09/1985 - 09/1992
1.6 1598 CCM 84 HP 10/1985 - 07/1987
2.0 1993 CCM 76 HP 10/1985 - 03/1991
2.5 D 2496 CCM 82 HP 10/1985 - 03/1991
TRANSIT Platform/Chassis (T_ _)
Description Cylinder Capacity Horse Power Year
2.5 DI (TTE, TTL, TTS, TUL) 2496 CCM 71 HP 09/1988 - 09/1992
2.0 (TTE, TTL, TTS) 1994 CCM 78 HP 01/1986 - 09/1992
2.0 Cat (TUL) 1993 CCM 78 HP 11/1985 - 09/1992
2.5 D (TTL, TTS, TUL, TUS, TTE) 2496 CCM 68 HP 01/1986 - 01/1989
2.0 1993 CCM 82 HP 10/1985 - 03/1991
TRANSIT Bus (T_ _)
Description Cylinder Capacity Horse Power Year
1.6 (TBL, TES) 1593 CCM 63 HP 12/1985 - 01/1989
2.0 (TBS, TCL, TCS, TEL, TES) 1994 CCM 78 HP 11/1985 - 09/1992
2.5 D (TBS, TCL, TCS, TEL, TES) 2496 CCM 68 HP 12/1985 - 01/1989
2.5 D (TBS, TEL, TES) 2496 CCM 71 HP 09/1988 - 09/1992
2.0 Cat (TBS, TCL, TCS) 1993 CCM 78 HP 12/1985 - 09/1992
2.0 1993 CCM 82 HP 10/1985 - 03/1991
2.5 D 2496 CCM 82 HP 12/1985 - 01/1989
TRANSIT Platform/Chassis (E_ _)
Description Cylinder Capacity Horse Power Year
2.5 DI (EME/L/S, ENE/L/S) 2496 CCM 80 HP 09/1991 - 08/1994

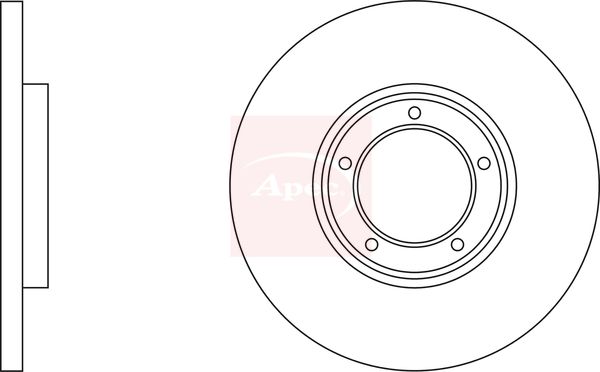

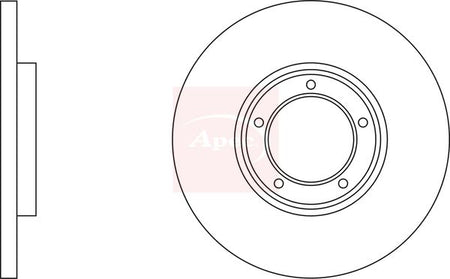

The Apec DSK620 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 254 mm outer diameter, 14 mm brake disc thickness, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 254
Brake Disc Thickness [mm] : 14
Height [mm] : 31
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 79
Number of Holes : 5
Test Mark : 90R-02C0355/0815
  • Vendor APEC
  • SKU DSK620
  • Barcode 5028906075217
  • FORD : 5022676 6135249 6166055 86VX1125AB
  • BLUE PRINT : ADF124367
  • BORG & BECK : BBD4870
  • BOSCH : 0 986 478 345
  • BREMBO : 08.5013.10
  • DELPHI : BG2349
  • MINTEX : MDC430
  • National : NBD029
  • TEXTAR : 92037900
  • TRW : DF1653
