Apec DSK630 Brake Disc - 1
Apec DSK630 Brake Disc - 1
APEC

Apec DSK630 Brake Disc

SKU: DSK630
Your selected vehicle
Out of stock
Out of Stock
£34.09 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
80 B4 Avant (8C5)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 07/1992 - 01/1996
1.6 E 1595 CCM 101 HP 06/1993 - 01/1996
80 B4 Saloon (8C2)
Description Cylinder Capacity Horse Power Year
1.9 TD 1896 CCM 75 HP 09/1991 - 12/1994
1.9 TDI 1896 CCM 90 HP 09/1991 - 12/1994
1.6 E 1595 CCM 101 HP 06/1993 - 12/1994
2.0 1984 CCM 90 HP 09/1991 - 12/1994
2.0 E 1984 CCM 115 HP 09/1991 - 12/1994

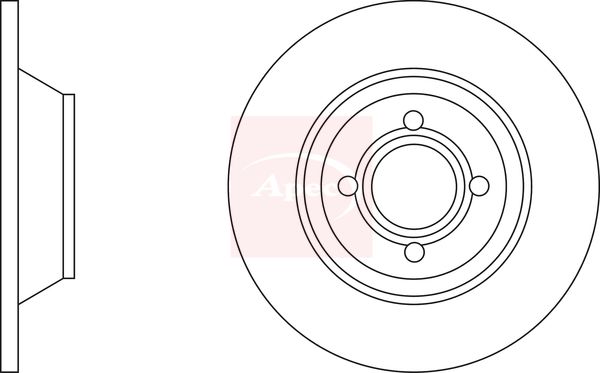

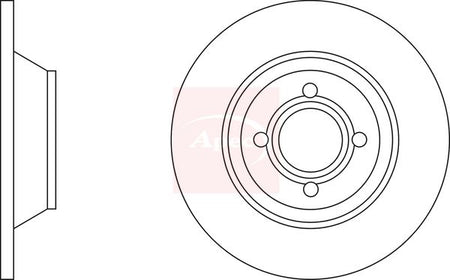

The Apec DSK630 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 280 mm outer diameter, 13 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 13
Height [mm] : 56
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 68
Number of Holes : 4
Test Mark : 90R-02C0355/0787
  • Vendor APEC
  • SKU DSK630
  • Barcode 5028906075316
  • AUDI : 8A0615301 8A0615301D
  • BORG & BECK : BBD4971
  • BOSCH : 0 986 478 131
  • BREMBO : 08.5709.10
  • BREMBO : 08.5709.75
  • DELPHI : BG2783
  • FEBI BILSTEIN : 08553
  • FEBI BILSTEIN : 11203
  • HELLA : 8DD 355 103-071
  • MEYLE : 115 521 1024
  • MINTEX : MDC812
  • National : NBD505
  • TEXTAR : 92060400
  • TRW : DF2597
  • VALEO : 186269
  • VALEO : 673470
