Apec DSK658 Brake Disc - 1
Apec DSK658 Brake Disc - 1
APEC

Apec DSK658 Brake Disc

SKU: DSK658
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£34.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
DYNA 100 Platform/Chassis (LY1_, YY1_)
Description Cylinder Capacity Horse Power Year
2.4 D (LY100_, LY100R) 2446 CCM 73 HP 05/1995 - 07/2001
HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_)
Description Cylinder Capacity Horse Power Year
2.0 (YH51, YH61) 1998 CCM 88 HP 12/1982 - 08/1989
HIACE IV Van (_H1_)
Description Cylinder Capacity Horse Power Year
2.4 D (LH102, LH104, LH112) 2446 CCM 78 HP 09/1989 - 08/1995
HILUX IV Pickup (_N5_, _N6_)
Description Cylinder Capacity Horse Power Year
1.8 (YN51, YN56) 1812 CCM 79 HP 08/1983 - 03/1989
HILUX IV Platform/Chassis (_N5_, _N6_)
Description Cylinder Capacity Horse Power Year
1.8 (YN56) 1812 CCM 79 HP 08/1983 - 07/1988
HILUX V Pickup (_N8_, _N9_, _N10_, _N11_)
Description Cylinder Capacity Horse Power Year
2.4 D (LN85, LN90) 2446 CCM 80 HP 10/1991 - 07/1997
1.8 (YN85, YN90) 1812 CCM 83 HP 09/1988 - 06/1998
2.4 D (LN90_, LN90R) 2446 CCM 79 HP 03/1995 - 08/1997
2.4 D (LN5_, LN85, LN90) 2446 CCM 75 HP 10/1988 - 07/1997
HILUX VI Pickup (_N1_)
Description Cylinder Capacity Horse Power Year
2.4 D (LN150, LN145) 2446 CCM 75 HP 08/1997 - 04/2005
2.5 D-4D (KDN145, KDN150) 2494 CCM 88 HP 11/2001 - 07/2005
2.4 TD (LN190) 2446 CCM 90 HP 08/1997 - 07/2001
2.4 D (LN145, LN150) 2446 CCM 79 HP 08/1997 - 07/2005
2.4 D (LN145, LN150) 2446 CCM 83 HP 08/1997 - 08/2001
LITEACE Van (_M3_, _M4_)
Description Cylinder Capacity Horse Power Year
1.8 (YM30, YM35, YM31) 1812 CCM 83 HP 01/1986 - 12/1992
REGIUS IV MPV (_H1_)
Description Cylinder Capacity Horse Power Year
2.4 D (LH100, LH110, LH104, LH114) 2446 CCM 78 HP 08/1989 - 12/2004
VW
TARO
Description Cylinder Capacity Horse Power Year
1.8 1812 CCM 83 HP 04/1989 - 09/1994
2.4 D 4x4 2446 CCM 83 HP 04/1989 - 03/1997

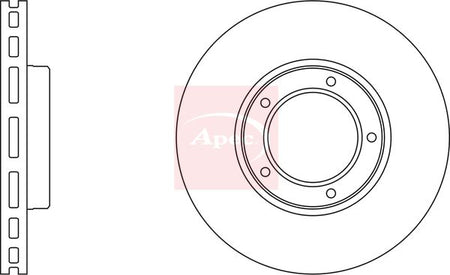

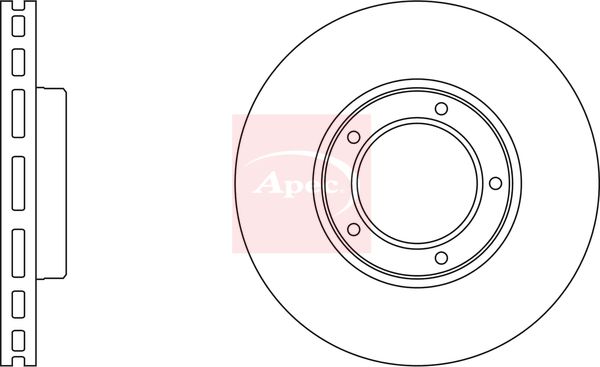

The Apec DSK658 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 255 mm outer diameter, 25 mm brake disc thickness, and 84 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 255
Brake Disc Thickness [mm] : 25
Height [mm] : 46
Bolt Hole Circle Ø [mm] : 110
Centering Diameter [mm] : 84
Number of Holes : 5
Test Mark : 90 R - 02 C0277/1750
  • Vendor APEC
  • SKU DSK658
  • Barcode 5028906075590
  • TOYOTA : 4351220090 4351226090
  • BLUE PRINT : ADT34360
  • BORG & BECK : BBD5105
  • BREMBO : 09.6710.10
  • DELPHI : BG3174
  • FEBI BILSTEIN : 29980
  • HELLA : 8DD 355 105-181
  • MINTEX : MDC1072
  • National : NBD276
  • TEXTAR : 92080300
  • TRW : DF2745
