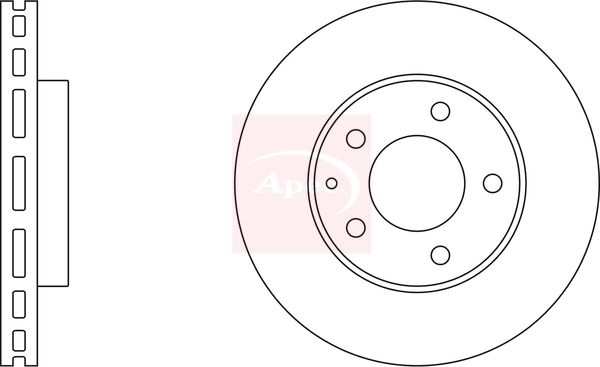

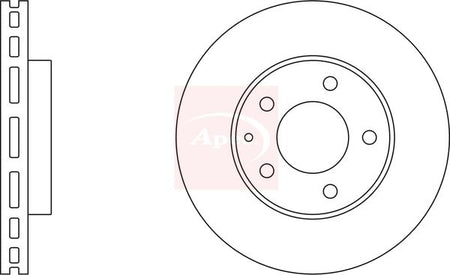

Apec DSK677 Brake Disc - 1
Apec DSK677 Brake Disc - 1
APEC

Apec DSK677 Brake Disc

SKU: DSK677
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£52.05 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
MPV Mk II (LW)
Description Cylinder Capacity Horse Power Year
2.0 (LWEW) 1991 CCM 122 HP 09/1999 - 08/2000
2.0 (LWEW) 1991 CCM 120 HP 10/1999 - 04/2003
2.3 (LW3W) 2261 CCM 141 HP 07/2002 - 02/2006
XEDOS 9 (TA)
Description Cylinder Capacity Horse Power Year
2.5 24V (TA5P) 2497 CCM 167 HP 07/1993 - 07/2000
2.3 24V (TA3P) 2255 CCM 211 HP 02/1995 - 01/2000

The Apec DSK677 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 274 mm outer diameter, 28 mm brake disc thickness, and 72 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 274
Brake Disc Thickness [mm] : 28
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 72
Number of Holes : 5
Test Mark : 90R-02C0349/0998
  • Vendor APEC
  • SKU DSK677
  • Barcode 5028906075781
  • MAZDA : T0023325X T0023325XA TY013325X TY013325XA TY073325XA
  • BLUE PRINT : ADM54354C
  • BLUE PRINT : ADM54367
  • BORG & BECK : BBD4483
  • BOSCH : 0 986 479 016
  • DELPHI : BG3232
  • MINTEX : MDC1229
  • National : NBD675
  • TEXTAR : 92079200
  • TRW : DF4012
