Apec DSK678 Brake Disc

SKU: DSK678
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£47.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
ALPHARD I (_H1_)
Description Cylinder Capacity Horse Power Year
2.4 (ANH10W) 2362 CCM 159 HP 09/2003 - 04/2008
AVENSIS VERSO (_M2_)
Description Cylinder Capacity Horse Power Year
2.0 VVT-i (ACM20_, ACM20R) 1998 CCM 150 HP 08/2001 - 11/2009
2.0 D (CLM20_, CLM20R) 1995 CCM 116 HP 08/2001 - 08/2005
CAMRY (_V1_)
Description Cylinder Capacity Horse Power Year
2.2 (SXV10_, SXV10R) 2164 CCM 136 HP 06/1991 - 07/1996
3.0 (VCV10_, VCV10R) 2959 CCM 188 HP 06/1991 - 08/1996
CAMRY Estate (_V1_)
Description Cylinder Capacity Horse Power Year
2.2 (SXV10_, SXV10R) 2164 CCM 136 HP 09/1991 - 07/1996
3.0 (VCV10_, VCV10R) 2959 CCM 188 HP 09/1991 - 07/1996
CAMRY (_V2_)
Description Cylinder Capacity Horse Power Year
3.0 24V (MCV20_, MCV20, MCV10) 2995 CCM 190 HP 08/1996 - 11/2001
2.2 (SXV20_, SXV20) 2164 CCM 131 HP 08/1996 - 11/2001
PREVIA / ESTIMA II (_R3_)
Description Cylinder Capacity Horse Power Year
2.4 (ACR30) 2362 CCM 156 HP 02/2000 - 02/2006
2.0 D-4D (CLR30_, CLR30R) 1995 CCM 116 HP 03/2001 - 01/2006
3.0 (MCR30W) 2995 CCM 220 HP 08/2000 - 12/2005
3.0 4WD (MCR40W) 2995 CCM 220 HP 02/2000 - 12/2005
2.4 (ACR30) 2362 CCM 170 HP 02/2000 - 01/2006
PRONARD Saloon (_X2_)
Description Cylinder Capacity Horse Power Year
3.0 (MCX20) 2995 CCM 214 HP 09/1999 - 12/2004
WINDOM (_V1_)
Description Cylinder Capacity Horse Power Year
3.0 (VCV10) 2959 CCM 200 HP 10/1991 - 08/1996
WINDOM (_V2_)
Description Cylinder Capacity Horse Power Year
3.0 (MCV20) 2995 CCM 211 HP 10/1996 - 07/2001

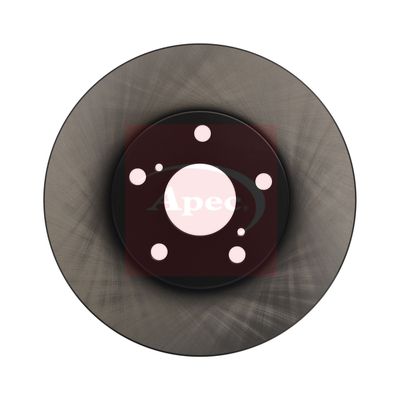

The Apec DSK678 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 275 mm outer diameter, 28 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 275
Brake Disc Thickness [mm] : 28
Height [mm] : 49
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 62
Number of Holes : 5
Test Mark : 90R-02C0349/1047
  • Vendor APEC
  • SKU DSK678
  • Barcode 5028906075798
  • TOYOTA : 4351206020 4351206030 4351206040 4351207020 4351233040 4351233041 4351233042 4351233043 4351233060
  • BLUE PRINT : ADT34378
  • BORG & BECK : BBD4309
  • BORG & BECK : BBD5034
  • BOSCH : 0 986 478 632
  • BOSCH : 0 986 479 R58
  • DELPHI : BG2782
  • FEBI BILSTEIN : 108437
  • HELLA : 8DD 355 104-931
  • MEYLE : 30-15 521 0031
  • MINTEX : MDC898
  • National : NBD551
  • SKF : VKBD 80479 V2
  • TEXTAR : 92077703
  • TRW : DF1431
  • VALEO : 197166
  • VALEO : 673355
