APEC

Apec DSK686 Brake Disc

SKU: DSK686

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£42.26 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

ESTIMA EMINA / LUCIDA (_R1_, _R2_)

Description	Cylinder Capacity	Horse Power	Year
2.4 (TCR10G, TCR11G, TCR10W)	2438 CCM	135 HP	05/1990 - 12/1999
2.4 4x4 (TCR20G, TCR21G)	2438 CCM	135 HP	05/1990 - 12/1999
2.2 TD 4x4 (CXR20G, CXR21G)	2184 CCM	101 HP	01/1992 - 08/1999
2.4 4x4 (TCR10G, TCR11G)	2438 CCM	160 HP	09/1993 - 12/1999
2.4 (TCR11_, TCR10_, TCR10R, TCR11R)	2438 CCM	160 HP	09/1993 - 12/1999
2.2 TD (CXR10, CXR11)	2184 CCM	100 HP	01/1992 - 12/1999

LITEACE Bus

Description	Cylinder Capacity	Horse Power	Year
2.0 (SR40)	1998 CCM	128 HP	01/1998 - 08/2002
2.0 4WD (SR50G)	1998 CCM	128 HP	10/1996 - 10/2001

PREVIA / ESTIMA I (_R1_, _R2_)

Description	Cylinder Capacity	Horse Power	Year
2.4 (TCR11_, TCR10_, TCR10R, TCR11R)	2438 CCM	132 HP	05/1990 - 08/2000
2.4 4WD (TCR21_, TCR20_, TCR21R, TCR20R)	2438 CCM	132 HP	01/1990 - 08/2000

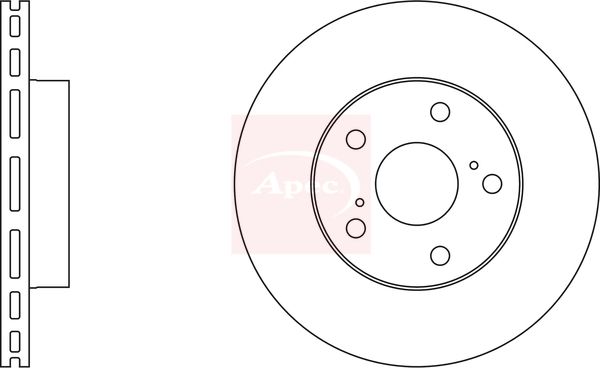

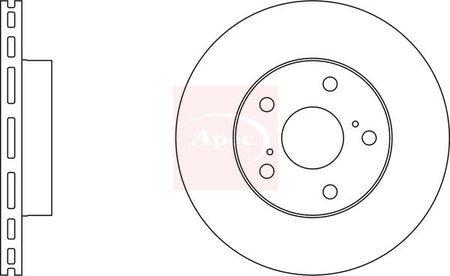

The Apec DSK686 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 279 mm outer diameter, 22 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 279

Brake Disc Thickness [mm] : 22

Height [mm] : 53

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 62

Number of Holes : 5

Test Mark : 90R-02C0349/0718

Apec DSK686 Brake Disc
