Apec DSK694 Brake Disc - 1
Apec DSK694 Brake Disc - 1
APEC

Apec DSK694 Brake Disc

SKU: DSK694
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£28.01 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HONDA
ACCORD Mk IV (CB)
Description Cylinder Capacity Horse Power Year
2.2 i 16V (CB7) 2156 CCM 150 HP 01/1990 - 03/1993
ACCORD Mk V (CC, CD)
Description Cylinder Capacity Horse Power Year
2.0 i (CD4) 1997 CCM 116 HP 03/1993 - 01/1996
2.0 i S (CD4) 1997 CCM 131 HP 03/1993 - 01/1996
2.3 i SR (CD6) 2259 CCM 158 HP 03/1993 - 01/1996
ACCORD Mk V (CE, CF_, CD)
Description Cylinder Capacity Horse Power Year
2.0 i LS (CE8) 1997 CCM 131 HP 02/1996 - 10/1998
2.2 i VTEC (CE9) 2156 CCM 150 HP 02/1996 - 10/1998
INSPIRE (UA1, UA3)
Description Cylinder Capacity Horse Power Year
2.5 2451 CCM 179 HP 06/1995 - 08/1998
ROVER
600 I (RH)
Description Cylinder Capacity Horse Power Year
620 i 1997 CCM 115 HP 08/1993 - 06/1996
620 Si 1997 CCM 131 HP 08/1993 - 02/1999
623 Si 2259 CCM 158 HP 08/1993 - 06/1999
620 Ti Vitesse 1994 CCM 200 HP 05/1994 - 08/1998
618 i/Si 1850 CCM 115 HP 03/1996 - 02/1999
ACURA
VIGOR
Description Cylinder Capacity Horse Power Year
2.5 2451 CCM 190 HP 09/1991 - 09/1994

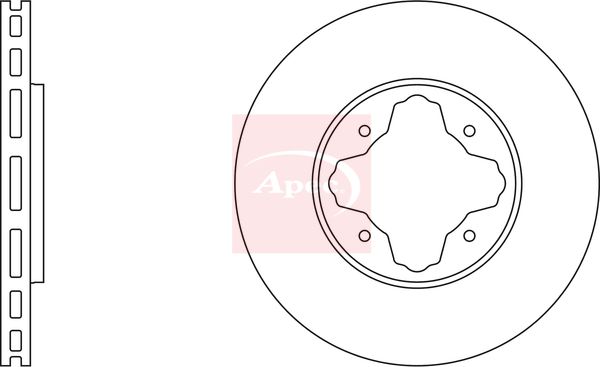

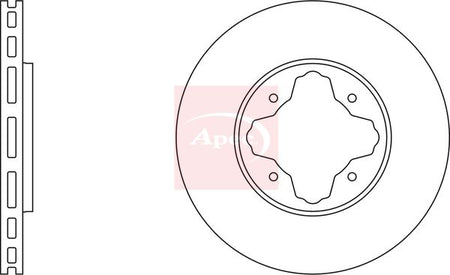

The Apec DSK694 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 282 mm outer diameter, 23 mm brake disc thickness, and 92 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 282
Brake Disc Thickness [mm] : 23
Height [mm] : 34
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 92
Number of Holes : 4
Test Mark : 90R-02C0349/1357
  • Vendor APEC
  • SKU DSK694
  • Barcode 5028906075958
  • HONDA : 45251SM4G00 45251SM4G01 45251SM4G02 45251SMAG02 45251SN7E00 45251SN7E50
  • ROVER : GBD90037 GBD90837 GBD90843
  • BLUE PRINT : ADH24339
  • BORG & BECK : BBD5070
  • BREMBO : 09.5804.10
  • DELPHI : BG2816
  • MINTEX : MDC819
  • National : NBD511
  • TEXTAR : 92081600
  • TRW : DF2679
