APEC

Apec DSK696 Brake Disc

SKU: DSK696

Your selected vehicle

Only 5 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£41.22 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO

GTV (916_)

Description	Cylinder Capacity	Horse Power	Year
2.0 T.SPARK 16V (916.C2__, 916C2C00)	1970 CCM	150 HP	06/1995 - 10/2005
2.0 T.SPARK 16V (916C2C)	1970 CCM	155 HP	09/1997 - 03/2003
2.0 JTS (916CXA00)	1970 CCM	165 HP	04/2003 - 10/2005

SPIDER (916_)

Description	Cylinder Capacity	Horse Power	Year
2.0 T.SPARK 16V (916S2C00)	1970 CCM	150 HP	06/1995 - 04/2005
2.0 T.SPARK 16V (916S2B)	1970 CCM	155 HP	05/1998 - 08/2000
2.0 JTS (916SXA00)	1970 CCM	165 HP	04/2003 - 04/2005

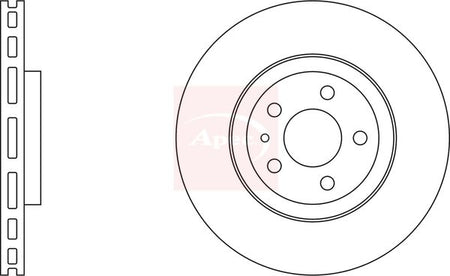

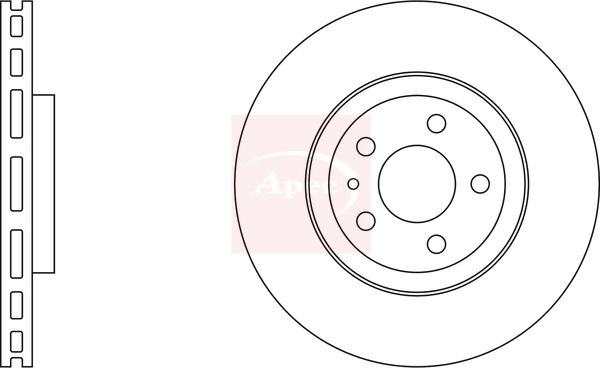

The Apec DSK696 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 284 mm outer diameter, 22 mm brake disc thickness, and 59 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 284

Brake Disc Thickness [mm] : 22

Height [mm] : 39

Bolt Hole Circle Ø [mm] : 98

Centering Diameter [mm] : 59

Number of Holes : 5

Test Mark : 90R-02C0448/0940

Apec DSK696 Brake Disc
