Apec DSK697 Brake Disc
Your selected vehicle
Regular price
£36.74
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

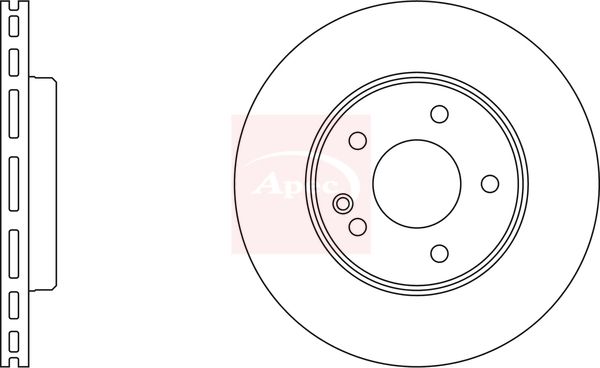

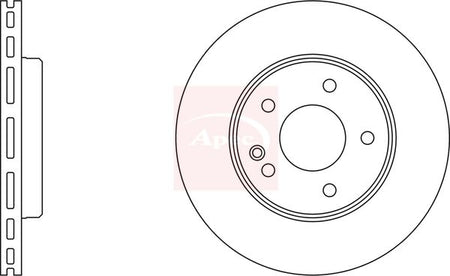

The Apec DSK697 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 284 mm outer diameter, 22 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Type :
Vented
Outer Diameter [mm] :
284
Brake Disc Thickness [mm] :
22
Height [mm] :
43
Bolt Hole Circle Ø [mm] :
112
Wheel Bolt Bore Diameter [mm] :
13
Centering Diameter [mm] :
67
Number of Holes :
5
Test Mark :
90R-02C0349/1357
- Vendor APEC
- SKU DSK697
- MERCEDES-BENZ : 2024210712 2024210912
- BLUE PRINT : ADU174321
- BORG & BECK : BBD5000
- BORG & BECK : BBD5054
- BOSCH : 0 986 478 186
- BOSCH : 0 986 478 301
- DELPHI : BG2768
- FEBI BILSTEIN : 05230
- FEBI BILSTEIN : 08129
- HELLA : 8DD 355 102-971
- MEYLE : 015 521 0035
- MEYLE : 015 521 0035/PD
- MINTEX : MDC741
- National : NBD527
- SKF : VKBD 80461 V2
- TEXTAR : 92059403
- TEXTAR : 92059405
- TRW : DF2656
- VALEO : 186185
- VALEO : 186280
- VALEO : 673441
