Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

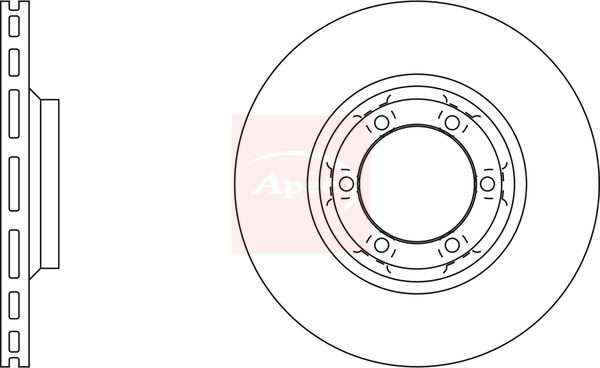

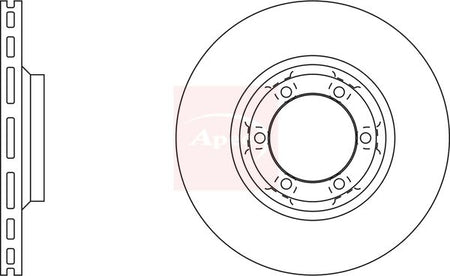

Apec DSK730 Brake Disc - 1
Apec DSK730 Brake Disc - 1
APEC

Apec DSK730 Brake Disc

SKU: DSK730
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£36.35 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MITSUBISHI
L 300 III Bus (P0_W, P1_W, P2_W, P3_W)
Description Cylinder Capacity Horse Power Year
2.5 D (P05W, P15W, P25W) 2477 CCM 69 HP 11/1986 - 05/2004
2.0 (P03W, P13W) 1997 CCM 90 HP 11/1986 - 05/2004
L200 (K3_T, K2_T, K1_T, K0_T)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD (K34T) 2477 CCM 87 HP 11/1992 - 08/1996
2.5 D 4WD (K24T) 2476 CCM 70 HP 12/1987 - 05/1993
2.0 4WD 1997 CCM 86 HP 02/1987 - 05/1994
PAJERO/SHOGUN   (L04_G, L14_G)
Description Cylinder Capacity Horse Power Year
2.5 TD (L044G, L049G) 2477 CCM 87 HP 04/1987 - 12/1991
2.5 TD (L044G, L049G) 2477 CCM 95 HP 11/1989 - 11/1990
3.0 V6 (L141G, L146G) 2972 CCM 141 HP 11/1988 - 11/1990
2.6 4WD (L042G, L047G) 2555 CCM 103 HP 01/1983 - 09/1987
PAJERO/SHOGUN Mk II Canvas Top (L04_G)
Description Cylinder Capacity Horse Power Year
2.6 (L042G, L047G) 2555 CCM 103 HP 01/1983 - 11/1990
2.5 TD (L044G, L049G) 2477 CCM 84 HP 05/1986 - 10/1989
2.5 TD (L044G, L049G) 2477 CCM 95 HP 11/1989 - 11/1990

The Apec DSK730 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 277 mm outer diameter, 22 mm brake disc thickness, and 87 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 277
Brake Disc Thickness [mm] : 22
Height [mm] : 45
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 87
Number of Holes : 6
  • Vendor APEC
  • SKU DSK730
  • Barcode 5028906076313
  • MITSUBISHI : HB403101 MB407038 MB407039
  • HYUNDAI : HB403101
  • BLUE PRINT : ADC44318
  • BORG & BECK : BBD5006
  • BOSCH : 0 986 478 635
  • BREMBO : 09.6817.10
  • DELPHI : BG2561
  • FTE : 9072493
  • MINTEX : MDC929
  • National : NBD364
  • SKF : VKBD 81126 V2
  • TEXTAR : 92074600
  • TRW : DF3031
  • VALEO : 186653
  • VALEO : 673598
