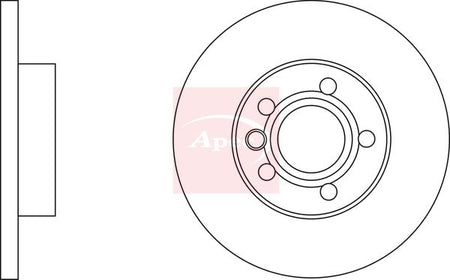

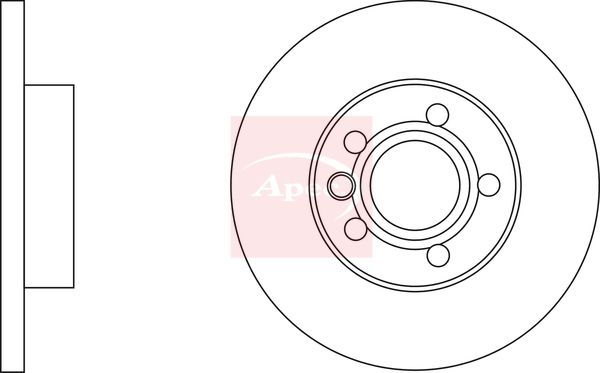

Apec DSK785 Brake Disc - 1
Apec DSK785 Brake Disc - 1
APEC

Apec DSK785 Brake Disc

SKU: DSK785
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£54.58 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VW
CALIFORNIA T4 Camper (7DJ, 7DK, 70J)
Description Cylinder Capacity Horse Power Year
2.4 D 2370 CCM 75 HP 05/1998 - 04/2002
TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,
Description Cylinder Capacity Horse Power Year
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.0 1968 CCM 84 HP 07/1990 - 04/2003
2.4 D 2370 CCM 75 HP 08/1997 - 04/2003
TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)
Description Cylinder Capacity Horse Power Year
2.0 1968 CCM 84 HP 07/1990 - 04/2003
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 07/1990 - 04/1998
2.4 D 2370 CCM 75 HP 08/1997 - 04/2003
TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,
Description Cylinder Capacity Horse Power Year
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 Syncro 2461 CCM 110 HP 08/1992 - 04/2003
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.5 TDI Syncro 2461 CCM 102 HP 01/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 07/1996 - 04/2003

The Apec DSK785 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 282 mm outer diameter, 18 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 282
Brake Disc Thickness [mm] : 18
Height [mm] : 55
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 68
Number of Holes : 5
Test Mark : 90R-02C0355/0594
  • Vendor APEC
  • SKU DSK785
  • Barcode 5028906076863
  • VW : 701615301G
  • APEC : SDK6236
  • BLUE PRINT : ADV184362
  • BORG & BECK : BBD4115
  • BOSCH : 0 986 478 870
  • BOSCH : 0 986 479 B54
  • BREMBO : 08.7132.10
  • DELPHI : BG3415
  • Fahren : FBD6236
  • FEBI BILSTEIN : 14104
  • HELLA : 8DD 355 127-321
  • MEYLE : 115 521 1036
  • MINTEX : MDC1046
  • NAPA : NBD5892
  • National : NBD932
  • SKF : VKBD 80681 S2
  • TEXTAR : 92083703
  • TRW : DF2810
  • VALEO : 186725
  • VALEO : 673078
