Apec DSK793 Brake Disc - 1
Apec DSK793 Brake Disc - 1
APEC

Apec DSK793 Brake Disc

SKU: DSK793
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£24.97 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
AVENSIS (_T22_)
Description Cylinder Capacity Horse Power Year
1.6 i (AT220_, AT220R) 1587 CCM 101 HP 09/1997 - 10/2000
1.8 i (AT221_, AT221R) 1762 CCM 110 HP 09/1997 - 10/2000
2.0 i (ST220_, ST220R) 1998 CCM 128 HP 09/1997 - 10/2000
2.0 TD (CT220_, CT220R) 1974 CCM 90 HP 09/1997 - 02/2003
2.0 D-4D (CDT220_, CDT220R) 1995 CCM 110 HP 10/1999 - 02/2003
1.6 VVT-i (ZZT220_, ZZT220R) 1598 CCM 110 HP 10/2000 - 02/2003
1.8 VVT-i (ZZT221_, ZZT221R) 1794 CCM 129 HP 10/2000 - 02/2003
2.0 VVT-i (AZT220_, AZT220R) 1998 CCM 150 HP 10/2000 - 02/2003
2.0 D-4D (CDT220) 1995 CCM 116 HP 09/2002 - 02/2003
AVENSIS Liftback (_T22_)
Description Cylinder Capacity Horse Power Year
1.6 i (AT220_, AT220R) 1587 CCM 101 HP 09/1997 - 10/2000
1.8 i (AT221_, AT221R) 1762 CCM 110 HP 09/1997 - 10/2000
2.0 i (ST220_, ST220R) 1998 CCM 128 HP 09/1997 - 10/2000
2.0 TD (CT220_, CT220R) 1974 CCM 90 HP 09/1997 - 02/2003
2.0 D-4D (CDT220_, CDT220R) 1995 CCM 110 HP 10/1999 - 02/2003
1.6 VVT-i (ZZT220_, ZZT220R) 1598 CCM 110 HP 10/2000 - 02/2003
1.8 VVT-i (ZZT221_, ZZT221R) 1794 CCM 129 HP 10/2000 - 02/2003
2.0 VVT-i (AZT220_, AZT220R) 1998 CCM 150 HP 10/2000 - 02/2003
2.0 D (CDT220_) 1995 CCM 115 HP 09/2002 - 02/2003
AVENSIS Estate (_T22_)
Description Cylinder Capacity Horse Power Year
1.6 i (AT220_, AT220R) 1587 CCM 101 HP 09/1997 - 10/2000
1.8 i (AT221_, AT221R) 1762 CCM 110 HP 09/1997 - 10/2000
2.0 i (ST220_, ST220R) 1998 CCM 128 HP 09/1997 - 10/2000
2.0 TD (CT220_, CT220R) 1974 CCM 90 HP 09/1997 - 02/2003
2.0 D-4D (CDT220_, CDT220R) 1995 CCM 110 HP 10/1999 - 02/2003
1.6 VVT-i (ZZT220_, ZZT220R) 1598 CCM 110 HP 07/2000 - 02/2003
2.0 VVT-i (AZT220_, AZT220R) 1998 CCM 150 HP 10/2000 - 02/2003
1.8 VVT-i (ZZT221_, ZZT221R) 1794 CCM 129 HP 10/2000 - 02/2003
2.0 D (CDT220_) 1995 CCM 115 HP 09/2002 - 02/2003

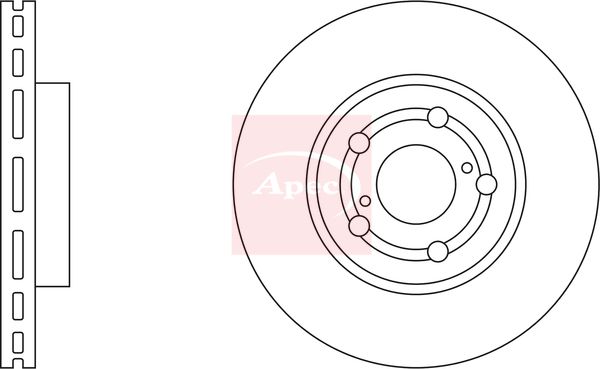

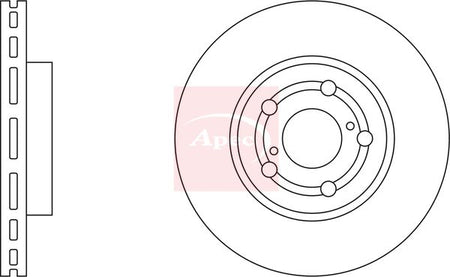

The Apec DSK793 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 260 mm outer diameter, 25 mm brake disc thickness, and 55 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 260
Brake Disc Thickness [mm] : 25
Height [mm] : 49
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 55
Number of Holes : 5
Test Mark : 90R-02C0349/0645
  • Vendor APEC
  • SKU DSK793
  • Barcode 5028906076948
  • TOYOTA : 4351205030 4351205031
  • BLUE PRINT : ADT343112
  • BORG & BECK : BBD4131
  • BOSCH : 0 986 478 451
  • DELPHI : BG3347
  • DELPHI : BG3347C
  • FEBI BILSTEIN : 26072
  • HELLA : 8DD 355 106-511
  • MEYLE : 30-15 521 0057
  • MINTEX : MDC1068
  • National : NBD989
  • SKF : VKBD 80818 V2
  • TEXTAR : 92096903
  • TRW : DF4046
  • VALEO : 186705
  • VALEO : 673352
