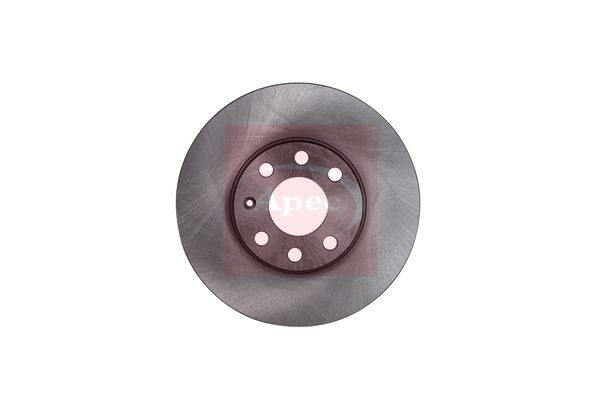

Apec DSK809 Brake Disc

SKU: DSK809
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£26.91 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

OPEL
ASTRA G Hatchback (T98)
Description Cylinder Capacity Horse Power Year
1.6 (F08, F48) 1598 CCM 75 HP 02/1998 - 09/2000
1.6 16V (F08, F48) 1598 CCM 101 HP 02/1998 - 01/2005
1.8 16V (F08, F48) 1796 CCM 116 HP 02/1998 - 09/2000
1.7 TD (F08, F48) 1699 CCM 68 HP 02/1998 - 08/2000
2.0 DI (F08, F48) 1995 CCM 82 HP 02/1998 - 01/2005
2.2 DTI (F08, F48) 2172 CCM 117 HP 09/2002 - 01/2005
1.4 16V (F08, F48) 1389 CCM 90 HP 02/1998 - 01/2005
2.0 DTI 16V (F08, F48) 1995 CCM 101 HP 08/1999 - 01/2005
1.7 DTI 16V (F08, F48) 1686 CCM 75 HP 02/2000 - 01/2005
1.6 (F08, F48) 1598 CCM 84 HP 09/2000 - 01/2005
1.8 16V (F08, F48) 1796 CCM 125 HP 09/2000 - 01/2005
ASTRA G Estate (T98)
Description Cylinder Capacity Horse Power Year
1.6 (F35) 1598 CCM 75 HP 02/1998 - 09/2000
1.6 16V (F35) 1598 CCM 101 HP 02/1998 - 07/2004
1.8 16V (F35) 1796 CCM 116 HP 02/1998 - 09/2000
1.7 TD (F35) 1699 CCM 68 HP 02/1998 - 08/2000
2.0 DI (F35) 1995 CCM 82 HP 02/1998 - 07/2004
2.2 DTI (F35) 2172 CCM 117 HP 09/2002 - 07/2004
1.4 16V (F35) 1389 CCM 90 HP 06/1998 - 07/2004
2.0 DTI 16V (F35) 1995 CCM 101 HP 08/1999 - 07/2004
1.7 DTI 16V (F35) 1686 CCM 75 HP 02/2000 - 07/2004
1.6 (F35) 1598 CCM 84 HP 09/2000 - 07/2004
1.8 16V (F35) 1796 CCM 125 HP 09/2000 - 07/2004
2.2 DTI (F35) 2172 CCM 125 HP 09/2002 - 07/2004
ASTRA G Saloon (T98)
Description Cylinder Capacity Horse Power Year
2.2 DTI (F69) 2172 CCM 117 HP 09/2002 - 01/2005
1.6 (F69) 1598 CCM 75 HP 09/1998 - 09/2000
1.6 16V (F69) 1598 CCM 101 HP 09/1998 - 01/2005
1.8 16V (F69) 1796 CCM 116 HP 09/1998 - 09/2000
2.0 DI (F69) 1995 CCM 82 HP 09/1998 - 01/2005
1.7 TD (F69) 1699 CCM 68 HP 09/1998 - 08/2000
1.4 16V (F69) 1389 CCM 90 HP 09/1998 - 01/2005
2.0 DTI 16V (F69) 1995 CCM 101 HP 08/1999 - 01/2005
1.7 DTI 16V (F69) 1686 CCM 75 HP 02/2000 - 01/2005
1.6 (F69) 1598 CCM 84 HP 09/2000 - 01/2005
1.8 16V (F69) 1796 CCM 125 HP 06/2000 - 01/2005
2.2 DTI (F69) 2172 CCM 125 HP 09/2002 - 01/2005
1.7 CDTI (F69) 1686 CCM 80 HP 04/2003 - 12/2009
ASTRA G Estate Van (F70)
Description Cylinder Capacity Horse Power Year
1.6 (F70) 1598 CCM 75 HP 01/1999 - 09/2000
1.7 TD (F70) 1699 CCM 68 HP 01/1999 - 04/2005
2.0 DI (F70) 1995 CCM 82 HP 01/1999 - 04/2005
1.6 (F70) 1598 CCM 84 HP 09/2000 - 04/2005
1.6 (F70) 1598 CCM 103 HP 02/2004 - 11/2004
1.7 DTI 16V (F70) 1686 CCM 75 HP 02/2000 - 04/2005
1.7 CDTi (F70) 1686 CCM 80 HP 07/2003 - 11/2004
2.0 DTI (F70) 1995 CCM 101 HP 09/2000 - 04/2005
1.6 LPG (F70) 1598 CCM 75 HP 01/1999 - 09/2000
1.6 LPG (F70) 1598 CCM 84 HP 12/2000 - 04/2005
ASTRA G Coupe (T98)
Description Cylinder Capacity Horse Power Year
1.6 16V (F07) 1598 CCM 101 HP 03/2000 - 05/2005
1.8 16V (F07) 1796 CCM 116 HP 03/2000 - 10/2000
1.6 16V (F07) 1598 CCM 103 HP 03/2000 - 05/2005
ASTRA G Convertible (T98)
Description Cylinder Capacity Horse Power Year
1.6 16V (F67) 1598 CCM 101 HP 03/2001 - 10/2005
1.6 (F67) 1598 CCM 103 HP 01/2003 - 10/2005
ASTRA H Van (L70)
Description Cylinder Capacity Horse Power Year
1.6 EcoTec (L70) 1598 CCM 103 HP 02/2004 - 11/2004
ASTRA G CLASSIC Caravan (F35)
Description Cylinder Capacity Horse Power Year
1.4 (F35) 1364 CCM 90 HP 10/2007 - 07/2009
1.7 CDTI 1686 CCM 80 HP 05/2004 - 07/2009
1.4 16V 1389 CCM 90 HP 07/2004 - 09/2007
1.6 1598 CCM 103 HP 02/2006 - 07/2009
1.6 1598 CCM 101 HP 06/2004 - 02/2006
ASTRA G CLASSIC (T98)
Description Cylinder Capacity Horse Power Year
1.4 16V (F08, F48) 1389 CCM 90 HP 05/2004 - 07/2009
1.6 16V (F08, F48) 1598 CCM 101 HP 05/2004 - 02/2006
1.6 (F08, F48) 1598 CCM 103 HP 03/2006 - 06/2008
1.7 CDTI (F08, F48) 1686 CCM 80 HP 06/2004 - 07/2009
ASTRA G CLASSIC Saloon (T98)
Description Cylinder Capacity Horse Power Year
1.6 16V (F69) 1598 CCM 101 HP 03/2004 - 01/2008
1.4 16V (F69) 1389 CCM 90 HP 05/2004 - 07/2009
VAUXHALL
ASTRA Mk IV (G) Saloon (T98)
Description Cylinder Capacity Horse Power Year
1.4 16V 1389 CCM 90 HP 09/1998 - 05/2005
1.6 1598 CCM 75 HP 09/1998 - 09/2000
1.6 16V 1598 CCM 101 HP 09/1998 - 05/2005
1.8 16V 1796 CCM 116 HP 02/1998 - 07/2004
1.7 TD 1700 CCM 68 HP 09/1998 - 08/2000
2.0 DI 1995 CCM 82 HP 02/1998 - 07/2004
2.0 DTI 16V 1995 CCM 101 HP 02/1998 - 07/2004
1.7 DTI 16V 1686 CCM 75 HP 02/2000 - 05/2005
1.6 1598 CCM 84 HP 09/2000 - 05/2005
1.8 16V 1796 CCM 125 HP 02/1998 - 07/2004
1.7 CDTI 16V 1686 CCM 80 HP 04/2003 - 05/2005
1.6 Dualfuel 1598 CCM 85 HP 09/2002 - 05/2005
1.8 16V Dualfuel 1796 CCM 118 HP 02/1998 - 07/2004
1.6 Dualfuel 1598 CCM 86 HP 07/2000 - 05/2005
ASTRA Mk IV (G) Hatchback (T98)
Description Cylinder Capacity Horse Power Year
1.4 16V (F08, F48) 1389 CCM 90 HP 02/1998 - 05/2005
1.6 (F08, F48) 1598 CCM 75 HP 02/1998 - 09/2000
1.6 16V (F08, F48) 1598 CCM 101 HP 02/1998 - 05/2005
1.8 16V (F08, F48) 1796 CCM 116 HP 02/1998 - 09/2000
1.7 TD (F08, F48) 1700 CCM 68 HP 02/1998 - 08/2000
2.0 DI (F48) 1995 CCM 82 HP 02/1998 - 05/2005
2.0 DTI 16V (F48) 1995 CCM 101 HP 08/1999 - 05/2005
1.7 DTI 16V (F08, F48) 1686 CCM 75 HP 02/2000 - 05/2005
1.6 (F08, F48) 1598 CCM 84 HP 09/2000 - 05/2005
1.8 16V (F08, F48) 1796 CCM 125 HP 09/2000 - 05/2005
1.7 CDTI 16V (F08, F48) 1686 CCM 80 HP 04/2003 - 05/2005
1.6 Dualfuel (F08, F48) 1598 CCM 85 HP 09/2002 - 05/2005
ASTRA Mk IV (G) Estate (T98)
Description Cylinder Capacity Horse Power Year
1.4 16V 1389 CCM 90 HP 02/1998 - 05/2005
1.6 1598 CCM 75 HP 03/1998 - 04/2004
1.6 16V 1598 CCM 101 HP 03/1998 - 04/2004
1.8 16V 1796 CCM 116 HP 02/1998 - 08/2000
1.7 TD 1700 CCM 68 HP 02/1998 - 08/2000
2.0 DI 1995 CCM 82 HP 03/1998 - 04/2004
1.6 1598 CCM 103 HP 12/2002 - 05/2005
1.7 DTI 16V 1686 CCM 75 HP 02/2000 - 05/2005
2.0 DTI 16V 1995 CCM 101 HP 03/1998 - 04/2004
1.6 1598 CCM 84 HP 03/1998 - 04/2004
1.8 16V 1796 CCM 125 HP 09/2000 - 05/2005
1.7 CDTI 16V 1686 CCM 80 HP 04/2003 - 05/2005
1.6 Dualfuel 1598 CCM 85 HP 03/1998 - 04/2004
1.8 16V Dualfuel 1796 CCM 118 HP 09/2002 - 05/2005
ASTRA Mk IV (G) Coupe (T98)
Description Cylinder Capacity Horse Power Year
1.6 16V 1598 CCM 103 HP 03/2000 - 08/2005
ASTRA Mk IV (G) Convertible (T98)
Description Cylinder Capacity Horse Power Year
1.6 16V 1598 CCM 103 HP 03/2003 - 10/2005
1.6 16V 1598 CCM 101 HP 03/2001 - 10/2005
ASTRAVAN Mk IV (G) Estate Van (T98)
Description Cylinder Capacity Horse Power Year
1.6 i 1598 CCM 75 HP 08/1998 - 09/2000
1.7 TD 1700 CCM 68 HP 08/1998 - 08/2006
2.0 DI 1995 CCM 82 HP 08/1998 - 08/2006
1.6 i 1598 CCM 84 HP 09/2000 - 08/2006
1.7 CDTI 1686 CCM 80 HP 07/2003 - 08/2006
2.0 DTI 1995 CCM 100 HP 04/2004 - 08/2006
1.7 DTI 16V 1686 CCM 75 HP 04/2001 - 08/2006
1.6 Dualfuel 1598 CCM 101 HP 07/2000 - 08/2005
1.4 16V 1389 CCM 90 HP 09/2000 - 05/2005
1.6 Dualfuel 1598 CCM 75 HP 02/1998 - 12/2000
1.6 Dualfuel 1598 CCM 84 HP 09/2000 - 10/2004
1.6 Dualfuel 16V 1598 CCM 105 HP 10/2004 - 12/2005
ASTRAVAN Mk V (H) Estate Van (A04)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 103 HP From 03/2005
1.7 CDTi 1686 CCM 80 HP 03/2005 - 07/2006
CHEVROLET
CORSA Saloon
Description Cylinder Capacity Horse Power Year
1.7 D 1686 CCM 60 HP 08/2000 - 07/2002

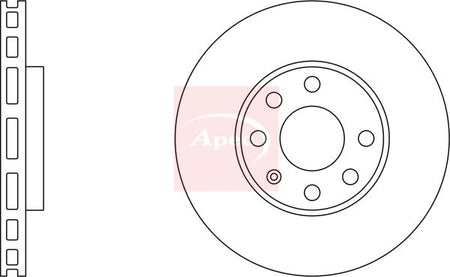

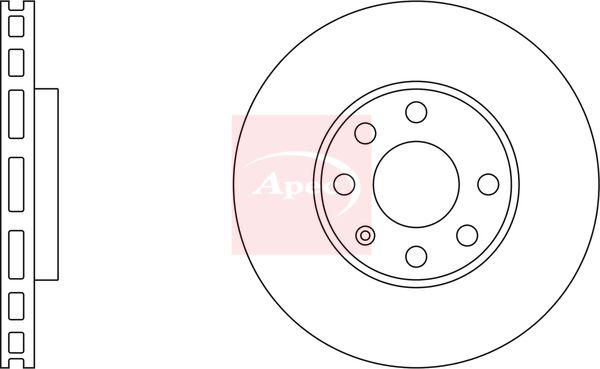

The Apec DSK809 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 256 mm outer diameter, 24 mm brake disc thickness, and 60 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 256
Brake Disc Thickness [mm] : 24
Height [mm] : 41
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 60
Number of Holes : 4
Test Mark : 90R-02C0349/0567
  • Vendor APEC
  • SKU DSK809
  • Barcode 5028906077105
  • OPEL : 569059
  • VAUXHALL : 90497879 9117677
  • APEC : SDK6004
  • BORG & BECK : BBD4073
  • BOSCH : 0 986 478 881
  • BOSCH : 0 986 479 R76
  • DELPHI : BG3404
  • DELPHI : BG3404C
  • Fahren : FBD6004
  • FEBI BILSTEIN : 17210
  • HELLA : 8DD 355 106-051
  • MEYLE : 615 521 0009
  • MEYLE : 615 521 0009/PD
  • MINTEX : MDC1049C
  • NAPA : NBD5041
  • National : NBD924
  • SKF : VKBD 80511 V2
  • TEXTAR : 92091800
  • TEXTAR : 92091803
  • TRW : DF4042
  • VALEO : 186592
  • VALEO : 886592
