Apec DSK834 Brake Disc - 1
Apec DSK834 Brake Disc - 1
APEC

Apec DSK834 Brake Disc

SKU: DSK834
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£28.34 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
ESPACE Mk III (JE0_)
Description Cylinder Capacity Horse Power Year
2.0 (JE0A) 1998 CCM 114 HP 11/1996 - 10/2000
3.0 (JE0D) 2963 CCM 167 HP 11/1996 - 10/1998
2.2 12V TD (JE0E, JE0H, JE0P) 2188 CCM 113 HP 11/1996 - 10/2000
2.2 D 2188 CCM 114 HP 11/1997 - 01/2000
LAGUNA I (B56_, 556_)
Description Cylinder Capacity Horse Power Year
3.0 (B56E, B565, B56R) 2963 CCM 167 HP 11/1993 - 03/2001
2.2 dT (B569) 2188 CCM 113 HP 03/1996 - 03/2001
3.0 24V (B56V) 2946 CCM 190 HP 03/1997 - 03/2001
LAGUNA I Estate (K56_)
Description Cylinder Capacity Horse Power Year
2.2 dT (K569) 2188 CCM 113 HP 03/1996 - 03/2001
3.0 (K56R, K565) 2963 CCM 167 HP 02/1996 - 03/2001
3.0 24V (K56V) 2946 CCM 190 HP 03/1997 - 03/2001
SAFRANE   (B54_)
Description Cylinder Capacity Horse Power Year
2.5 dT (B548) 2499 CCM 113 HP 12/1992 - 07/1996
3.0 2975 CCM 170 HP 02/1993 - 06/1996
SAFRANE Mk II (B54_)
Description Cylinder Capacity Horse Power Year
2.5 20V (B54F) 2435 CCM 165 HP 07/1996 - 12/2000
SCÉNIC I MPV (JA0/1_, FA0_)
Description Cylinder Capacity Horse Power Year
2.0 16V RX4 1998 CCM 139 HP 06/2000 - 08/2003
1.9 dCi RX4 1870 CCM 102 HP 11/2000 - 08/2003
1.9 dCi RX4 1870 CCM 101 HP 12/2002 - 08/2003

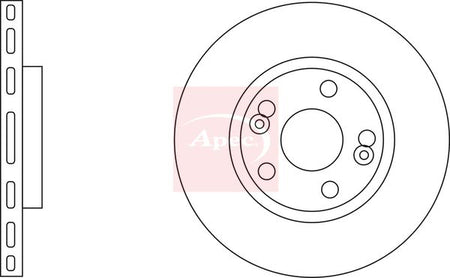

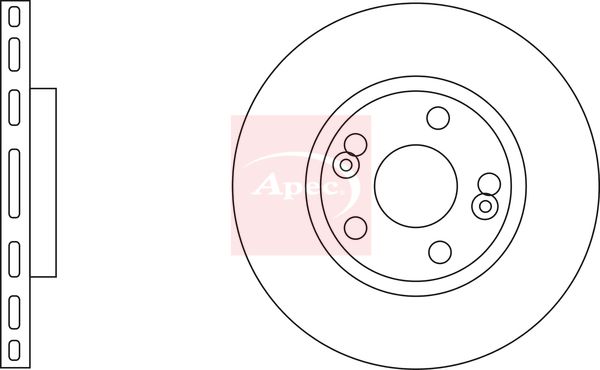

The Apec DSK834 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 280 mm outer diameter, 24 mm brake disc thickness, and 61 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 24
Height [mm] : 44
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 61
Number of Holes : 5
Test Mark : 90R-02C0349/0006
  • Vendor APEC
  • SKU DSK834
  • Barcode 5028906077358
  • RENAULT : 7700802231 7700830283 7701204305 7701205231 7701205843 7701206198
  • BLUE PRINT : ADR164306
  • BORG & BECK : BBD5020
  • BOSCH : 0 986 478 734
  • BREMBO : 09.8137.11
  • BREMBO : 09.8137.14
  • BREMBO : 09.8137.75
  • DELPHI : BG2697
  • FEBI BILSTEIN : 12097
  • HELLA : 8DD 355 127-741
  • MEYLE : 16-15 521 0016
  • MINTEX : MDC778
  • National : NBD491
  • SKF : VKBD 80210 V2
  • TEXTAR : 92113800
  • TEXTAR : 92113803
  • TRW : DF4109
  • VALEO : 186600
  • VALEO : 673343
