APEC

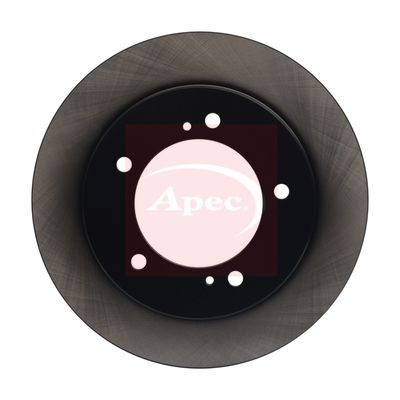

Apec DSK943 Brake Disc

SKU: DSK943
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£29.73 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI
JIMNY Open Off-Road Vehicle (SN)
Description Cylinder Capacity Horse Power Year
1.3 16V 4WD (SN413, JB33) 1298 CCM 80 HP From 09/1998
1.3 (SN413) 1328 CCM 86 HP From 08/2004
JIMNY Closed Off-Road Vehicle (SN)
Description Cylinder Capacity Horse Power Year
1.3 16V (SN413, JB33) 1298 CCM 80 HP From 09/1998
1.3 16V 4WD (SN413, JB33) 1298 CCM 80 HP From 09/1998
1.3 16V 4WD (SN413, JB43) 1328 CCM 82 HP From 02/2001
1.3 16V 4x4 (SN413, JB43) 1328 CCM 86 HP From 08/2005
SAMURAI Closed Off-Road Vehicle (SJ_)
Description Cylinder Capacity Horse Power Year
1.3 All-wheel Drive (SJ413, SJ70, SJ80) 1298 CCM 70 HP 11/1988 - 12/2004
1.3 All-wheel Drive (SJ413) 1324 CCM 64 HP 11/1988 - 12/2004
SAMURAI Open Off-Road Vehicle (SJ_)
Description Cylinder Capacity Horse Power Year
1.3 (SJ413) 1298 CCM 70 HP 08/1992 - 08/1998
VITARA / ESCUDO (ET, TA, TD)
Description Cylinder Capacity Horse Power Year
1.6 (TA, TA01) 1590 CCM 80 HP 01/1991 - 01/1998
1.6 All-wheel Drive (SE416, TA01) 1589 CCM 82 HP 07/1988 - 12/1995
1.6 i 16V All-wheel Drive (ET, TA02, SE416) 1590 CCM 97 HP 07/1990 - 03/1998
1.6 (SE 416) 1590 CCM 95 HP 02/1991 - 03/1998
1.6 All-wheel Drive (SE416, TA01) 1590 CCM 75 HP 10/1988 - 12/1998
VITARA Cabrio (ET, TA)
Description Cylinder Capacity Horse Power Year
1.6 (TA01, SE416) 1589 CCM 80 HP 07/1988 - 01/1995
1.6 i 16V (TA02, SE416) 1590 CCM 97 HP 07/1990 - 03/1999
1.6 (SE416) 1589 CCM 75 HP 01/1990 - 12/1993
X-90 (EL)
Description Cylinder Capacity Horse Power Year
1.6 i 16V 4x4 (SZ416) 1590 CCM 97 HP 09/1995 - 12/1997
1.6 i 16V (SZ416) 1590 CCM 97 HP 09/1995 - 12/1997

The Apec DSK943 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 289 mm outer diameter, 10 mm brake disc thickness, and 107 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 289
Brake Disc Thickness [mm] : 10
Height [mm] : 46
Bolt Hole Circle Ø [mm] : 140
Centering Diameter [mm] : 107
Number of Holes : 5
Test Mark : 90R-02C 01275/37685
  • Vendor APEC
  • SKU DSK943
  • Barcode 5028906078447
  • SUZUKI : 5521160A00 96058796
  • CHEVROLET : 96058796
  • APEC : SDK6193
  • BLUE PRINT : ADK84305
  • BORG & BECK : BBD5028
  • BOSCH : 0 986 478 539
  • BREMBO : 08.5266.10
  • DELPHI : BG2584
  • Fahren : FBD6193
  • FEBI BILSTEIN : 10869
  • HELLA : 8DD 355 103-611
  • HELLA : 8DD 355 117-941
  • MEYLE : 33-15 521 0000
  • MINTEX : MDC747
  • NAPA : NBD5018
  • National : NBD259
  • SKF : VKBD 80399 S2
  • TEXTAR : 92066003
  • TRW : DF2588
  • VALEO : 186504
