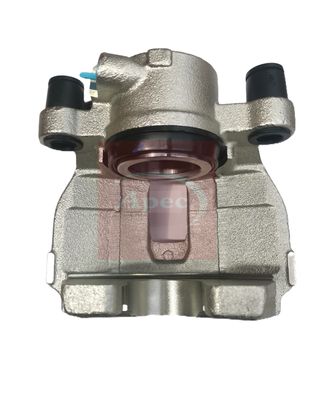

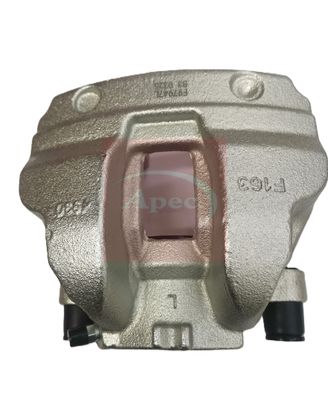

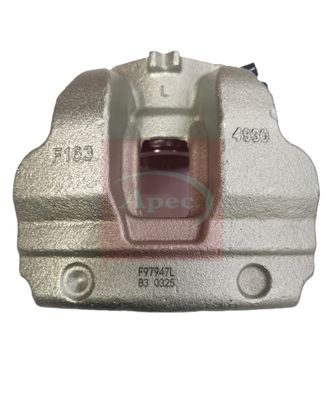

Apec LCA1609N Brake Caliper

SKU: LCA1609N

Your selected vehicle

In stock

Orders placed by 17:00 are usually dispatched the same working day

£62.88 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO

XC90 II (256)

Description	Cylinder Capacity	Horse Power	Year
T6 AWD	1969 CCM	320 HP	09/2014 - 12/2018
D5 AWD	1969 CCM	224 HP	09/2014 - 12/2016
T8 Hybrid AWD	1969 CCM	407 HP	06/2015 - 12/2018
D4	1969 CCM	190 HP	06/2015 - 12/2018
D4 AWD	1969 CCM	190 HP	10/2015 - 12/2018
T5 AWD	1969 CCM	254 HP	06/2015 - 12/2021
T8 Hybrid AWD	1969 CCM	405 HP	06/2015 - 12/2022
D5 AWD	1969 CCM	235 HP	03/2016 - 12/2019
T5 AWD	1969 CCM	249 HP	02/2016 - 12/2018
T6 AWD	1969 CCM	310 HP	10/2017 - 12/2021
T5 AWD	1969 CCM	250 HP	10/2017 - 12/2020
B5 Mild-Hybrid AWD	1969 CCM	235 HP	From 04/2019

The Apec LCA1609N Brake Caliper is a replacement braking-system component that forms part of the mechanism that applies or releases braking force. Its catalogue specification records ATE brake-system specification, vented disc construction, 60 mm piston diameter 1, and front axle left fitting position. Confirm the reference, brake-system specification, fitting position, connections and vehicle application before fitting; installation and bleeding should follow the vehicle manufacturer's procedure.

Function : Brake Caliper

Brake System : ATE

Brake Disc Type : Vented

Piston Diameter 1 [mm] : 60

for brake disc thickness [mm] : 30

for OE number : 36010012

Article number of recommended accessories : BSC1

Article number of recommended accessories : BSC4

Fitting Position : Front Axle Left
