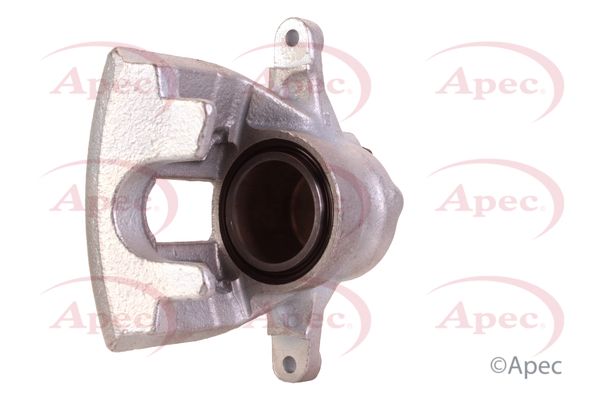

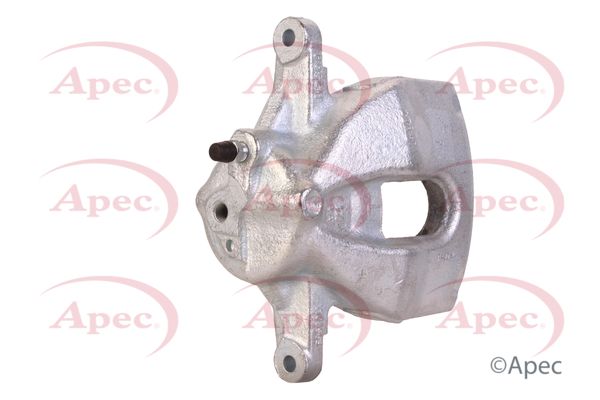

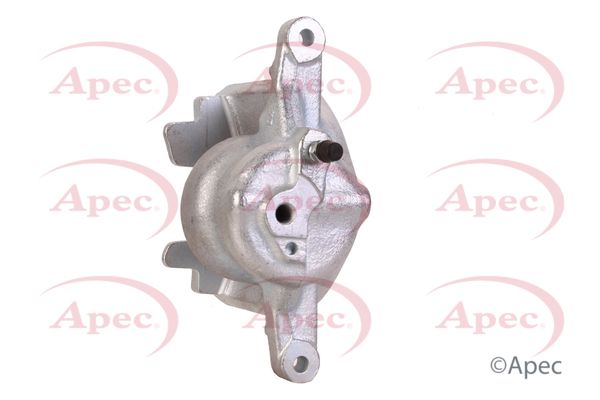

Apec LCA688 Brake Caliper

SKU: LCA688

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£99.78 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

AURIS (_E15_)

Description	Cylinder Capacity	Horse Power	Year
1.4 D-4D (NDE150_, NDE150R)	1364 CCM	90 HP	03/2007 - 09/2012
1.6 (ZRE151_, ZRE151R)	1598 CCM	124 HP	03/2007 - 09/2012
1.4 (ZZE150_, ZZE150R)	1398 CCM	97 HP	03/2007 - 09/2012
1.8 (ZRE152)	1798 CCM	136 HP	10/2006 - 09/2012
1.33 Dual-VVTi (NRE150_, NRE150R)	1329 CCM	101 HP	05/2009 - 09/2012
1.6 (ZRE151_, ZRE151R)	1598 CCM	132 HP	05/2009 - 09/2012
1.8 Hybrid (ZWE150_, ZWE150R)	1798 CCM	136 HP	09/2010 - 09/2012
1.33 Dual-VVTi (NRE150_, NRE150R)	1329 CCM	99 HP	01/2010 - 09/2012

The Apec LCA688 Brake Caliper is a replacement braking-system component that forms part of the mechanism that applies or releases braking force. Its catalogue specification records in front of axle fitting position, Bosch brake-system specification, vented disc construction, and brake Caliper (1 piston). Confirm the reference, brake-system specification, fitting position, connections and vehicle application before fitting; installation and bleeding should follow the vehicle manufacturer's procedure.

Function : Brake Caliper

Fitting Position : in front of axle

Brake System : Bosch

Brake Disc Type : Vented

Brake Caliper Type : Brake Caliper (1 piston)

Piston Diameter 1 [mm] : 57

for brake disc thickness [mm] : 26

for brake disc diameter [mm] : 273

Material : Grey Cast Iron

Article number of recommended accessories : BBS6

Article number of recommended accessories : BSC1
