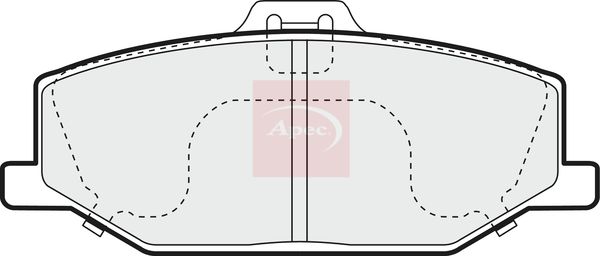

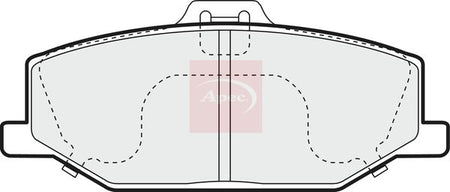

Apec PAD1123 Brake Pad Set, disc brake - 1
Apec PAD1123 Brake Pad Set, disc brake - 2
Apec PAD1123 Brake Pad Set, disc brake - 3
Apec PAD1123 Brake Pad Set, disc brake - 4
Apec PAD1123 Brake Pad Set, disc brake - 5
Apec PAD1123 Brake Pad Set, disc brake - 1
Apec PAD1123 Brake Pad Set, disc brake - 2
Apec PAD1123 Brake Pad Set, disc brake - 3
Apec PAD1123 Brake Pad Set, disc brake - 4
Apec PAD1123 Brake Pad Set, disc brake - 5
APEC

Apec PAD1123 Brake Pad Set, disc brake

SKU: PAD1123
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£15.80 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI
JIMNY Open Off-Road Vehicle (SN)
Description Cylinder Capacity Horse Power Year
1.3 16V 4WD (SN413, JB33) 1298 CCM 80 HP From 09/1998
1.3 (SN413) 1328 CCM 86 HP From 08/2004
1.3 4WD (SN413) 1328 CCM 86 HP From 03/2013
JIMNY Closed Off-Road Vehicle (SN)
Description Cylinder Capacity Horse Power Year
1.3 16V (SN413, JB33) 1298 CCM 80 HP From 09/1998
1.3 16V 4WD (SN413, JB33) 1298 CCM 80 HP From 09/1998
1.3 16V 4WD (SN413, JB43) 1328 CCM 82 HP From 02/2001
1.3 16V 4x4 (SN413, JB43) 1328 CCM 86 HP From 08/2005
1.3 4WD (SN413) 1328 CCM 85 HP From 05/2014

The Apec PAD1123 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Sumitomo brake-system specification, test mark 90R - 01704/034, not prepared for wear warning indicator, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Sumitomo
Width [mm] : 110
Height 1 [mm] : 41
Thickness [mm] : 15
WVA Number : 21142
Test Mark : 90R - 01704/034
Wear Warning Contact : not prepared for wear warning indicator
Fitting Position : Front Axle
Article number of recommended accessories : KIT1113
  • Vendor APEC
  • SKU PAD1123
  • Barcode 5028906008222
  • SUZUKI : 5520081A10 5520081A10000 5520081A30 5520081A31000 5581057M00
  • APEC : PD3324
  • BLUE PRINT : ADK84224
  • BLUE PRINT : ADK84242
  • BORG & BECK : BBP1524
  • BOSCH : 0 986 460 935
  • BREMBO : P 79 001
  • DELPHI : LP3657
  • DELPHI : LP527
  • Fahren : FBP3324
  • FEBI BILSTEIN : 116419
  • FEBI BILSTEIN : 16655
  • HELLA : 8DB 355 006-161
  • MEYLE : 025 211 4215
  • MINTEX : MDB1318
  • NAPA : NBP1704
  • National : NP2817
  • SKF : VKBP 80457
  • TEXTAR : 2114202
  • VALEO : 598021
