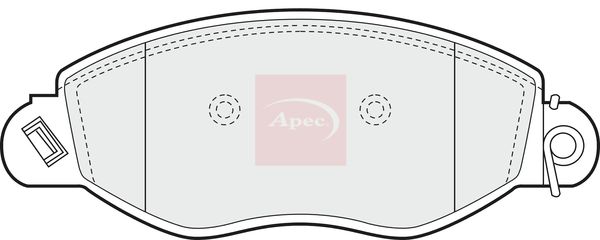

Apec PAD1183 Brake Pad Set, disc brake - 1
Apec PAD1183 Brake Pad Set, disc brake - 2
Apec PAD1183 Brake Pad Set, disc brake - 3
Apec PAD1183 Brake Pad Set, disc brake - 4
Apec PAD1183 Brake Pad Set, disc brake - 5
Apec PAD1183 Brake Pad Set, disc brake - 1
Apec PAD1183 Brake Pad Set, disc brake - 2
Apec PAD1183 Brake Pad Set, disc brake - 3
Apec PAD1183 Brake Pad Set, disc brake - 4
Apec PAD1183 Brake Pad Set, disc brake - 5
APEC

Apec PAD1183 Brake Pad Set, disc brake

SKU: PAD1183
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£31.04 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (F_E_, F_F_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi (F_E_, F_F_) 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi (F_F_, F_E_, F_G_) 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT TOURNEO Bus (FC_ _)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 125 HP 03/2002 - 03/2006
2.0 1998 CCM 75 HP 06/2000 - 08/2003
2.0 1998 CCM 101 HP 06/2000 - 03/2005

The Apec PAD1183 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Bosch brake-system specification, with bolts, test mark 90R - 02A1053/0237, and with acoustic wear warning. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Bosch
Number of wear indicators [per axle] : 2
Supplementary Article/Supplementary Info 2 : with bolts
Width [mm] : 169
Height 1 [mm] : 64
Thickness [mm] : 18
WVA Number : 23840
Test Mark : 90R - 02A1053/0237
Wear Warning Contact : with acoustic wear warning
  • Vendor APEC
  • SKU PAD1183
  • Barcode 5028906008826
  • FORD : 1144288 1318147 1415168 1465168 1C152K021AD 1C1J2K021AA 1C1J2K021AB 1C1J2K021AC 4095132 4114749
  • APEC : PD3051
  • BLUE PRINT : ADF124236
  • BORG & BECK : BBP1714
  • BOSCH : 0 986 494 037
  • BREMBO : P 24 053
  • DELPHI : LP1583
  • Fahren : FBP3051
  • FEBI BILSTEIN : 16424
  • HELLA : 8DB 355 019-451
  • MEYLE : 025 234 3418/PD
  • MEYLE : 025 234 3418/W
  • MINTEX : MDB2078
  • NAPA : NBP1256
  • National : NP2043
  • SKF : VKBP 80300 A
  • TEXTAR : 2343401
  • TRW : GDB1461
  • VALEO : 301547
  • VALEO : 301547A
  • VALEO : 598547
  • VALEO : 873577
