APEC

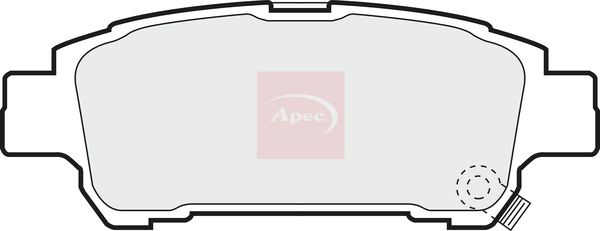

Apec PAD1238 Brake Pad Set, disc brake

SKU: PAD1238
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£24.88 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
ALPHARD I (_H1_)
Description Cylinder Capacity Horse Power Year
2.4 Hybrid 4WD (ATH10W) 2362 CCM 159 HP 09/2003 - 04/2008
3.0 (MNH10) 2995 CCM 220 HP 04/2003 - 04/2008
3.0 4WD (MNH15W) 2995 CCM 220 HP 04/2003 - 04/2008
2.4 (ANH10W) 2362 CCM 159 HP 09/2003 - 04/2008
2.4 4WD (ANH15W) 2362 CCM 159 HP 09/2003 - 04/2008
AVENSIS VERSO (_M2_)
Description Cylinder Capacity Horse Power Year
2.0 VVT-i (ACM20_, ACM20R) 1998 CCM 150 HP 08/2001 - 11/2009
2.0 D (CLM20_, CLM20R) 1995 CCM 116 HP 08/2001 - 08/2005
PREVIA / ESTIMA II (_R3_)
Description Cylinder Capacity Horse Power Year
2.4 (ACR30) 2362 CCM 156 HP 02/2000 - 02/2006
2.0 D-4D (CLR30_, CLR30R) 1995 CCM 116 HP 03/2001 - 01/2006
3.0 (MCR30W) 2995 CCM 220 HP 08/2000 - 12/2005
3.0 4WD (MCR40W) 2995 CCM 220 HP 02/2000 - 12/2005
2.4 (ACR30) 2362 CCM 170 HP 02/2000 - 01/2006

The Apec PAD1238 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Sumitomo brake-system specification, test mark 90R - 01118/355, rear axle fitting position, and Front-Wheel Drive drive type. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Sumitomo
Number of wear indicators [per axle] : 2
Width [mm] : 112
Height 1 [mm] : 43
Thickness [mm] : 16
WVA Number : 23646
Test Mark : 90R - 01118/355
Wear Warning Contact : with acoustic wear warning
Fitting Position : Rear Axle
for article number : DSK2333
Drive Type : Front-Wheel Drive
  • Vendor APEC
  • SKU PAD1238
  • Barcode 5028906009373
  • TOYOTA : 0446028040 0446628030 0446628040 0446628050 0446628070 0446628080 0446644010 04466YZZE1 446628030 446628040 446628070 446628080
  • APEC : PD3545
  • BLUE PRINT : ADT342119
  • BORG & BECK : BBP1838
  • BOSCH : 0 986 424 762
  • BREMBO : P 83 056
  • DELPHI : LP1710
  • Fahren : FBP3545
  • FEBI BILSTEIN : 170271
  • HELLA : 8DB 355 010-311
  • MEYLE : 025 236 4616/W
  • MINTEX : MDB2115
  • NAPA : NBP1732
  • National : NP2989
  • SKF : VKBP 91075 A
  • TEXTAR : 2364601
  • TRW : GDB3249
  • VALEO : 301542
  • VALEO : 598542
