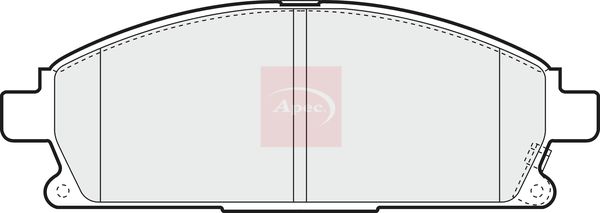

Apec PAD1311 Brake Pad Set, disc brake

SKU: PAD1311

Your selected vehicle

In stock

Orders placed by 17:00 are usually dispatched the same working day

£32.46 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN

ELGRAND (E50)

Description	Cylinder Capacity	Horse Power	Year
3.2 D (AVE50)	3153 CCM	150 HP	10/1995 - 08/2001
3.2 D 4x4 (AVWE50)	3153 CCM	150 HP	10/1995 - 08/2001
3.0 D AWD (ATWE50)	2953 CCM	154 HP	08/1999 - 08/2000
3.5 AWD (APWE50)	3498 CCM	241 HP	08/2000 - 04/2002
3.0 D AWD	2953 CCM	170 HP	08/1999 - 04/2002
3.0 D (ATE50)	2953 CCM	170 HP	08/1999 - 04/2002

ELGRAND (E51)

Description	Cylinder Capacity	Horse Power	Year
3.5 (E51)	3498 CCM	241 HP	05/2002 - 12/2010
3.5 AWD (NE51)	3498 CCM	241 HP	05/2002 - 12/2010
2.5 (ME51)	2495 CCM	186 HP	12/2004 - 12/2010
2.5 AWD (MNE51)	2495 CCM	186 HP	12/2004 - 12/2010

SERENA (C24)

Description	Cylinder Capacity	Horse Power	Year
2.5 DCi SGX (VC24)	2488 CCM	150 HP	06/1999 - 09/2005
2.5 DCi SGX 4x4 (VNC24)	2488 CCM	150 HP	06/1999 - 09/2005

TERRANO II (R50)

Description	Cylinder Capacity	Horse Power	Year
3.2 TD 4WD	3153 CCM	150 HP	09/1995 - 12/2004
3.0 DDTi 4WD	2953 CCM	170 HP	09/1999 - 12/2004

TERRANO REGULUS (R50)

Description	Cylinder Capacity	Horse Power	Year
3.3 4WD (R50)	3275 CCM	170 HP	08/1996 - 12/2001
3.2 TD 4WD (JRR50W)	3153 CCM	150 HP	08/1996 - 12/1998

X-TRAIL I (T30)

Description	Cylinder Capacity	Horse Power	Year
2.0 4x4	1998 CCM	140 HP	07/2001 - 09/2007
2.2 Di 4x4	2184 CCM	114 HP	07/2001 - 09/2007
2.5 4x4	2488 CCM	165 HP	09/2002 - 09/2007
2.2 dCi 4x4	2184 CCM	136 HP	06/2001 - 09/2007
2.0	1998 CCM	140 HP	07/2001 - 09/2007
2.2 dCi	2184 CCM	136 HP	12/2003 - 09/2007
2.0	1998 CCM	150 HP	09/2001 - 01/2013
2.5 4x4	2488 CCM	179 HP	11/2002 - 01/2013
2.0 4x4	1998 CCM	150 HP	09/2001 - 01/2013
2.2 DCi	2184 CCM	114 HP	10/2004 - 01/2013
2.2 DCi FWD	2184 CCM	114 HP	06/2001 - 09/2004
2.5 4x4	2488 CCM	182 HP	09/2001 - 02/2007

The Apec PAD1311 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Sumitomo brake-system specification, test mark 90R - 01112/190, with acoustic wear warning, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake

Brake System : Sumitomo

Number of wear indicators [per axle] : 4

Width [mm] : 159

Height 1 [mm] : 56

Thickness [mm] : 16

WVA Number : 23420

Test Mark : 90R - 01112/190

Wear Warning Contact : with acoustic wear warning

Fitting Position : Front Axle

APEC : PD3186
BLUE PRINT : ADN142115
BLUE PRINT : ADN142123
BORG & BECK : BBP1820
BOSCH : 0 986 424 715
BOSCH : 0 986 424 722
BREMBO : P 56 040
DELPHI : LP1659
Fahren : FBP3186
FEBI BILSTEIN : 170241
HELLA : 8DB 355 009-661
MEYLE : 025 234 2016/PD
MEYLE : 025 234 2016/W
MINTEX : MDB1975
MINTEX : MDB3929
NAPA : NBP1087
National : NP2292
SKF : VKBP 80296
SKF : VKBP 80888 A
TEXTAR : 2342001
TEXTAR : 2342006
TRW : GDB3293
TRW : GDB3312
VALEO : 301452
VALEO : 598452

Apec PAD1311 Brake Pad Set, disc brake
