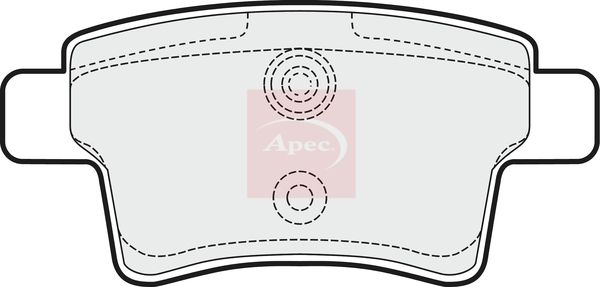

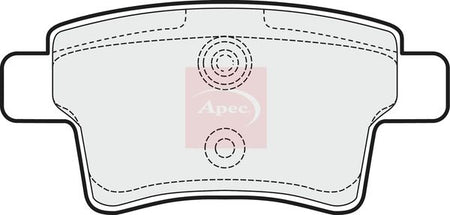

Apec PAD1526 Brake Pad Set, disc brake - 1
Apec PAD1526 Brake Pad Set, disc brake - 2
Apec PAD1526 Brake Pad Set, disc brake - 3
Apec PAD1526 Brake Pad Set, disc brake - 4
Apec PAD1526 Brake Pad Set, disc brake - 5
Apec PAD1526 Brake Pad Set, disc brake - 1
Apec PAD1526 Brake Pad Set, disc brake - 2
Apec PAD1526 Brake Pad Set, disc brake - 3
Apec PAD1526 Brake Pad Set, disc brake - 4
Apec PAD1526 Brake Pad Set, disc brake - 5
APEC

Apec PAD1526 Brake Pad Set, disc brake

SKU: PAD1526
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£33.51 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

CITROËN
C4 GRAND PICASSO I (UA_)
Description Cylinder Capacity Horse Power Year
1.6 THP 155 1598 CCM 156 HP 09/2010 - 08/2013
1.6 HDi 110 1560 CCM 112 HP 09/2010 - 08/2013
2.0 HDi 165 1997 CCM 163 HP 09/2010 - 08/2013
1.8 i 16V 1749 CCM 125 HP 10/2006 - 12/2010
2.0 i 16V 1997 CCM 140 HP 10/2006 - 08/2013
1.6 HDi 1560 CCM 109 HP 10/2006 - 06/2011
2.0 HDi 138 1997 CCM 136 HP 10/2006 - 12/2013
1.6 VTi 120 1598 CCM 120 HP 07/2008 - 08/2013
1.6 16V 1598 CCM 140 HP 07/2008 - 12/2010
1.6 16V 1598 CCM 150 HP 10/2008 - 08/2013
2.0 HDi 150 1997 CCM 150 HP 07/2009 - 08/2013
2.0 i 16V 1997 CCM 143 HP 05/2008 - 12/2013
C4 PICASSO I MPV (UD_)
Description Cylinder Capacity Horse Power Year
1.6 THP 155 1598 CCM 156 HP 09/2010 - 08/2013
1.6 HDi 110 1560 CCM 112 HP 09/2010 - 08/2013
2.0 HDi 165 1997 CCM 163 HP 09/2010 - 08/2013
1.8 i 16V 1749 CCM 125 HP 02/2007 - 12/2011
2.0 i 16V 1997 CCM 140 HP 09/2007 - 08/2013
1.6 HDi 1560 CCM 109 HP 02/2007 - 08/2013
2.0 HDi 138 1997 CCM 136 HP 10/2006 - 08/2013
1.6 VTi 120 1598 CCM 120 HP 07/2008 - 08/2013
1.6 THP 140 1598 CCM 140 HP 07/2008 - 08/2013
2.0 HDi 150 1997 CCM 150 HP 07/2009 - 08/2013
1.6 16V 1598 CCM 150 HP 07/2008 - 08/2013
2.0 i 16V 1997 CCM 143 HP 05/2008 - 05/2013

The Apec PAD1526 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Bosch brake-system specification, with bolts, test mark 90R - 01118/1666, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Bosch
Supplementary Article/Supplementary Info 2 : with bolts
Width [mm] : 102
Height 1 [mm] : 48
Thickness [mm] : 16
WVA Number : 24540
Test Mark : 90R - 01118/1666
Wear Warning Contact : not prepared for wear warning indicator
Fitting Position : Rear Axle
for article number : DSK2628
Article number of recommended accessories : KIT1003
  • Vendor APEC
  • SKU PAD1526
  • Barcode 5028906012250
  • APEC : PD3212
  • BLUE PRINT : ADP154215
  • BORG & BECK : BBP2029
  • BOSCH : 0 986 494 199
  • BOSCH : 0 986 494 622
  • BREMBO : P 61 085
  • DELPHI : LP2055
  • Fahren : FBP3212
  • FEBI BILSTEIN : 16793
  • HELLA : 8DB 355 013-361
  • MEYLE : 025 245 4016
  • MINTEX : MDB2892
  • NAPA : NBP1417
  • National : NP2289
  • SKF : VKBP 90088
  • TEXTAR : 2454001
  • TRW : GDB1692
  • VALEO : 302214
  • VALEO : 302214A
  • VALEO : 598936
