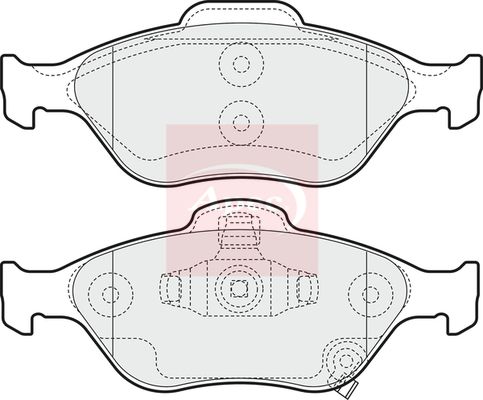

Apec PAD1543 Brake Pad Set, disc brake - 1

Apec PAD1543 Brake Pad Set, disc brake - 2

Apec PAD1543 Brake Pad Set, disc brake - 3

Apec PAD1543 Brake Pad Set, disc brake - 4

APEC

Apec PAD1543 Brake Pad Set, disc brake

SKU: PAD1543

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£35.05 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DAIHATSU

CHARADE VIII

Description	Cylinder Capacity	Horse Power	Year
1.33 16V	1329 CCM	99 HP	From 05/2011

TOYOTA

YARIS Hatchback Van (_P13_)

Description	Cylinder Capacity	Horse Power	Year
1.3 VVTi (NSP130)	1329 CCM	99 HP	10/2012 - 03/2017
1.0 VVTi (KSP130)	998 CCM	69 HP	07/2014 - 06/2020
1.4 D4d (NLP130)	1364 CCM	90 HP	07/2014 - 05/2018
1.0 VVTi (KSP130)	998 CCM	72 HP	06/2018 - 06/2020
1.5 Hybrid (NHP130)	1497 CCM	101 HP	04/2015 - 06/2020

YARIS/VITZ (_P9_)

Description	Cylinder Capacity	Horse Power	Year
1.3 4WD (NCP95)	1298 CCM	87 HP	01/2005 - 11/2010
1.3 VVT-i (NCP90_, NCP90R)	1299 CCM	86 HP	11/2005 - 12/2012
1.33 VVT-i (NSP90_, NSP90R)	1329 CCM	99 HP	07/2010 - 05/2011
1.0 VVT-i (KSP90_, KSP90R)	998 CCM	69 HP	08/2005 - 12/2011
1.4 D-4D (NLP90_, NLP90R)	1364 CCM	90 HP	08/2005 - 12/2012
1.3 VVT-i (SCP90_, SCP90R)	1298 CCM	87 HP	08/2005 - 11/2010
1.33 VVT-i (NSP90_, NSP90R)	1329 CCM	100 HP	11/2008 - 12/2011
1.0 VVT-i (KSP90)	998 CCM	71 HP	11/2005 - 11/2010

YARIS/VITZ (_P13_)

Description	Cylinder Capacity	Horse Power	Year
1.3 (NSP130_, NSP130)	1329 CCM	95 HP	12/2010 - 07/2014
1.0 (KSP130_, KSP130)	998 CCM	69 HP	12/2010 - 06/2020
1.4 D (NLP130_, NLP130)	1364 CCM	90 HP	09/2011 - 05/2018
1.3 (NSP130_, NSP130)	1329 CCM	99 HP	09/2011 - 03/2017
1.5 Hybrid (NHP130_, NHP130)	1497 CCM	101 HP	03/2012 - 06/2020
1.5 Hybrid (NHP130_)	1497 CCM	101 HP	04/2015 - 03/2017
1.5 (NSP131_)	1496 CCM	112 HP	03/2017 - 06/2020
1.0 (KSP130)	998 CCM	72 HP	06/2018 - 06/2020

The Apec PAD1543 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, with retaining spring, test mark 90R - 01112/200, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake

Brake System : ATE

Number of wear indicators [per axle] : 2

Supplementary Article/Supplementary Info : with retaining spring

Width [mm] : 151

Width 2 [mm] : 150

Height 1 [mm] : 58

Height 2 [mm] : 61

Thickness [mm] : 17

WVA Number : 24022

Test Mark : 90R - 01112/200

Wear Warning Contact : with acoustic wear warning

Fitting Position : Front Axle

APEC : PD3217
BLUE PRINT : ADT342165
BLUE PRINT : ADT342213
BORG & BECK : BBP1999
BOSCH : 0 986 494 101
BOSCH : 0 986 495 093
BREMBO : P 83 085
BREMBO : P 83 159
DELPHI : LP2005
DELPHI : LP3739
Fahren : FBP3217
FEBI BILSTEIN : 116267
FEBI BILSTEIN : 116402
HELLA : 8DB 355 006-721
HELLA : 8DB 355 025-321
MEYLE : 025 232 0217/PD
MEYLE : 025 232 0217/W
MINTEX : MDB1543
MINTEX : MDB2769
MINTEX : MDB3870
NAPA : NBP1184
National : NP2286
TEXTAR : 2165101
TEXTAR : 2402201
TEXTAR : 2495201
TRW : GDB3457
VALEO : 301076
VALEO : 601026
VALEO : 610313

Apec PAD1543 Brake Pad Set, disc brake
