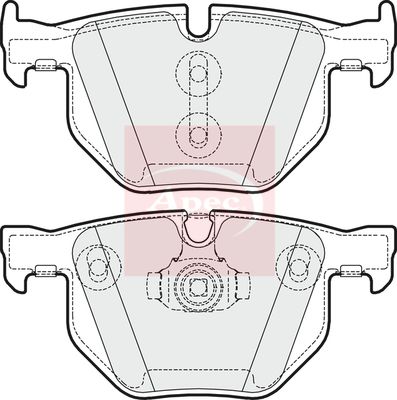

Apec PAD1643 Brake Pad Set, disc brake - 1
Apec PAD1643 Brake Pad Set, disc brake - 2
Apec PAD1643 Brake Pad Set, disc brake - 3
Apec PAD1643 Brake Pad Set, disc brake - 4
Apec PAD1643 Brake Pad Set, disc brake - 5
Apec PAD1643 Brake Pad Set, disc brake - 6
Apec PAD1643 Brake Pad Set, disc brake - 1
Apec PAD1643 Brake Pad Set, disc brake - 2
Apec PAD1643 Brake Pad Set, disc brake - 3
Apec PAD1643 Brake Pad Set, disc brake - 4
Apec PAD1643 Brake Pad Set, disc brake - 5
Apec PAD1643 Brake Pad Set, disc brake - 6
APEC

Apec PAD1643 Brake Pad Set, disc brake

SKU: PAD1643
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£35.23 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
X5 (E70)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 245 HP 04/2010 - 07/2013
xDrive 40 d 2993 CCM 306 HP 09/2010 - 06/2013
xDrive 35 i 2979 CCM 306 HP 04/2010 - 07/2013
3.0 si 2996 CCM 272 HP 10/2006 - 09/2008
3.0 d 2993 CCM 235 HP 12/2006 - 09/2008
xDrive 30 i 2996 CCM 272 HP 10/2008 - 03/2010
xDrive 30 d 2993 CCM 235 HP 10/2008 - 03/2010
3.0 3.0d 2993 CCM 211 HP 02/2007 - 09/2008
xDrive 35 i 2979 CCM 320 HP 02/2012 - 06/2013
X5 (F15, F85)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 258 HP 08/2013 - 07/2018
sDrive 25 d 1995 CCM 218 HP 12/2013 - 07/2015
xDrive 25 d 1995 CCM 218 HP 12/2013 - 07/2015
xDrive 30 d 2993 CCM 277 HP 08/2013 - 07/2018
sDrive 25 d 1995 CCM 231 HP 08/2015 - 07/2018
xDrive 25 d 1995 CCM 231 HP 08/2015 - 07/2018
xDrive 40e 1997 CCM 313 HP 08/2015 - 07/2018
xDrive 28 i 1997 CCM 245 HP 06/2015 - 07/2018
xDrive 25 d 2993 CCM 218 HP 04/2014 - 07/2018
X6 (E71, E72)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 245 HP 04/2010 - 07/2014
xDrive 40 d 2993 CCM 306 HP 07/2009 - 06/2014
xDrive 30 d 2993 CCM 211 HP 04/2010 - 07/2014
xDrive 35 i 2979 CCM 306 HP 01/2008 - 07/2014
xDrive 30 d 2993 CCM 235 HP 04/2008 - 03/2010
xDrive 35 d 2993 CCM 286 HP 01/2008 - 03/2010
xDrive 35 i 2979 CCM 320 HP 08/2012 - 06/2014
X6 (F16, F86)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 258 HP 08/2014 - 07/2019
xDrive 30 d 2993 CCM 277 HP 08/2014 - 07/2019

The Apec PAD1643 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, with retaining spring, test mark 90R - 01707/021, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : ATE
Supplementary Article/Supplementary Info : with retaining spring
Width [mm] : 122
Height 1 [mm] : 59
Height 2 [mm] : 58
Thickness [mm] : 17
WVA Number : 23447
Test Mark : 90R - 01707/021
Wear Warning Contact : prepared for wear warning indicator
Fitting Position : Rear Axle
for article number : DSK2601
Article number of recommended accessories : KIT1089
Article number of recommended accessories : WIR5191
  • Vendor APEC
  • SKU PAD1643
  • Barcode 5028906013431
  • BMW : 34212413041 34216776937
  • APEC : PD3341
  • BLUE PRINT : ADB114202
  • BORG & BECK : BBP1961
  • BOSCH : 0 986 424 766
  • BREMBO : P 06 056
  • BREMBO : P 06 056X
  • BREMBO : P06056NX
  • DELPHI : LP2068
  • Fahren : FBP3341
  • FEBI BILSTEIN : 16466
  • FEBI BILSTEIN : 16633
  • HELLA : 8DB 355 013-941
  • MEYLE : 025 212 8217
  • MEYLE : 025 212 8217/PD
  • MINTEX : MDB2961
  • NAPA : NBP1391
  • National : NP2840
  • SKF : VKBP 90240
  • TEXTAR : 2344704
  • TRW : GDB1730
  • TRW : GDB1730DTE
