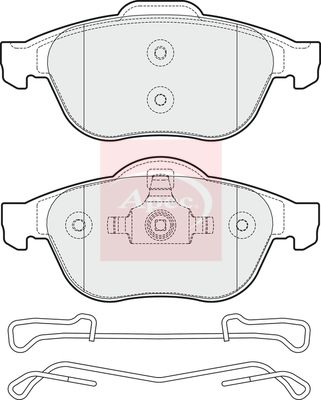

Apec PAD1685 Brake Pad Set, disc brake - 1
Apec PAD1685 Brake Pad Set, disc brake - 2
Apec PAD1685 Brake Pad Set, disc brake - 3
Apec PAD1685 Brake Pad Set, disc brake - 4
Apec PAD1685 Brake Pad Set, disc brake - 5
Apec PAD1685 Brake Pad Set, disc brake - 1
Apec PAD1685 Brake Pad Set, disc brake - 2
Apec PAD1685 Brake Pad Set, disc brake - 3
Apec PAD1685 Brake Pad Set, disc brake - 4
Apec PAD1685 Brake Pad Set, disc brake - 5
APEC

Apec PAD1685 Brake Pad Set, disc brake

SKU: PAD1685
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£26.92 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
LAGUNA II (BG0/1_)
Description Cylinder Capacity Horse Power Year
1.6 16V (BG0A, BG0L) 1598 CCM 107 HP 03/2001 - 05/2005
1.8 16V (BG0B, BG0C, BG0J, BG0M, BG0V) 1783 CCM 121 HP 03/2001 - 05/2005
2.0 16V IDE (BG0N) 1998 CCM 140 HP 04/2001 - 09/2007
2.2 dCi (BG0F) 2188 CCM 150 HP 10/2001 - 08/2006
1.8 16V (BG0B, BG0M) 1783 CCM 120 HP 03/2001 - 09/2007
1.8 16V (BG06, BG0J, BG0M) 1783 CCM 116 HP 03/2001 - 12/2007
1.9 dCi (BG0R, BG0E) 1870 CCM 100 HP 10/2001 - 05/2005
2.0 16V (BG00, BG0K, BG0P, BG0W) 1998 CCM 135 HP 08/2002 - 12/2007
2.0 16V Turbo (BG0S, BG1L, BG1M) 1998 CCM 163 HP 01/2003 - 03/2005
1.9 dCi (BG05) 1870 CCM 92 HP 03/2004 - 05/2005
LAGUNA II Sport Tourer (KG0/1_)
Description Cylinder Capacity Horse Power Year
1.6 16V (KG0A, KG0L) 1598 CCM 107 HP 03/2001 - 12/2007
1.8 16V 1783 CCM 121 HP 03/2001 - 05/2005
2.0 16V IDE (KG0N) 1998 CCM 140 HP 04/2001 - 09/2007
2.2 dCi (KG0F) 2188 CCM 150 HP 10/2001 - 08/2006
1.8 16V (KG0J) 1783 CCM 116 HP 03/2001 - 05/2005
1.8 16V (KG0B, KG0M) 1783 CCM 120 HP 03/2001 - 05/2005
1.9 dCi (KG0E, KG0R) 1870 CCM 100 HP 10/2001 - 05/2005
2.0 16V (KG00, KG0K, KG0W, KG0P) 1998 CCM 135 HP 08/2002 - 12/2007
2.0 16V Turbo (KG0S, KG1L, KG03) 1998 CCM 163 HP 01/2003 - 08/2005
1.9 dCi (KG05) 1870 CCM 92 HP 03/2004 - 05/2005
SCÉNIC I MPV (JA0/1_, FA0_)
Description Cylinder Capacity Horse Power Year
2.0 16V RX4 1998 CCM 139 HP 06/2000 - 08/2003
1.9 dCi RX4 1870 CCM 102 HP 11/2000 - 08/2003
1.9 dCi RX4 1870 CCM 101 HP 12/2002 - 08/2003

The Apec PAD1685 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, with retaining spring, test mark 90R - 01022/564, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : ATE
Supplementary Article/Supplementary Info : with retaining spring
Width [mm] : 156
Width 2 [mm] : 155
Height 1 [mm] : 68
Height 2 [mm] : 71
Thickness [mm] : 18
Test Mark : 90R - 01022/564
Wear Warning Contact : not prepared for wear warning indicator
Fitting Position : Front Axle
Rim Size [inch] : 17
Rim Size [inch] : 16
for article number : DSK2102
Article number of recommended accessories : KIT1030
  • Vendor APEC
  • SKU PAD1685
  • Barcode 5028906016852
  • RENAULT : 410607613R 7701206599 7701206747 7701208182 7701209809
  • APEC : PD3099
  • BLUE PRINT : ADR164214
  • BORG & BECK : BBP1731
  • BORG & BECK : BBP1764
  • BOSCH : 0 986 424 616
  • BOSCH : 0 986 494 033
  • BOSCH : 0 986 495 264
  • BREMBO : P 68 030
  • DELPHI : LP1708
  • FEBI BILSTEIN : 16427
  • HELLA : 8DB 355 009-101
  • MEYLE : 025 232 4518
  • MEYLE : 025 232 4518/PD
  • MINTEX : MDB1685
  • MINTEX : MDB2225
  • National : NP2100
  • SKF : VKBP 80133
  • TEXTAR : 2184501
  • TEXTAR : 2324502
  • VALEO : 301471
  • VALEO : 302221
  • VALEO : 598471
