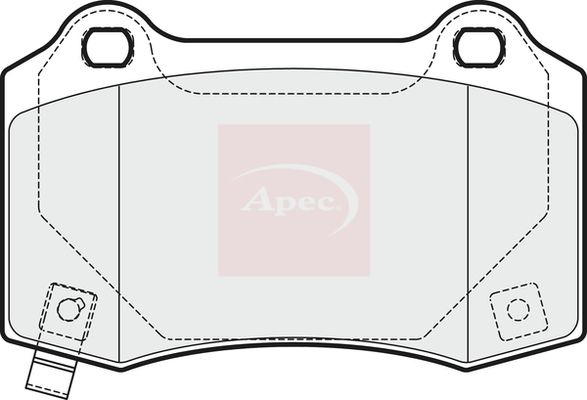

Apec PAD1688 Brake Pad Set, disc brake - 1
Apec PAD1688 Brake Pad Set, disc brake - 2
Apec PAD1688 Brake Pad Set, disc brake - 3
Apec PAD1688 Brake Pad Set, disc brake - 4
Apec PAD1688 Brake Pad Set, disc brake - 5
Apec PAD1688 Brake Pad Set, disc brake - 6
Apec PAD1688 Brake Pad Set, disc brake - 1
Apec PAD1688 Brake Pad Set, disc brake - 2
Apec PAD1688 Brake Pad Set, disc brake - 3
Apec PAD1688 Brake Pad Set, disc brake - 4
Apec PAD1688 Brake Pad Set, disc brake - 5
Apec PAD1688 Brake Pad Set, disc brake - 6
APEC

Apec PAD1688 Brake Pad Set, disc brake

SKU: PAD1688
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£28.20 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER
300C (LX, LE)
Description Cylinder Capacity Horse Power Year
6.1 SRT8 6059 CCM 431 HP 06/2005 - 11/2012
300C Touring (LX, LE)
Description Cylinder Capacity Horse Power Year
6.1 SRT8 6059 CCM 431 HP 06/2005 - 12/2010
CADILLAC
CTS
Description Cylinder Capacity Horse Power Year
6.2 V 6162 CCM 649 HP From 04/2015
JEEP
GRAND CHEROKEE III (WH, WK)
Description Cylinder Capacity Horse Power Year
6.1 SRT8 4x4 6059 CCM 426 HP 03/2006 - 12/2010
GRAND CHEROKEE IV (WK, WK2)
Description Cylinder Capacity Horse Power Year
6.4 SRT8 4x4 6417 CCM 468 HP From 03/2011
6.4 SRT8 4x4 6417 CCM 472 HP From 06/2011
6.2 i V8 4x4 6166 CCM 710 HP From 09/2017
TESLA
MODEL S
Description Cylinder Capacity Horse Power Year
85 367 HP 09/2012 - 02/2016
P85 421 HP 11/2013 - 12/2014
60 306 HP 11/2013 - 09/2014
85D AWD 376 HP 10/2014 - 02/2016
60D AWD 376 HP 10/2014 - 04/2015
P85D AWD 700 HP 10/2014 - 02/2016
60 385 HP From 10/2014
85 385 HP 02/2015 - 02/2016
70D AWD 334 HP From 04/2015
85D AWD 421 HP 01/2014 - 02/2016
P85D AWD 772 HP 09/2015 - 02/2016
70D AWD 525 HP From 09/2015
85D AWD 525 HP 10/2014 - 02/2016
85 388 HP 09/2012 - 02/2016
70 388 HP From 09/2015
MODEL X
Description Cylinder Capacity Horse Power Year
90D AWD 525 HP From 09/2015
P90D AWD 772 HP From 09/2015
75D AWD 525 HP From 06/2016
P100D AWD 772 HP From 10/2016
60D AWD 525 HP From 06/2016
100D AWD 525 HP From 08/2017
EV AWD 573 HP From 09/2019
Plaid AWD 1020 HP From 01/2021
EV AWD 424 HP From 02/2023

The Apec PAD1688 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Brembo brake-system specification, test mark 90R - 01118/877, rear axle fitting position, and brake Caliper (2 pistons). Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Brembo
Number of wear indicators [per axle] : 4
Width [mm] : 110
Height 1 [mm] : 69
Thickness [mm] : 15
Test Mark : 90R - 01118/877
Wear Warning Contact : with acoustic wear warning
Fitting Position : Rear Axle
Brake Caliper Type : Brake Caliper (2 pistons)
for brake disc diameter [mm] : 345
  • Vendor APEC
  • SKU PAD1688
  • Barcode 5028906016883
  • BLUE PRINT : ADA104206
  • BLUE PRINT : ADV184281
  • BORG & BECK : BBP2433
  • BORG & BECK : BBP2649
  • BOSCH : 0 986 460 021
  • BOSCH : 0 986 494 708
  • BREMBO : P 11 024
  • DELPHI : LP3547
  • DELPHI : LP3676
  • FEBI BILSTEIN : 116087
  • FEBI BILSTEIN : 116382
  • HELLA : 8DB 355 014-211
  • MEYLE : 025 257 4315/PD
  • MINTEX : MDB2997
  • National : NP3229
  • TEXTAR : 2407601
  • TRW : GDB4171
  • VALEO : 302762
  • VALEO : 601481
  • VALEO : 610308
