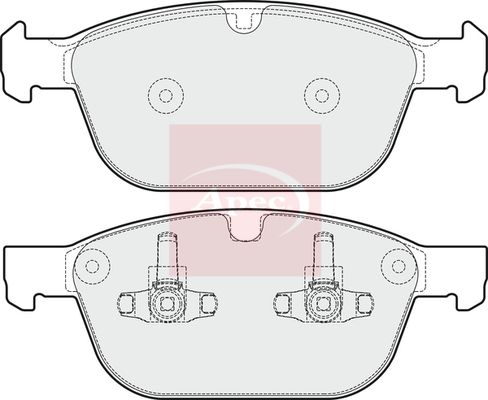

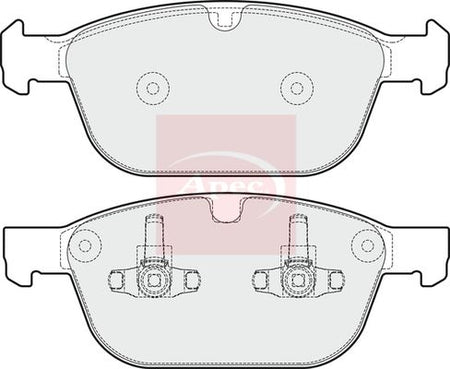

Apec PAD1719 Brake Pad Set, disc brake - 1
Apec PAD1719 Brake Pad Set, disc brake - 2
Apec PAD1719 Brake Pad Set, disc brake - 3
Apec PAD1719 Brake Pad Set, disc brake - 4
Apec PAD1719 Brake Pad Set, disc brake - 5
Apec PAD1719 Brake Pad Set, disc brake - 1
Apec PAD1719 Brake Pad Set, disc brake - 2
Apec PAD1719 Brake Pad Set, disc brake - 3
Apec PAD1719 Brake Pad Set, disc brake - 4
Apec PAD1719 Brake Pad Set, disc brake - 5
APEC

Apec PAD1719 Brake Pad Set, disc brake

SKU: PAD1719
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£54.42 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
XC60 I SUV (156)
Description Cylinder Capacity Horse Power Year
T5 1999 CCM 241 HP 09/2010 - 02/2017
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
D5 2400 CCM 215 HP 06/2011 - 02/2017
T6 AWD 2953 CCM 286 HP 05/2008 - 12/2010
2.4 D / D3 / D4 AWD 2400 CCM 163 HP 05/2008 - 02/2017
D5 AWD 2400 CCM 185 HP 05/2008 - 12/2009
D5 AWD 2400 CCM 205 HP 07/2009 - 06/2011
2.4 D 2400 CCM 175 HP 04/2009 - 12/2010
3.2 AWD 3192 CCM 238 HP 07/2009 - 12/2010
2.0 T 1999 CCM 203 HP 12/2009 - 12/2012
3.2 AWD 3192 CCM 243 HP 03/2010 - 12/2015
T6 AWD 2953 CCM 304 HP 03/2010 - 02/2017
D3 / D4 1984 CCM 163 HP 03/2010 - 12/2014
D4 AWD 2400 CCM 181 HP 10/2013 - 12/2015
XC60 I VAN (156)
Description Cylinder Capacity Horse Power Year
D5 AWD 2400 CCM 215 HP 09/2013 - 02/2017
XC90 I (275)
Description Cylinder Capacity Horse Power Year
D5 AWD 2400 CCM 200 HP 01/2011 - 12/2014
D3 / D5 2400 CCM 163 HP 04/2009 - 12/2014

The Apec PAD1719 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, test mark 90R - 01112/2638, front axle fitting position, and brake Caliper (2 pistons). Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : ATE
Supplementary Article/Supplementary Info : with retaining spring
Width [mm] : 194
Width 2 [mm] : 193
Height 1 [mm] : 76
Thickness [mm] : 19
Thickness 1 [mm] : 20
WVA Number : 24875
Test Mark : 90R - 01112/2638
Wear Warning Contact : not prepared for wear warning indicator
Fitting Position : Front Axle
Brake Caliper Type : Brake Caliper (2 pistons)
for article number : DSK2696
Article number of recommended accessories : KIT1011
  • Vendor APEC
  • SKU PAD1719
  • Barcode 5028906017194
  • VOLVO : 30793943 31277334 31687104
  • APEC : PAD1719B
  • APEC : PD3692
  • BLUE PRINT : ADF124203
  • BORG & BECK : BBP2093
  • BOSCH : 0 986 494 305
  • BREMBO : P 86 023
  • DELPHI : LP2140
  • Fahren : FBP3692
  • FEBI BILSTEIN : 16773
  • HELLA : 8DB 355 014-541
  • MEYLE : 025 243 9920
  • MEYLE : 025 243 9920/PD
  • MINTEX : MDB3024
  • NAPA : NBP1117
  • National : NP2844
  • SKF : VKBP 80188
  • TEXTAR : 2439901
  • TRW : GDB1821
  • VALEO : 601381
