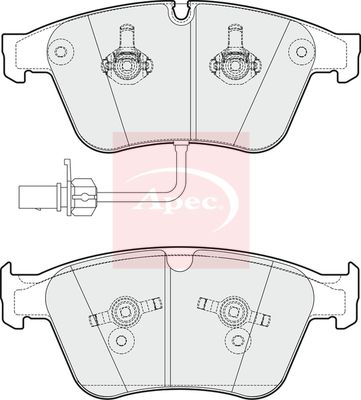

Apec PAD1765 Brake Pad Set, disc brake - 1
Apec PAD1765 Brake Pad Set, disc brake - 2
Apec PAD1765 Brake Pad Set, disc brake - 3
Apec PAD1765 Brake Pad Set, disc brake - 4
Apec PAD1765 Brake Pad Set, disc brake - 5
Apec PAD1765 Brake Pad Set, disc brake - 6
Apec PAD1765 Brake Pad Set, disc brake - 1
Apec PAD1765 Brake Pad Set, disc brake - 2
Apec PAD1765 Brake Pad Set, disc brake - 3
Apec PAD1765 Brake Pad Set, disc brake - 4
Apec PAD1765 Brake Pad Set, disc brake - 5
Apec PAD1765 Brake Pad Set, disc brake - 6
APEC

Apec PAD1765 Brake Pad Set, disc brake

SKU: PAD1765
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£89.42 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BENTLEY
CONTINENTAL Coupe (3W_, 393)
Description Cylinder Capacity Horse Power Year
6.0 FLEX 5998 CCM 575 HP 11/2010 - 12/2013
6.0 GT 5998 CCM 560 HP 06/2003 - 12/2011
4.0 3993 CCM 507 HP 09/2011 - 07/2018
6.0 GT Speed 5998 CCM 610 HP 09/2007 - 12/2011
6.0 Supersports 5998 CCM 630 HP 10/2009 - 12/2011
6.0 FLEX 5998 CCM 630 HP 02/2008 - 05/2010
6.0 5998 CCM 626 HP 09/2012 - 07/2018
4.0 FLEX 3993 CCM 528 HP 12/2013 - 07/2018
6.0 FLEX 5998 CCM 635 HP 05/2014 - 07/2018
4.0 FLEX 3993 CCM 579 HP 10/2014 - 07/2018
6.0 FLEX 5998 CCM 590 HP 05/2015 - 07/2018
4.0 FLEX 3993 CCM 507 HP 04/2012 - 07/2018
CONTINENTAL FLYING SPUR (3W_)
Description Cylinder Capacity Horse Power Year
6.0 5998 CCM 560 HP 03/2005 - 12/2010
6.0 FLEX 5998 CCM 610 HP 09/2008 - 02/2013
6.0 Speed 5998 CCM 610 HP 09/2008 - 12/2010
CONTINENTAL Convertible (3W_, 394)
Description Cylinder Capacity Horse Power Year
6.0 AWD 5998 CCM 575 HP 11/2011 - 07/2018
6.0 CS ISR 5998 CCM 641 HP 03/2011 - 06/2014
4.0 FLEX AWD 3993 CCM 507 HP 02/2012 - 07/2018
6.0 AWD 5998 CCM 560 HP 09/2006 - 04/2012
6.0 GTC Speed All-wheel Drive 5998 CCM 610 HP 08/2007 - 04/2011
6.0 FLEX AWD 5998 CCM 630 HP 03/2010 - 12/2013
6.0 FLEX AWD 5998 CCM 575 HP 09/2011 - 12/2015
6.0 GTC Speed AWD 5998 CCM 626 HP 09/2012 - 07/2018
4.0 FLEX AWD 3993 CCM 528 HP 12/2013 - 07/2018
6.0 GTC Speed AWD 5998 CCM 635 HP 05/2014 - 07/2018
6.0 FLEX AWD 5998 CCM 635 HP 05/2014 - 07/2018
6.0 FLEX AWD 5998 CCM 590 HP 05/2015 - 07/2018
FLYING SPUR (4W_)
Description Cylinder Capacity Horse Power Year
6.0 W12 5998 CCM 626 HP 03/2013 - 10/2020
4.0 FLEX 3993 CCM 507 HP From 03/2013
4.0 V8 3993 CCM 507 HP 03/2013 - 10/2020
W12 S 6.0 5998 CCM 635 HP From 11/2016
V8 S 4.0 3993 CCM 528 HP From 05/2016

The Apec PAD1765 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, with retaining spring, test mark 90R - 01112/2546, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : ATE
Number of wear indicators [per axle] : 2
Supplementary Article/Supplementary Info : with retaining spring
Width [mm] : 193
Height 1 [mm] : 82
Thickness [mm] : 20
Warning Contact Length [mm] : 250
Test Mark : 90R - 01112/2546
Wear Warning Contact : with integrated wear warning contact
Fitting Position : Front Axle
for article number : DSK4043
  • Vendor APEC
  • SKU PAD1765
  • Barcode 5028906017651
  • BENTLEY : 3W0698151A 3W0698151AA 3W0698151P 3W0698151R
  • APEC : PD3686
  • BLUE PRINT : ADBP420044
  • BORG & BECK : BBP2966
  • BOSCH : 0 986 424 397
  • BREMBO : P 05 003
  • DELPHI : LP3667
  • FEBI BILSTEIN : 173724
  • HELLA : 8DB 355 020-441
  • MINTEX : MDB3181
  • NAPA : NBP1887
  • TEXTAR : 2382201
  • TRW : GDB2177
