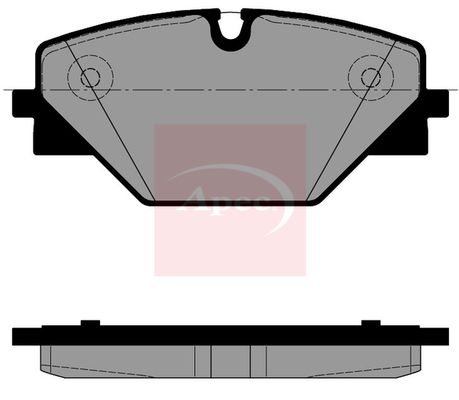

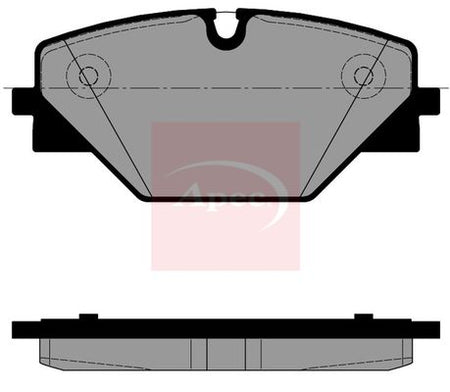

Apec PAD2617 Brake Pad Set, disc brake - 1
Apec PAD2617 Brake Pad Set, disc brake - 2
Apec PAD2617 Brake Pad Set, disc brake - 3
Apec PAD2617 Brake Pad Set, disc brake - 4
Apec PAD2617 Brake Pad Set, disc brake - 1
Apec PAD2617 Brake Pad Set, disc brake - 2
Apec PAD2617 Brake Pad Set, disc brake - 3
Apec PAD2617 Brake Pad Set, disc brake - 4
APEC

Apec PAD2617 Brake Pad Set, disc brake

SKU: PAD2617
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£36.35 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LAND ROVER
RANGE ROVER V (L460)
Description Cylinder Capacity Horse Power Year
P400 MHEV AWD 2996 CCM 400 HP From 10/2021
P530 AWD 4395 CCM 530 HP From 10/2021
D300 MHEV AWD 2997 CCM 300 HP From 10/2021
D350 MHEV AWD 2997 CCM 351 HP From 10/2021
D250 MHEV AWD 2997 CCM 249 HP From 10/2021
P440e PHEV AWD 2996 CCM 441 HP From 02/2022
P510e PHEV AWD 2996 CCM 510 HP From 02/2022
P460e PHEV AWD 2996 CCM 460 HP From 05/2023
P550e PHEV AWD 2996 CCM 551 HP From 05/2023
P615 MHEV AWD 4395 CCM 615 HP From 05/2023
P530 MHEV AWD 4395 CCM 530 HP From 05/2023
RANGE ROVER SPORT III (L461)
Description Cylinder Capacity Horse Power Year
3.0 D250 MHEV AWD 2997 CCM 249 HP From 04/2022
3.0 D300 MHEV AWD 2997 CCM 300 HP From 04/2022
P400 MHEV AWD 2996 CCM 400 HP From 04/2022
P440e PHEV AWD 2996 CCM 441 HP From 04/2022
P510e PHEV AWD 2996 CCM 510 HP From 04/2022
P530 AWD 4395 CCM 530 HP From 04/2022
3.0 D350 MHEV AWD 2997 CCM 351 HP From 04/2022
P460e PHEV AWD 2996 CCM 460 HP From 05/2023
P550e PHEV AWD 2996 CCM 551 HP From 05/2023
P530 MHEV AWD 4395 CCM 530 HP From 05/2023

The Apec PAD2617 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Mando brake-system specification, test mark 90R-02A0118/5877, prepared for wear warning indicator, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Mando
Width [mm] : 145
Height 1 [mm] : 65
Thickness [mm] : 17
Test Mark : 90R-02A0118/5877
Wear Warning Contact : prepared for wear warning indicator
Fitting Position : Rear Axle
  • Vendor APEC
  • SKU PAD2617
  • Barcode 5028906259945
  • LAND ROVER : LR156904 LR156906
  • BLUE PRINT : ADBP420232
  • BREMBO : P 44 032
  • DELPHI : LP3901
  • FEBI BILSTEIN : 1004022
  • MINTEX : MDB4338
  • National : NP3395
  • TEXTAR : 2027801
