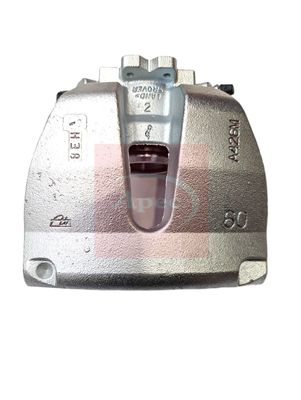

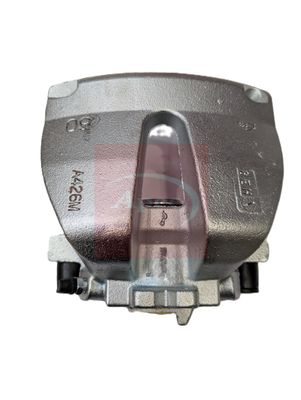

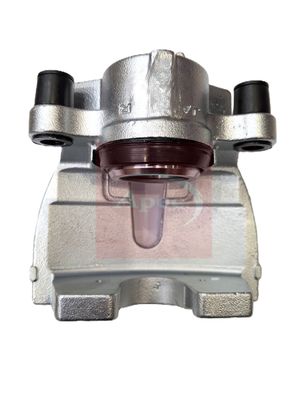

Apec RCA1117 Brake Caliper

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: RCA1117

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£133.28 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

JAGUAR

F-PACE (X761)

Description	Cylinder Capacity	Horse Power	Year
3.0 SCV6 AWD	2995 CCM	340 HP	From 09/2015
3.0 SCV6 AWD	2995 CCM	380 HP	From 09/2015
3.0 SDV6 AWD	2993 CCM	300 HP	From 09/2015
2.0 TD4	1999 CCM	180 HP	From 09/2015
2.0 TD4 AWD	1999 CCM	180 HP	From 09/2015
2.0 TD4	1999 CCM	163 HP	From 02/2017
2.0 SD4 AWD	1999 CCM	241 HP	From 02/2017
2.0 Ti4 AWD	1997 CCM	250 HP	From 02/2017
2.0 Ti4 AWD	1997 CCM	300 HP	From 06/2017
2.0 D165 MHEV	1997 CCM	163 HP	From 10/2020
2.0 D200 MHEV	1997 CCM	204 HP	From 10/2020
3.0 P400 MHEV	2996 CCM	400 HP	From 10/2020

XE (X760)

Description	Cylinder Capacity	Horse Power	Year
2.0	1999 CCM	241 HP	From 03/2015
3.0 S	2995 CCM	340 HP	From 03/2015
2.0 D AWD	1999 CCM	241 HP	From 02/2017
2.0	1997 CCM	250 HP	From 02/2017
2.0 AWD	1997 CCM	250 HP	From 02/2017
3.0 S	2995 CCM	381 HP	From 02/2017
2.0 AWD	1997 CCM	300 HP	From 06/2017
2.0	1997 CCM	300 HP	From 06/2017

XF II (X260)

Description	Cylinder Capacity	Horse Power	Year
2.0	1999 CCM	241 HP	From 05/2015
2.0 D	1999 CCM	241 HP	From 03/2017
2.0 D AWD	1999 CCM	241 HP	From 03/2017
2.0	1997 CCM	250 HP	From 03/2017
2.0 AWD	1997 CCM	250 HP	From 03/2017
2.0 AWD	1997 CCM	300 HP	From 09/2017

XF SPORTBRAKE (X260)

Description	Cylinder Capacity	Horse Power	Year
2.0 D AWD	1999 CCM	241 HP	From 07/2017
3.0 D	2993 CCM	300 HP	From 07/2017
2.0	1997 CCM	250 HP	From 07/2017
3.0 AWD	2995 CCM	380 HP	From 07/2017
3.0	2995 CCM	380 HP	From 07/2017
2.0 AWD	1997 CCM	300 HP	From 08/2018

The Apec RCA1117 Brake Caliper is a replacement braking-system component that forms part of the mechanism that applies or releases braking force. Its catalogue specification records ATE brake-system specification, vented disc construction, brake Caliper (1 piston), and grey Cast Iron construction. Confirm the reference, brake-system specification, fitting position, connections and vehicle application before fitting; installation and bleeding should follow the vehicle manufacturer's procedure.

Function : Brake Caliper

Brake System : ATE

Brake Disc Type : Vented

Brake Caliper Type : Brake Caliper (1 piston)

Piston Diameter 1 [mm] : 60

for brake disc thickness [mm] : 32

for brake disc diameter [mm] : 350

Number of connectors : 1

Material : Grey Cast Iron

Article number of recommended accessories : BBS12

Article number of recommended accessories : BSC2
