APEC

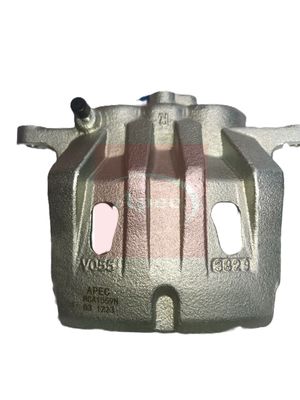

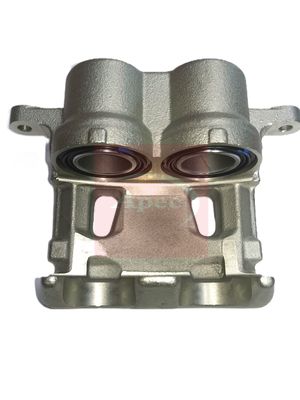

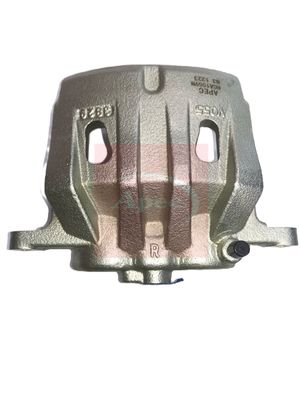

Apec RCA1559N Brake Caliper

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: RCA1559N

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock

Orders placed by 17:00 are usually dispatched the same working day

£62.22 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA

CAMRY (_V7_, _VA7_, _VH7_)

Description	Cylinder Capacity	Horse Power	Year
2.5 Hybrid (AXVH71_, AXVH70, AXVH71R)	2487 CCM	218 HP	From 08/2017

RAV 4 IV (_A4_)

Description	Cylinder Capacity	Horse Power	Year
2.0 D (ALA40_, ALA40R)	1998 CCM	124 HP	12/2012 - 11/2018
2.2 D 4WD (ALA49)	2231 CCM	150 HP	12/2012 - 09/2019
2.0 D 4WD (ALA41_)	1998 CCM	124 HP	01/2013 - 11/2018
2.0 4WD (ZSA44_)	1987 CCM	151 HP	04/2015 - 10/2018
2.0 D (WWA42_)	1995 CCM	143 HP	10/2015 - 11/2018
2.5 (ASA42)	2494 CCM	180 HP	12/2012 - 11/2018
2.5 Hybrid (AVA42_)	2494 CCM	197 HP	11/2015 - 11/2018
2.0 (ZSA42)	1987 CCM	143 HP	12/2012 - 09/2019

RAV 4 IV VAN (_A4_)

Description	Cylinder Capacity	Horse Power	Year
2.0 VVTi 4WD (ZSA44)	1987 CCM	152 HP	12/2012 - 11/2018

RAV 4 V (_A5_, _H5_)

Description	Cylinder Capacity	Horse Power	Year
2.5 Hybrid (AXAH52)	2487 CCM	218 HP	From 12/2018
2.5 Hybrid AWD (AXAH54, AXAL54)	2487 CCM	222 HP	From 12/2018

LEXUS

ES (_Z10_, _A10_, _H10_)

Description	Cylinder Capacity	Horse Power	Year
300h (AXZH10, AXZH11)	2487 CCM	218 HP	From 07/2018

NX (_Z1_)

Description	Cylinder Capacity	Horse Power	Year
200t (AGZ10_, AGZ10R)	1998 CCM	238 HP	From 07/2014
200t AWD (AGZ15_, AGZ15R)	1998 CCM	238 HP	From 07/2014
300h AWD (AYZ15, AYZ15_, AYZ15R)	2494 CCM	197 HP	From 07/2014
300h AWD (AYZ15)	2494 CCM	200 HP	From 11/2018
300h (AYZ10_, AYZ10R)	2494 CCM	197 HP	From 11/2014

RX (_L1_)

Description	Cylinder Capacity	Horse Power	Year
350 AWD (GGL15_, GGL15R)	3456 CCM	277 HP	12/2008 - 08/2015
350 (GGL10_, GGL10W)	3456 CCM	275 HP	01/2009 - 09/2015
450h AWD (GYL15, GYL15_, GYL15R, GYL16W)	3456 CCM	299 HP	03/2009 - 09/2015

The Apec RCA1559N Brake Caliper is a replacement braking-system component that forms part of the mechanism that applies or releases braking force. Its catalogue specification records in front of axle fitting position, Akebono brake-system specification, vented disc construction, and brake Caliper (2 pistons). Confirm the reference, brake-system specification, fitting position, connections and vehicle application before fitting; installation and bleeding should follow the vehicle manufacturer's procedure.

Function : Brake Caliper

Fitting Position : in front of axle

Brake System : Akebono

Brake Disc Type : Vented

Brake Caliper Type : Brake Caliper (2 pistons)

Piston Diameter 1 [mm] : 45

Piston Diameter 2 [mm] : 45

for brake disc thickness [mm] : 28

for brake disc diameter [mm] : 328

Material : Grey Cast Iron
