Apec RCA224N Brake Caliper

SKU: RCA224N

Your selected vehicle

In stock

Orders placed by 17:00 are usually dispatched the same working day

£48.71 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HONDA

CIVIC VII Hatchback (EU, EP, EV)

Description	Cylinder Capacity	Horse Power	Year
1.4 iS (EP1, EU5, EU7)	1396 CCM	90 HP	11/2000 - 09/2005
1.6 i (EP2, EU8, EU6)	1590 CCM	110 HP	02/2001 - 09/2005
2.0 Type-R (EP3)	1998 CCM	200 HP	09/2001 - 09/2005
1.7 CTDi (EP4, EU9)	1686 CCM	100 HP	01/2002 - 09/2005
2.0 i Sport (EV1)	1998 CCM	160 HP	09/2001 - 09/2005

CIVIC VII Saloon (ES, ET)

Description	Cylinder Capacity	Horse Power	Year
1.4 (ES4)	1396 CCM	90 HP	12/2000 - 09/2005

CIVIC VII Coupe (EM2)

Description	Cylinder Capacity	Horse Power	Year
1.7 i VTEC (EM2)	1668 CCM	125 HP	05/2001 - 12/2005

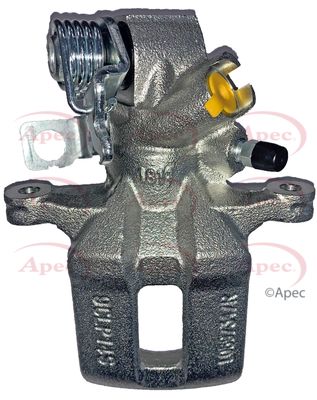

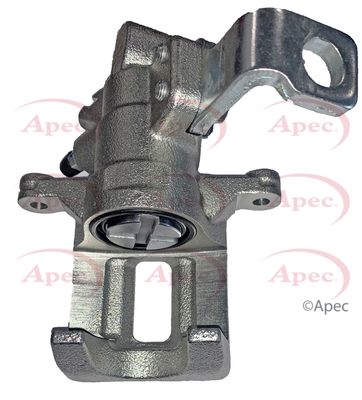

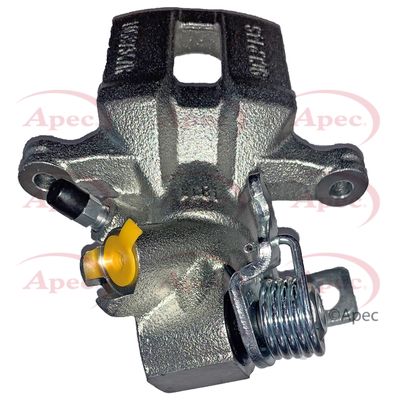

The Apec RCA224N Brake Caliper is a replacement braking-system component that forms part of the mechanism that applies or releases braking force. Its catalogue specification records behind the axle fitting position, Nissin brake-system specification, solid disc construction, and brake Caliper (1 piston). Confirm the reference, brake-system specification, fitting position, connections and vehicle application before fitting; installation and bleeding should follow the vehicle manufacturer's procedure.

Function : Brake Caliper

Fitting Position : behind the axle

Brake System : Nissin

Brake Disc Type : solid

Brake Caliper Type : Brake Caliper (1 piston)

Piston Diameter 1 [mm] : 34

for brake disc thickness [mm] : 9

Material : Grey Cast Iron

Article number of recommended accessories : BBS15

Article number of recommended accessories : BSC1
