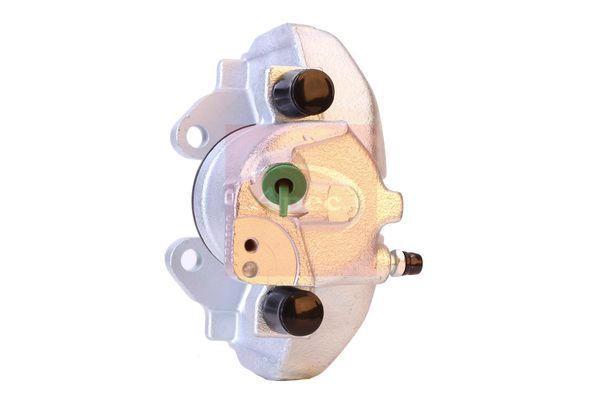

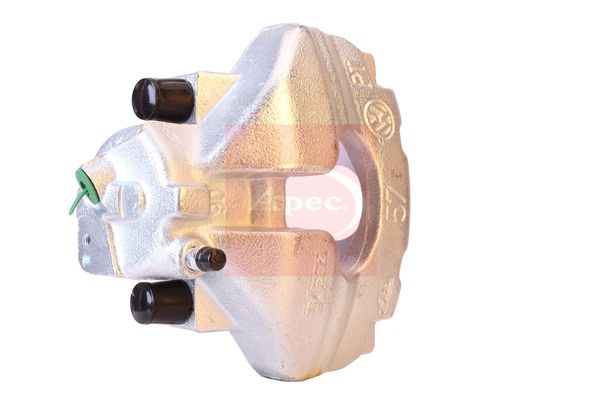

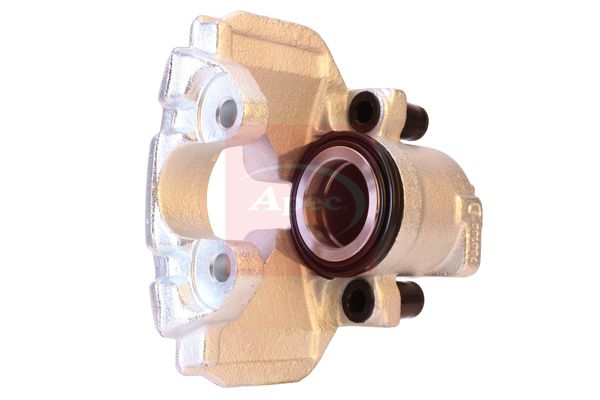

Apec RCA474N Brake Caliper

SKU: RCA474N

Your selected vehicle

In stock

Orders placed by 17:00 are usually dispatched the same working day

£43.90 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)

Description	Cylinder Capacity	Horse Power	Year
2.0	1968 CCM	84 HP	07/1990 - 04/2003
1.9 TD	1896 CCM	68 HP	10/1992 - 04/2003
2.4 D	2370 CCM	78 HP	07/1990 - 04/1998
2.5	2461 CCM	115 HP	08/1996 - 04/2003
2.5 Syncro	2461 CCM	115 HP	08/1996 - 04/2003
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.4 D	2370 CCM	75 HP	08/1997 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	09/1995 - 04/2003
2.5 TDI	2461 CCM	88 HP	12/1998 - 04/2003
2.8 VR6	2792 CCM	204 HP	06/2000 - 04/2003

TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,

Description	Cylinder Capacity	Horse Power	Year
2.4 D Syncro	2370 CCM	78 HP	10/1992 - 09/1998
2.5	2461 CCM	110 HP	09/1990 - 06/2003
2.4 D	2370 CCM	78 HP	09/1990 - 04/1998
2.5 TDI	2461 CCM	102 HP	09/1995 - 04/2003
2.5 TDI Syncro	2461 CCM	102 HP	01/1996 - 04/2003
2.5 Syncro	2461 CCM	115 HP	07/1996 - 04/2003
2.5	2461 CCM	115 HP	08/1996 - 04/2003
2.8 VR 6	2792 CCM	140 HP	11/1995 - 04/2000
2.5 TDI	2461 CCM	88 HP	05/1998 - 04/2003

The Apec RCA474N Brake Caliper is a replacement braking-system component that forms part of the mechanism that applies or releases braking force. Its catalogue specification records ATE brake-system specification, vented disc construction, brake Caliper (1 piston), and grey Cast Iron construction. Confirm the reference, brake-system specification, fitting position, connections and vehicle application before fitting; installation and bleeding should follow the vehicle manufacturer's procedure.

Function : Brake Caliper

Brake System : ATE

Brake Disc Type : Vented

Brake Caliper Type : Brake Caliper (1 piston)

Piston Diameter 1 [mm] : 57

for brake disc thickness [mm] : 24

Material : Grey Cast Iron

Article number of recommended accessories : BBS4

Article number of recommended accessories : BSC1
