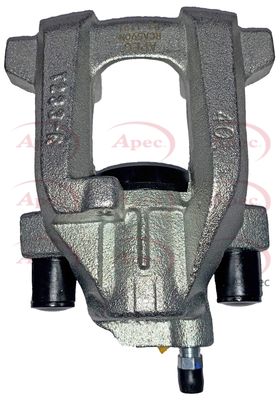

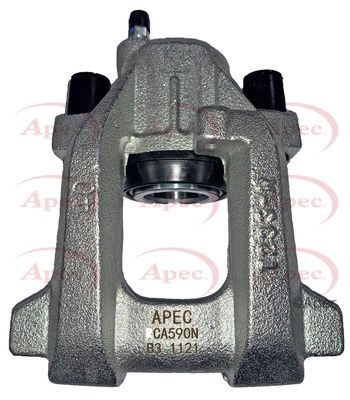

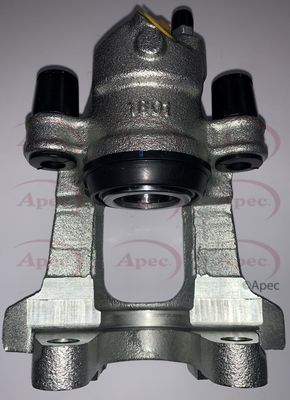

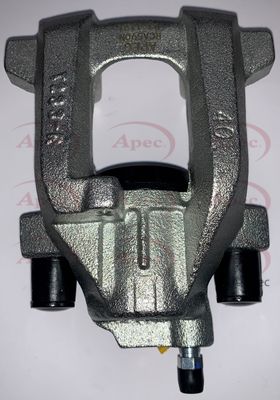

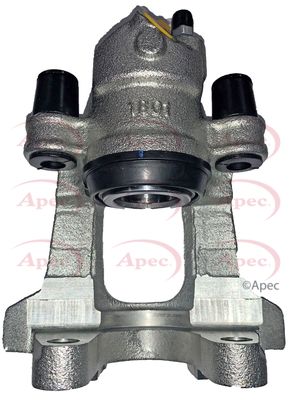

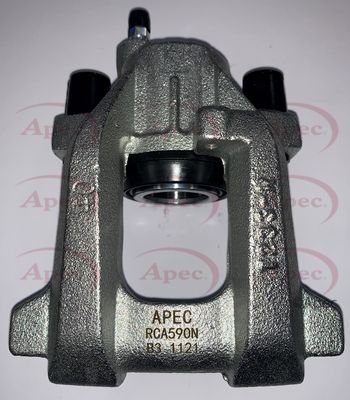

Apec RCA590N Brake Caliper

SKU: RCA590N

Your selected vehicle

In stock

Orders placed by 17:00 are usually dispatched the same working day

£48.18 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ

M-CLASS (W164)

Description	Cylinder Capacity	Horse Power	Year
ML 350 4-matic (164.186)	3498 CCM	272 HP	02/2005 - 12/2011
ML 280 CDI 4-matic (164.120)	2987 CCM	190 HP	07/2005 - 07/2009
ML 320 CDI 4-matic (164.122)	2987 CCM	224 HP	07/2005 - 07/2009
ML 300 CDI 4-matic (164.120)	2987 CCM	190 HP	07/2009 - 12/2011
ML 350 CDI 4-matic (164.122)	2987 CCM	224 HP	07/2009 - 12/2011
ML 300 CDI 4-matic (164.121)	2987 CCM	204 HP	02/2010 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124)	2987 CCM	231 HP	02/2010 - 12/2011

R-CLASS (W251, V251)

Description	Cylinder Capacity	Horse Power	Year
R 350 CDI 4-matic (251.023, 251.123)	2987 CCM	265 HP	08/2010 - 12/2014
R 350 4-matic (251.065, 251.165)	3498 CCM	272 HP	07/2005 - 12/2012
R 320 CDI 4-matic (251.022, 251.122)	2987 CCM	224 HP	01/2006 - 07/2010
R 280 CDI 4-matic (251.020)	2987 CCM	190 HP	05/2006 - 12/2012
R 350 (251.056, 251.156)	3498 CCM	272 HP	01/2007 - 12/2012
R 280 CDI (251.121, 251.026, 251.126)	2987 CCM	190 HP	05/2006 - 12/2012
R 350 CDI 4-matic (251.022, 251.122)	2987 CCM	224 HP	07/2009 - 12/2012

The Apec RCA590N Brake Caliper is a replacement braking-system component that forms part of the mechanism that applies or releases braking force. Its catalogue specification records in front of axle fitting position, ATE brake-system specification, solid disc construction, and brake Caliper (1 piston). Confirm the reference, brake-system specification, fitting position, connections and vehicle application before fitting; installation and bleeding should follow the vehicle manufacturer's procedure.

Function : Brake Caliper

Fitting Position : in front of axle

Brake System : ATE

Brake Disc Type : solid

Brake Caliper Type : Brake Caliper (1 piston)

Piston Diameter 1 [mm] : 40

for brake disc thickness [mm] : 14

Material : Grey Cast Iron

Article number of recommended accessories : BBS6

Article number of recommended accessories : BSC1

Apec RCA590N Brake Caliper
