Apec RCA815N Brake Caliper

SKU: RCA815N

Your selected vehicle

In stock

Orders placed by 17:00 are usually dispatched the same working day

£78.20 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI

SWIFT III (FZ, NZ)

Description	Cylinder Capacity	Horse Power	Year
1.2 (AZH412, ZC72S)	1242 CCM	94 HP	10/2010 - 04/2017
1.2 4x4 (AZH412, ZD72S)	1242 CCM	94 HP	10/2010 - 04/2017
1.3 DDiS (AZG413D, ZC02S, ZC92S)	1248 CCM	75 HP	10/2010 - 04/2017
1.2 (AZG412, ZC72S)	1242 CCM	90 HP	10/2010 - 04/2017
1.2 4x4 (AZG412, ZD72S)	1242 CCM	90 HP	10/2010 - 04/2017
1.6 (AZG416, AZH416, RS416, ZC32S, ZA32S)	1586 CCM	136 HP	01/2012 - 04/2017

SX4 S-CROSS (JY)

Description	Cylinder Capacity	Horse Power	Year
1.6 AllGrip (AKK 416)	1586 CCM	120 HP	08/2013 - 06/2022
1.6 DDiS (AKK 416D)	1598 CCM	120 HP	08/2013 - 06/2022
1.6 DDiS AllGrip (AKK 416D)	1598 CCM	120 HP	08/2013 - 06/2022
1.6 (AKK 416)	1586 CCM	120 HP	08/2013 - 06/2022
1.4 T AllGrip (AKK414)	1373 CCM	140 HP	08/2016 - 06/2022
1.0 (AKK 310)	998 CCM	111 HP	08/2016 - 06/2022
1.0 AllGrip (AKK 310)	998 CCM	111 HP	08/2016 - 06/2022

VITARA (LY)

Description	Cylinder Capacity	Horse Power	Year
1.6 (APK 416)	1586 CCM	120 HP	From 02/2015
1.6 AllGrip (APK 416)	1586 CCM	120 HP	From 02/2015
1.6 DDiS (APK 416D)	1598 CCM	120 HP	From 02/2015
1.6 DDiS AllGrip (APK416D)	1598 CCM	120 HP	From 02/2015
1.4 T (APK414)	1373 CCM	140 HP	From 09/2015
1.4 T AllGrip (APK414)	1373 CCM	140 HP	From 09/2015
1.0 (APK 310)	998 CCM	111 HP	From 10/2018
1.0 AllGrip (APK 310)	998 CCM	111 HP	From 10/2018
1.4 Hybrid (Mild Hybrid) AllGrip (APK414)	1373 CCM	129 HP	From 07/2019
1.4 Hybrid (Mild Hybrid) (APK414)	1373 CCM	129 HP	From 07/2019

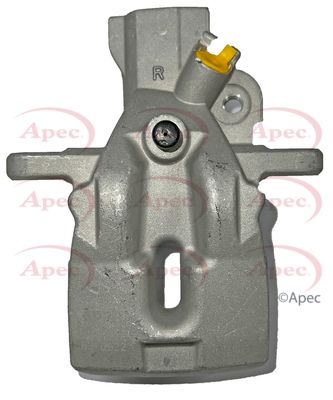

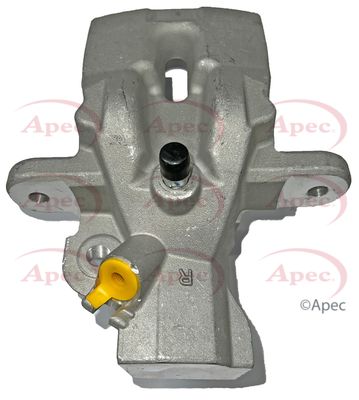

The Apec RCA815N Brake Caliper is a replacement braking-system component that forms part of the mechanism that applies or releases braking force. Its catalogue specification records behind the axle fitting position, Tokico brake-system specification, solid disc construction, and brake Caliper with integrated parking brake and Brake Caliper (1 piston). Confirm the reference, brake-system specification, fitting position, connections and vehicle application before fitting; installation and bleeding should follow the vehicle manufacturer's procedure.

Function : Brake Caliper

Fitting Position : behind the axle

Brake System : Tokico

Brake Disc Type : solid

Brake Caliper Type : Brake Caliper with integrated parking brake

Brake Caliper Type : Brake Caliper (1 piston)

Piston Diameter 1 [mm] : 34

for brake disc thickness [mm] : 9

Material : Aluminium

Article number of recommended accessories : BBS12

Article number of recommended accessories : BSC2

Apec RCA815N Brake Caliper
