APEC

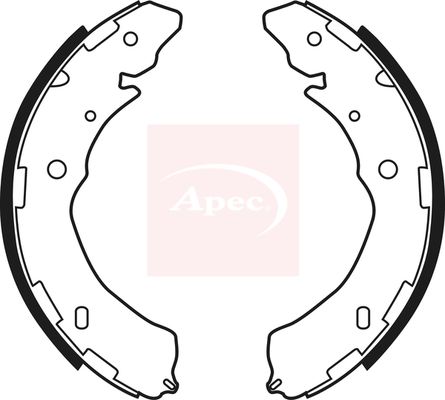

Apec SHU772 Brake Shoe Set

SKU: SHU772
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£40.22 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FIAT
FULLBACK Pickup (502_, 503_)
Description Cylinder Capacity Horse Power Year
2.4 D 4x4 (KT0T) 2442 CCM 154 HP From 04/2016
2.4 D 4x4 (KT0T) 2442 CCM 181 HP From 04/2016
2.4 D 4x4 (KT0T) 2442 CCM 150 HP From 04/2016
ISUZU
D-MAX II (TFR, TFS)
Description Cylinder Capacity Horse Power Year
2.5 CRDi 4x4 (TFS86J) 2499 CCM 163 HP 06/2012 - 12/2018
2.5 CRDi (TFR86J) 2499 CCM 163 HP 06/2012 - 12/2018
1.9 Ddi (TFR87J) 1898 CCM 163 HP 03/2017 - 12/2022
1.9 Ddi 4x4 (TFS87J) 1898 CCM 163 HP 03/2017 - 12/2022
D-MAX II Platform/Chassis (TFR, TFS)
Description Cylinder Capacity Horse Power Year
2.5 CRDi 2499 CCM 163 HP From 06/2012
2.5 CRDi 4WD 2499 CCM 163 HP From 06/2012
D-MAX III (TFR, TFS)
Description Cylinder Capacity Horse Power Year
1.9 DDI (TFR87J, TFR87) 1898 CCM 150 HP From 11/2019
1.9 DDI (TFR87) 1898 CCM 163 HP From 11/2019
1.9 DDI 4x4 (TFS87) 1898 CCM 163 HP From 11/2019
D-MAX III Platform/Chassis (TFR, TFS)
Description Cylinder Capacity Horse Power Year
1.9 DDI 4x4 1898 CCM 163 HP From 06/2023
MITSUBISHI
L200 / TRITON (KA_T, KB_T)
Description Cylinder Capacity Horse Power Year
2.5 DI-D (KA4T) 2477 CCM 167 HP 08/2007 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 136 HP 11/2005 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 167 HP 10/2007 - 12/2015
2.5 DI-D (KA4T) 2477 CCM 136 HP 11/2005 - 12/2015
2.5 DI-D 4WD (KB4T) 2477 CCM 178 HP 04/2010 - 12/2015
2.5 DI-D (KA4T) 2477 CCM 178 HP 01/2010 - 12/2015
L200 / TRITON (KJ_, KK_, KL_)
Description Cylinder Capacity Horse Power Year
2.4 DI-D 4WD (KL1T) 2442 CCM 181 HP From 11/2014
2.4 DI-D 4WD (KJ0T) 2442 CCM 154 HP From 09/2015
2.5 DI-D 4WD 2477 CCM 136 HP From 11/2014
2.2 DI-D 4WD 2268 CCM 150 HP From 07/2019

The Apec SHU772 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 50 mm width, 300 mm inner brake drum diameter, rear axle fitting position, and DRM9968 for article number. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Width [mm] : 50
Inner brake drum diameter [mm] : 300
Fitting Position : Rear Axle
for article number : DRM9968
  • Vendor APEC
  • SKU SHU772
  • Barcode 5028906014193
  • FIAT : 6000609726 6000609727
  • ISUZU : 8978348260 8979477660 8979478020
  • MITSUBISHI : 4600A018 4600A106 4600A122
  • APEC : BSH1069
  • BLUE PRINT : ADC44143
  • BORG & BECK : BBS6435
  • BOSCH : 0 986 487 758
  • BREMBO : S 54 523
  • DELPHI : LS2064
  • HELLA : 8DB 355 000-421
  • MINTEX : MFR653
  • NAPA : NBS1072
  • National : NS4056
  • TEXTAR : 91073000
