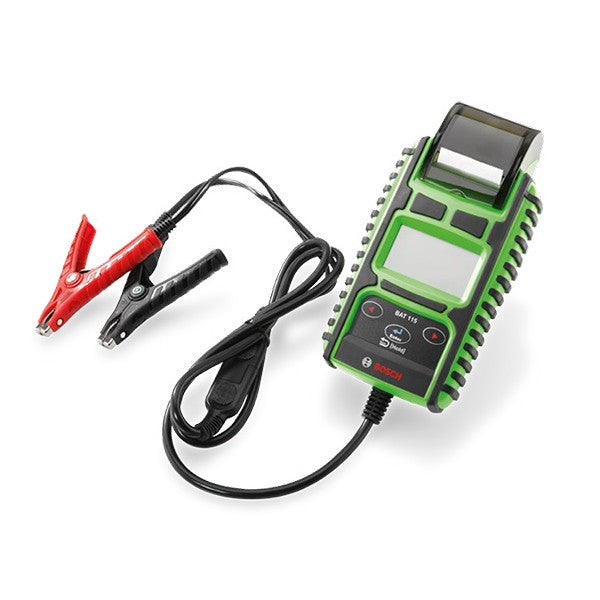

BAT 115 Battery Tester
Your selected vehicle
Regular price
£652.89
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The BAT 115 Battery Tester is a battery charging, support or diagnostic product that is designed for the battery voltage and operating mode stated in its product data. Use Bosch reference 0687000115 when cross-checking the part. Confirm the supported battery chemistry, voltage, current range, lead connections and operating instructions before use; provide ventilation and observe battery polarity and eye-protection precautions.
- Supports testing of starting and charging systems
- Detachable test clamps: For service or replacement
- Only 1100 g with robust housing: Provides easy handling and durability for daily use
- 1.8 meter testing cable: For excellent coverage around the vehicle in the workshop
- Integrated printer presenting state of health and state of charge percentage: Provides the customer with clear and easy to understand graphical printouts for their records
- Guided menus in 25 languages with 3-button operation: Easy and intuitive to use
- EN, EN2, DIN, SAE, IEC, JIS and MCA testing norms: For versatile testing of 6 V and 12 V batteries, and the 12 V and 24 V starter charging systems
- Large LCD screen: For clear, legible results which can be referenced quickly
- Micro-load test procedure: Produces fast and reliable measurement results
Technical Info
- Battery nominal voltage: 6 V / 12 V
- Application: Passenger car, light commercial vehicle, motorcycle, marine
- Battery types: Lead-acid, EFB, Gel & AGM (flat and spiral)
- Test standards: EN, EN2, DIN, SAE, IEC, JIS, MCA
- Battery size (in acc. with CCA): 40 – 2000 A
- Printer: Integrated thermal printer
- Starting/charging system test 12 V / 24 V
- Number of Menu languages: 25 languages
- Dimensions (W x H x D): approx. 250 x 130 x 60mm
- Weight approx.: 1100 g
- Operating temperature: 0 – 40 degree(C)
Length
406
Thickness
90
Width
277
Weight
1.376
Offering a wide-range of testing norms, such as EN, EN2, DIN, SAE, IEC, JIS and MCA, the versatile BAT 115 battery tester tests 6 V and 12 V batteries from 40 - 2000 CCA, including lead-acid, EFB, Gel and AGM (flat and spiral) using a micro-load test for proven accurate results while also offering the ability to test 12 V and 24 V charging systems with a diode/ripple test.
- Vendor BOSCH
- SKU 0687000115
