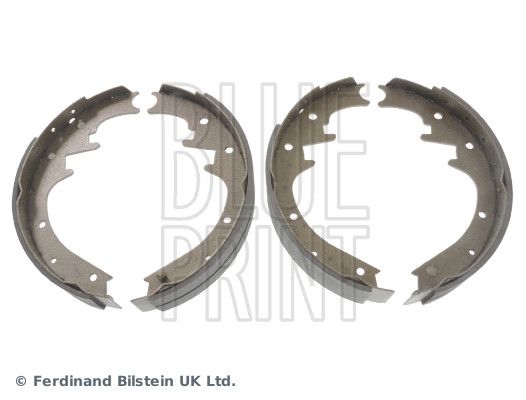

Blue Print ADA104111 Brake Shoe Set - 1

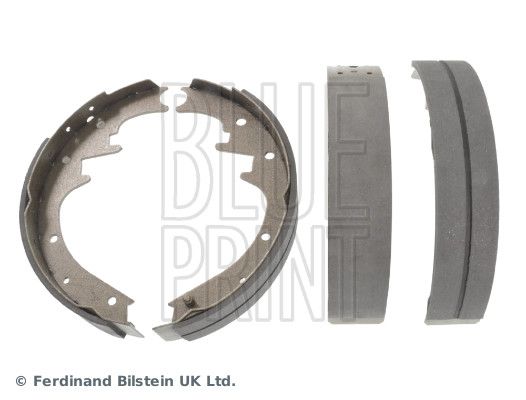

Blue Print ADA104111 Brake Shoe Set - 2
Blue Print ADA104111 Brake Shoe Set - 1
Blue Print ADA104111 Brake Shoe Set - 2
BLUE PRINT

Blue Print ADA104111 Brake Shoe Set

SKU: ADA104111
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£72.30 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

JEEP
CHEROKEE (KJ)
Description Cylinder Capacity Horse Power Year
2.4 4x4 2429 CCM 147 HP 09/2001 - 01/2008
3.7 4x4 3698 CCM 211 HP 09/2001 - 01/2008
2.5 CRD 4x4 2499 CCM 143 HP 09/2001 - 01/2008
2.8 CRD 4x4 2776 CCM 150 HP 11/2002 - 01/2008
3.7 4x4 3700 CCM 204 HP 08/2003 - 01/2008
2.8 CRD 4x4 2776 CCM 163 HP 11/2004 - 01/2008
3.7 4x4 3700 CCM 214 HP 09/2001 - 10/2007

The Blue Print ADA104111 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 46 mm width, 254 mm outer diameter, test mark ECE R90 Approved, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Width [mm] : 46
Outer Diameter [mm] : 254
Test Mark : ECE R90 Approved
Fitting Position : Rear Axle
  • Vendor BLUE PRINT
  • SKU ADA104111
  • Barcode 5050063006995
  • CHRYSLER : KV2016147 K2AMV2147AA V2016147AB 0KV2016147 0K2AMV2147AA 00K2AMV2147AA 05066147AA 5066147AA
  • JEEP : 05066147AA 5066147AA
  • APEC : SHU606
  • BORG & BECK : BBS6318
  • BOSCH : 0 986 487 529
  • DELPHI : LS1872
  • HELLA : 8DB 355 000-311
  • MINTEX : MFR648
  • TEXTAR : 91069700
  • TRW : GS8495
