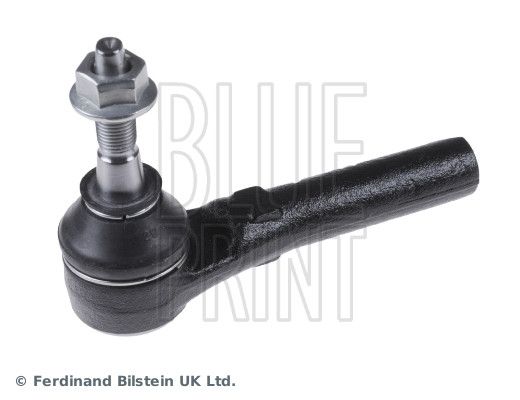

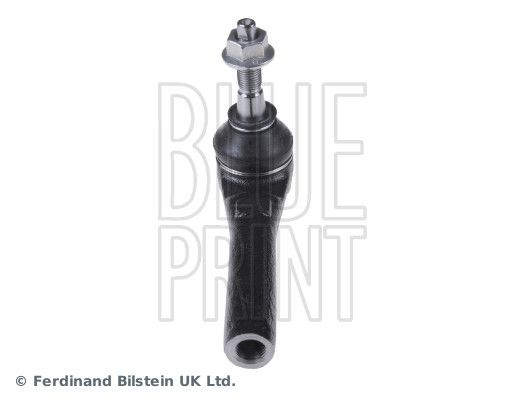

Blue Print ADA108729 Tie Rod End

SKU: ADA108729
Your selected vehicle
Out of stock
Out of Stock
£32.25 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER
SEBRING (JS)
Description Cylinder Capacity Horse Power Year
2.4 VVT 2360 CCM 170 HP 07/2007 - 12/2010
2.0 VVT 1998 CCM 156 HP 07/2007 - 12/2010
2.0 CRD 1968 CCM 140 HP 07/2007 - 12/2010
SEBRING Convertible (JS)
Description Cylinder Capacity Horse Power Year
2.4 VVT 2360 CCM 170 HP 07/2007 - 12/2010
2.7 VVT 2736 CCM 192 HP 07/2007 - 12/2010
2.0 CRD 1968 CCM 140 HP 07/2007 - 12/2010
DODGE
CALIBER
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 150 HP 06/2006 - 10/2010
2.0 1998 CCM 156 HP From 06/2006
2.4 2359 CCM 170 HP From 10/2006
2.0 CRD 1968 CCM 140 HP From 06/2006
2.4 Turbo 2359 CCM 295 HP From 12/2007
2.2 CRD 2143 CCM 163 HP 07/2010 - 11/2011
2.4 AWD 2359 CCM 170 HP From 10/2006
2.0 CRD 1968 CCM 136 HP 06/2006 - 11/2011
2.0 CRD 1968 CCM 120 HP 06/2006 - 11/2011
JOURNEY
Description Cylinder Capacity Horse Power Year
2.7 2736 CCM 185 HP From 01/2009
2.0 CRD 1968 CCM 140 HP From 06/2008
2.4 2360 CCM 170 HP From 01/2009
3.5 3518 CCM 235 HP 06/2008 - 12/2010
3.5 AWD 3518 CCM 235 HP 06/2008 - 12/2010
2.4 ECO+ 2360 CCM 170 HP From 06/2008
3.6 3605 CCM 280 HP 06/2012 - 12/2015
2.4 2360 CCM 175 HP From 09/2008
3.6 3605 CCM 287 HP From 01/2012
2.4 2360 CCM 173 HP From 06/2012
3.6 AWD 3604 CCM 280 HP From 05/2013
2.0 CRD 1968 CCM 136 HP 06/2008 - 12/2011
JOURNEY VAN (JC)
Description Cylinder Capacity Horse Power Year
2.0 CRD 1968 CCM 140 HP 06/2008 - 12/2011
FIAT
FREEMONT (345_)
Description Cylinder Capacity Horse Power Year
3.6 4x4 3604 CCM 280 HP 08/2011 - 12/2015
2.0 JTD 1956 CCM 140 HP 08/2011 - 12/2015
LANCIA
FLAVIA Convertible (JS_)
Description Cylinder Capacity Horse Power Year
2.4 (JK, JS) 2360 CCM 170 HP 03/2012 - 12/2014
JEEP
COMPASS (MK49)
Description Cylinder Capacity Horse Power Year
2.2 CRD 4x4 2143 CCM 163 HP From 12/2010
2.0 1998 CCM 156 HP From 05/2011
2.2 CRD 2143 CCM 136 HP From 05/2011
2.4 4x4 2360 CCM 170 HP From 09/2006
2.0 CRD 4x4 1968 CCM 140 HP From 09/2006
2.4 2360 CCM 170 HP From 08/2006
2.0 CRD 1968 CCM 140 HP From 08/2006
2.2 CRD 4x4 2143 CCM 136 HP From 05/2011
2.0 CRD 4x4 1968 CCM 120 HP From 02/2007
PATRIOT (MK74)
Description Cylinder Capacity Horse Power Year
2.2 CRD 4x4 2143 CCM 163 HP 01/2011 - 12/2017
2.0 1998 CCM 156 HP 01/2011 - 12/2017
2.4 4x4 2360 CCM 170 HP 01/2008 - 12/2017
2.0 CRD 4x4 1968 CCM 140 HP 02/2007 - 12/2017
2.4 2360 CCM 170 HP 06/2009 - 12/2017
2.0 4x4 1998 CCM 156 HP 02/2007 - 12/2017

The Blue Print ADA108729 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M12 x 1,5 internal thread size, M12 x 1,25 external thread size, front axle left and front axle right fitting position, and with lock nut. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Length [mm] : 145
Thickness [mm] : 98
Internal Thread Size : M12 x 1,5
External Thread Size : M12 x 1,25
Spanner Size : 18
Fitting Position : Front Axle Left
Fitting Position : Front Axle Right
Supplementary Article/Supplementary Info : with lock nut
  • Vendor BLUE PRINT
  • SKU ADA108729
  • Barcode 5050063129533
  • APEC : AST6266
  • BORG & BECK : BTR5703
  • CORTECO : 49398686
  • DELPHI : TA2753
  • FEBI BILSTEIN : 41105
  • FIRST LINE : FTR5703
  • MEYLE : 44-16 020 0002
  • MONROE : L80100
  • NAPA : NST6266
  • SKF : VKDY 312510
