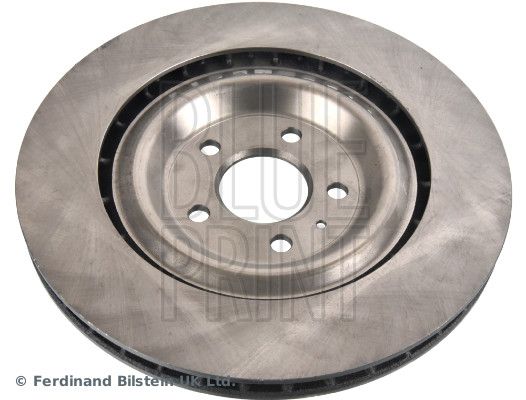

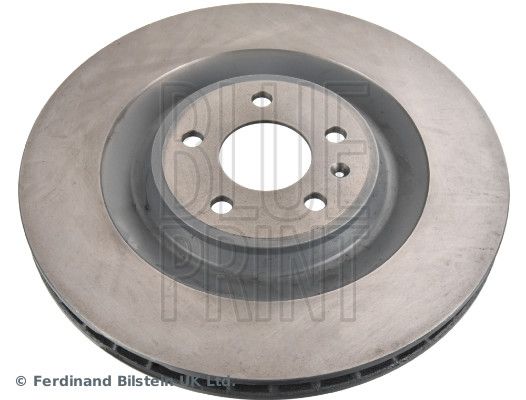

Blue Print ADBP430067 Brake Disc
Your selected vehicle
Regular price
£65.62
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Blue Print ADBP430067 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 28 mm brake disc thickness, 356 mm outer diameter, internally vented disc construction, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Thickness [mm] :
28
Rim Hole Number :
5
Number of mounting bores :
1
Thickness [mm] :
36
Outer Diameter [mm] :
356
Bolt Hole Circle Ø [mm] :
112
Surface :
Coated
Brake Disc Type :
internally vented
Fitting Position :
Rear Axle
Minimum thickness [mm] :
26
Centering Diameter [mm] :
68
- Vendor BLUE PRINT
- SKU ADBP430067
- PORSCHE : 95B 615 601 95B615601D
- APEC : DSK3306
- BORG & BECK : BBD5514
- BORG & BECK : BBD5577
- DELPHI : BG5001C
- FEBI BILSTEIN : 173026
- HELLA : 8DD 355 134-851
- MINTEX : MDC3164C
- TEXTAR : 92341205
- User manual
