Home / Car Parts / Braking / Brake Shoes & Drums / Brake Shoes
Blue Print ADC44136 Brake Shoe Set - 1
Blue Print ADC44136 Brake Shoe Set - 1
BLUE PRINT

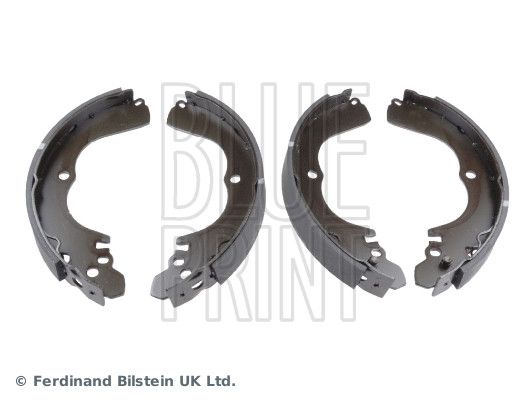

Blue Print ADC44136 Brake Shoe Set

SKU: ADC44136
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£40.05 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
OUTLANDER I (CU_W)
Description Cylinder Capacity Horse Power Year
2.0 (CU2W) 1997 CCM 136 HP 05/2003 - 10/2006
SHOGUN PININ I (H6_W, H7_W)
Description Cylinder Capacity Horse Power Year
1.8 GDI (H66W, H76W) 1834 CCM 120 HP 10/1999 - 10/2001
1.8 (H76W, H66W) 1834 CCM 114 HP 11/2001 - 06/2007
SPACE WAGON (N9_, N8_)
Description Cylinder Capacity Horse Power Year
2.4 GDi GLX (N84W) 2351 CCM 150 HP 11/1997 - 07/2000
2.4 GDi GLX 4WD (N94W) 2351 CCM 150 HP 11/1997 - 07/2000

The Blue Print ADC44136 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 32 mm width, 229 mm outer diameter, test mark ECE R90 Approved, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Width [mm] : 32
Outer Diameter [mm] : 229
Test Mark : ECE R90 Approved
Fitting Position : Rear Axle
Thickness 1 [mm] : 7
  • Vendor BLUE PRINT
  • SKU ADC44136
  • Barcode 5050063441369
  • MITSUBISHI : MN102642 MR249576 MR249577 MR289625 MR376699 MR449682 MR449683 MR449684 MR476000 4800A092
  • BORG & BECK : BBS6484
  • DELPHI : LS2074
  • MINTEX : MFR677
  • TEXTAR : 91076500
