Blue Print ADC443122 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: ADC443122

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£103.97 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

PROTON

SATRIA NEO

Description	Cylinder Capacity	Horse Power	Year
1.6	1597 CCM	113 HP	From 02/2007
1.3	1332 CCM	95 HP	02/2007 - 09/2008
1.6	1597 CCM	110 HP	From 02/2007

SAVVY

Description	Cylinder Capacity	Horse Power	Year
1.2	1149 CCM	75 HP	10/2005 - 12/2012

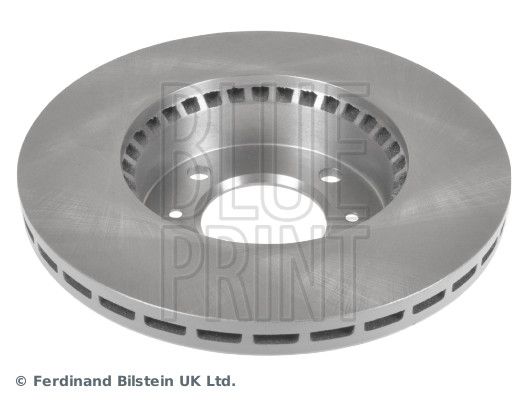

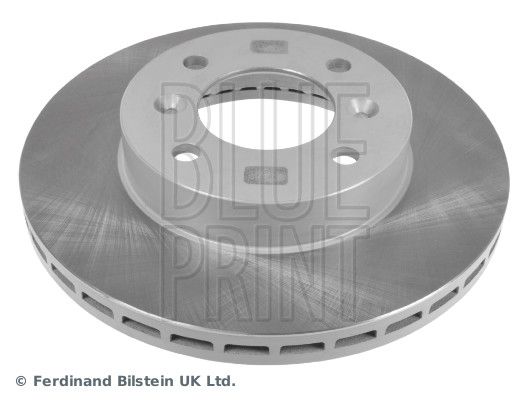

The Blue Print ADC443122 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 20 mm brake disc thickness, 236 mm outer diameter, internally vented disc construction, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Thickness [mm] : 20

Rim Hole Number : 4

Number of mounting bores : 2

Thickness [mm] : 47

Outer Diameter [mm] : 236

Bolt Hole Circle Ø [mm] : 100

Surface : Coated

Brake Disc Type : internally vented

Fitting Position : Front Axle

Minimum thickness [mm] : 18

Centering Diameter [mm] : 64
