BLUE PRINT

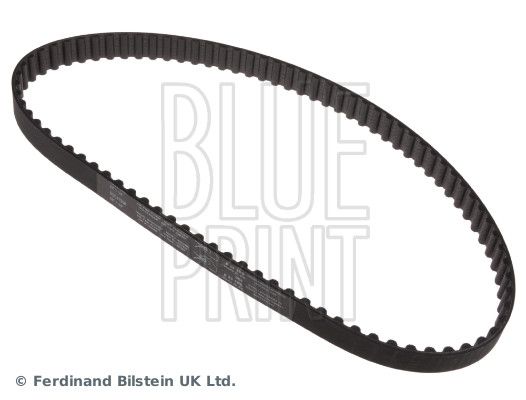

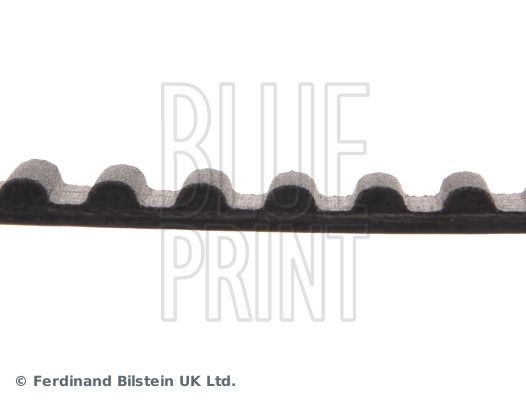

Blue Print ADC47508 Timing Belt

SKU: ADC47508
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£20.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
L 300 / DELICA II Van (L03_P)
Description Cylinder Capacity Horse Power Year
2.3 D (L038P, L068P) 2346 CCM 68 HP 09/1983 - 10/1986
L 300 / DELICA II Platform/Chassis (L03_P)
Description Cylinder Capacity Horse Power Year
2.5 D (L039P) 2477 CCM 69 HP 11/1986 - 04/1994
L 300 / DELICA II Bus (L03_P/G, L0_2P)
Description Cylinder Capacity Horse Power Year
2.3 D (L038P) 2346 CCM 68 HP 04/1983 - 10/1986
L 300 III Bus (P0_W, P1_W, P2_W, P3_W)
Description Cylinder Capacity Horse Power Year
2.5 D (P05W, P15W, P25W) 2477 CCM 69 HP 11/1986 - 05/2004
2.5 TD 4WD (P25W, P35W) 2477 CCM 87 HP 12/1987 - 05/2004
L 300 III Van (P0_V, P1_V, P2_V)
Description Cylinder Capacity Horse Power Year
2.5 D (P05V, P05W, P15V) 2477 CCM 69 HP 11/1986 - 02/2006
2.5 TD 4WD (P25V) 2477 CCM 87 HP 11/1991 - 05/2003
L200 (K3_T, K2_T, K1_T, K0_T)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD (K34T) 2477 CCM 87 HP 11/1992 - 08/1996
2.5 D (K14T) 2476 CCM 70 HP 11/1986 - 10/1996
2.5 D 4WD (K24T) 2476 CCM 70 HP 12/1987 - 05/1993
L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V)
Description Cylinder Capacity Horse Power Year
2500 TD 4WD (PD5W, PD5V, PA5W, PA5V) 2477 CCM 87 HP 09/1996 - 06/2005
PAJERO/SHOGUN   (L04_G, L14_G)
Description Cylinder Capacity Horse Power Year
2.5 TD (L044G, L049G) 2477 CCM 87 HP 04/1987 - 12/1991
2.5 TD (L044G, L049G) 2477 CCM 95 HP 11/1989 - 11/1990
PAJERO/SHOGUN Mk II Canvas Top (L04_G)
Description Cylinder Capacity Horse Power Year
2.3 TD (L043G, L048G) 2347 CCM 84 HP 12/1982 - 04/1986
2.5 TD (L044G, L049G) 2477 CCM 84 HP 05/1986 - 10/1989
2.5 TD (L044G, L049G) 2477 CCM 95 HP 11/1989 - 11/1990
PAJERO/SHOGUN   Canvas Top (V2_C, V4_C)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD (V24C) 2477 CCM 99 HP 12/1990 - 04/2000
PAJERO/SHOGUN Mk II (V3_W, V2_W, V4_W, V5_W)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD (V24W) 2477 CCM 99 HP 12/1990 - 10/1999
2.5 TDiC (V44W, V24W) 2477 CCM 99 HP 03/1991 - 08/1999
PROUDIA/DIGNITY (S4_A, S3_A)
Description Cylinder Capacity Horse Power Year
4.5 (S33A, S43A) 4498 CCM 280 HP 10/1999 - 05/2001

The Blue Print ADC47508 Timing Belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records 19 mm width, 83 teeth, and with trapezoidal tooth profile belts. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Timing Belt
Width [mm] : 19
Number of Teeth : 83
Belts : with trapezoidal tooth profile
  • Vendor BLUE PRINT
  • SKU ADC47508
  • Barcode 5050063475081
  • MITSUBISHI : MD050119 MD152622 MD363481 XD363481
  • HYUNDAI : 23356-42000 23356-42011 23356-42020
  • FUSO (MITSUBISHI) : MD363481
  • GATES : 5210
