BLUE PRINT

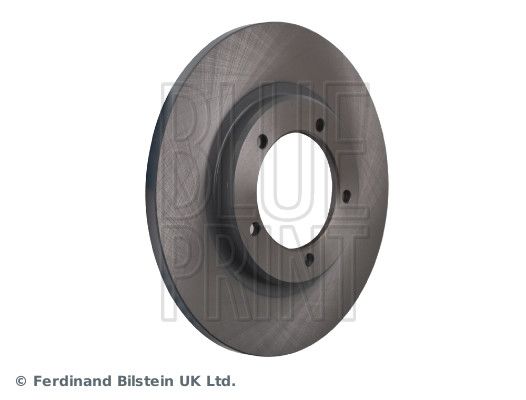

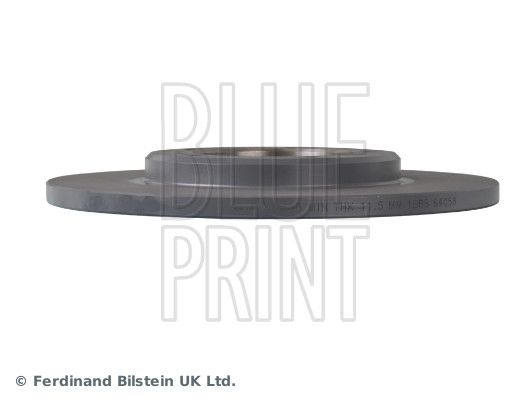

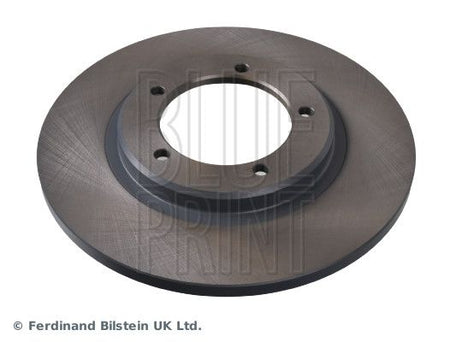

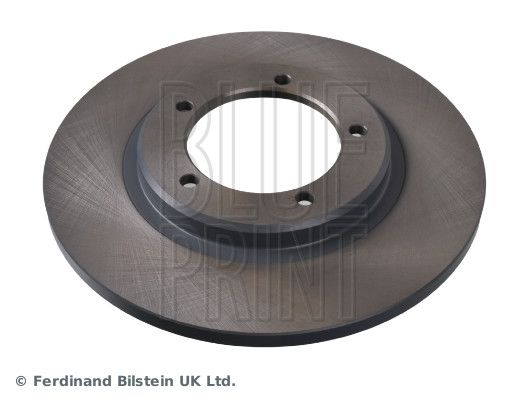

Blue Print ADD64305 Brake Disc

SKU: ADD64305
Your selected vehicle
Out of stock
Out of Stock
£79.60 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DAIHATSU
FOURTRAK
Description Cylinder Capacity Horse Power Year
2.8 D 4x4 2765 CCM 73 HP 04/1984 - 04/1993
FOURTRAK (F7, F8)
Description Cylinder Capacity Horse Power Year
2.0 4x4 (F70, F75, F80, F85) 1998 CCM 88 HP 02/1985 - 04/1993
2.8 D (F70, F75, F80, F85) 2765 CCM 73 HP 02/1985 - 12/1998
2.2 4x4 2237 CCM 91 HP 09/1991 - 04/1993
FOURTRAK (F7, F8)
Description Cylinder Capacity Horse Power Year
2.0 (F70, F75, F80, F85) 1998 CCM 88 HP 02/1985 - 04/1993
2.8 TD 2765 CCM 91 HP 12/1987 - 04/1993
2.8 D (F70, F75, F80, F85) 2765 CCM 73 HP 02/1985 - 12/1998
SPORTRAK Hard Top (F300)
Description Cylinder Capacity Horse Power Year
1.6 i 16V 4x4 1590 CCM 95 HP 10/1988 - 12/1999
SPORTRAK Soft Top (F300)
Description Cylinder Capacity Horse Power Year
1.6 16V 1590 CCM 86 HP 10/1988 - 12/1999
1.6 i 16V 1590 CCM 95 HP 10/1988 - 12/1999
TAFT
Description Cylinder Capacity Horse Power Year
2.5 D 4x4 (F50, F55) 2530 CCM 61 HP 08/1978 - 08/1982
2.8 D 4x4 (F60, F65) 2765 CCM 69 HP 08/1982 - 02/1985

The Blue Print ADD64305 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 12.5 mm brake disc thickness, 277 mm outer diameter, solid disc construction, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Thickness [mm] : 12.5
Rim Hole Number : 5
Thickness [mm] : 30
Outer Diameter [mm] : 277
Bolt Hole Circle Ø [mm] : 118
Surface : Coated
Brake Disc Type : solid
Fitting Position : Front Axle
Minimum thickness [mm] : 10.5
Centering Diameter [mm] : 96
  • Vendor BLUE PRINT
  • SKU ADD64305
  • Barcode 5050063643053
  • DAIHATSU : 43512-87603 43512-87607
  • TOYOTA : 43512-87603 43512-87607
  • APEC : DSK2041
  • BORG & BECK : BBD4045
  • DELPHI : BG2438
  • MINTEX : MDC632
  • National : NBD281
  • TEXTAR : 92114100
  • TRW : DF3111
