BLUE PRINT

Blue Print ADG043126 Brake Disc

SKU: ADG043126

Your selected vehicle

Only 5 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£133.63 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

OPEL

ANTARA A (L07)

Description	Cylinder Capacity	Horse Power	Year
2.4	2384 CCM	167 HP	12/2010 - 02/2015
2.4 4x4	2384 CCM	167 HP	12/2010 - 02/2015
2.2 CDTi	2231 CCM	163 HP	12/2010 - 12/2015
2.2 CDTi 4x4	2231 CCM	163 HP	12/2010 - 12/2015
2.2 CDTi 4x4	2231 CCM	184 HP	12/2010 - 12/2015
3.0	2997 CCM	258 HP	11/2010 - 12/2015
2.4	2405 CCM	141 HP	08/2006 - 12/2011
2.0 CDTI 4x4	1991 CCM	150 HP	08/2006 - 12/2011
2.4 4x4	2405 CCM	140 HP	08/2006 - 12/2011
3.2 V6	3195 CCM	227 HP	08/2006 - 12/2011
2.0 CDTI	1991 CCM	127 HP	03/2007 - 12/2011
2.0 CDTI	1991 CCM	127 HP	09/2008 - 12/2011
2.4	2405 CCM	140 HP	09/2008 - 12/2011
2.4 LPG	2405 CCM	140 HP	10/2008 - 08/2010
2.4 LPG 4x4	2405 CCM	140 HP	08/2006 - 12/2010

VAUXHALL

ANTARA A (L07)

Description	Cylinder Capacity	Horse Power	Year
2.2 CDTi FWD	2231 CCM	163 HP	12/2010 - 04/2015
2.2 CDTi 4x4	2231 CCM	163 HP	12/2010 - 04/2015
2.2 CDTi 4x4	2231 CCM	184 HP	12/2010 - 04/2015
2.4	2384 CCM	167 HP	12/2010 - 04/2015
2.4 4x4	2384 CCM	167 HP	12/2010 - 04/2015
2.4 4x4	2405 CCM	140 HP	08/2006 - 04/2015
2.0 CDTI 4x4	1991 CCM	150 HP	08/2006 - 04/2015
2.4 LPG 4x4	2405 CCM	140 HP	08/2006 - 04/2015
2.4	2405 CCM	140 HP	08/2006 - 04/2015
2.0 CDTi	1991 CCM	126 HP	08/2006 - 04/2015
2.0 CDTI	1991 CCM	150 HP	08/2006 - 04/2015

CHEVROLET

CAPTIVA (C100, C140)

Description	Cylinder Capacity	Horse Power	Year
2.2 D	2231 CCM	163 HP	From 03/2011
2.2 D 4WD	2231 CCM	184 HP	From 03/2011
2.0 D 4WD	1991 CCM	126 HP	10/2006 - 12/2009
2.4	2384 CCM	167 HP	From 03/2011
2.4 4WD	2384 CCM	167 HP	From 03/2011
3.0 4WD	2997 CCM	258 HP	11/2010 - 09/2018
2.2 D 4WD	2231 CCM	163 HP	From 03/2011
2.4	2405 CCM	136 HP	06/2006 - 02/2011
2.4 4WD	2405 CCM	136 HP	06/2006 - 02/2011
3.2 4WD	3195 CCM	230 HP	From 06/2006
2.0 D 4WD	1991 CCM	150 HP	From 10/2006
2.0 D	1991 CCM	150 HP	From 09/2007
2.0 D	1991 CCM	126 HP	10/2006 - 12/2009
2.4 LPG	2405 CCM	136 HP	From 01/2007
2.4 LPG 4WD	2405 CCM	136 HP	01/2007 - 02/2011

CAPTIVA Van (C100)

Description	Cylinder Capacity	Horse Power	Year
VCDi	1991 CCM	126 HP	10/2006 - 12/2009

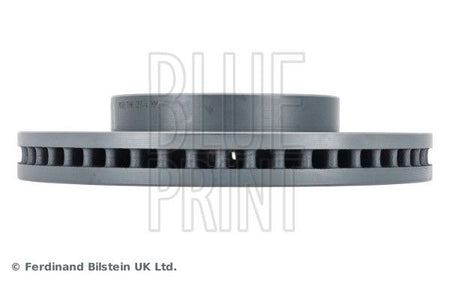

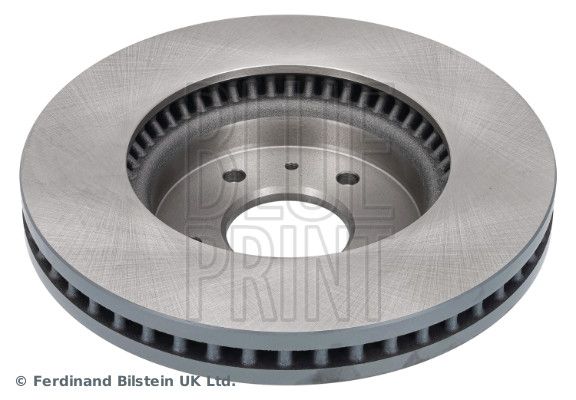

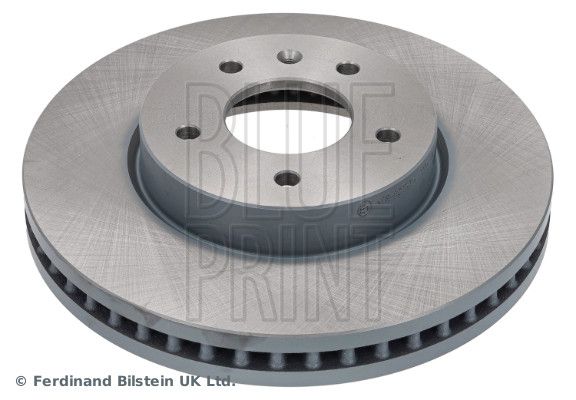

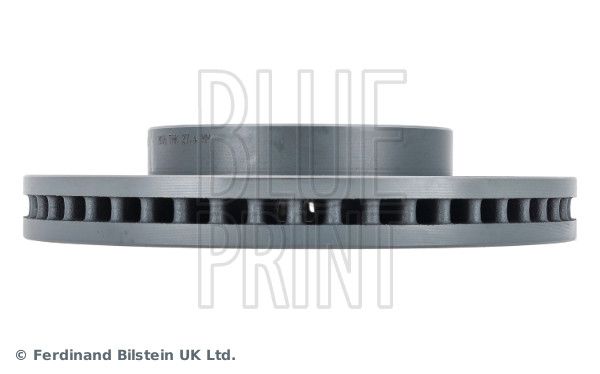

The Blue Print ADG043126 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 29 mm brake disc thickness, 296 mm outer diameter, internally vented disc construction, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Thickness [mm] : 29

Rim Hole Number : 5

Number of mounting bores : 1

Thickness [mm] : 52

Outer Diameter [mm] : 296

Bolt Hole Circle Ø [mm] : 115

Surface : Coated

Brake Disc Type : internally vented

Fitting Position : Front Axle

Minimum thickness [mm] : 27.4

Centering Diameter [mm] : 70.7

APEC : DSK2660
APEC : SDK6586
BORG & BECK : BBD5141
BOSCH : 0 986 479 267
DELPHI : BG4092
DELPHI : BG4092C
Fahren : FBD6586
FEBI BILSTEIN : 31425
FTE : 9071238
FTE : 9081042
HELLA : 8DD 355 114-401
MEYLE : 615 521 6047
MINTEX : MDC2019
NAPA : NBD5003
National : NBD1573
SKF : VKBD 80407 V1
TEXTAR : 92165400
TEXTAR : 92165405
TRW : DF4928S

Blue Print ADG043126 Brake Disc
