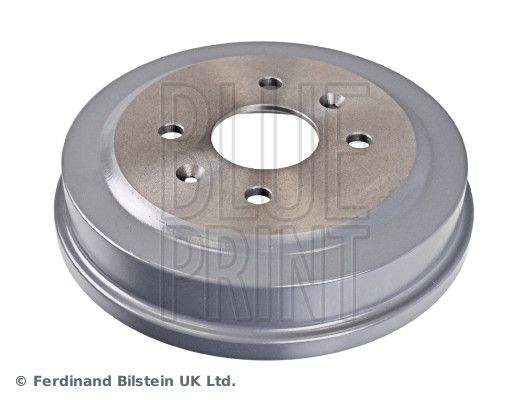

Blue Print ADG04717 Brake Drum - 1

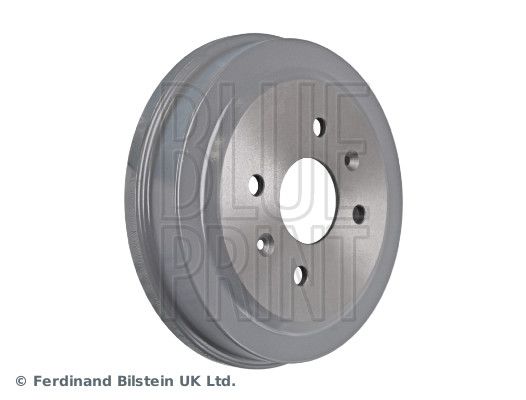

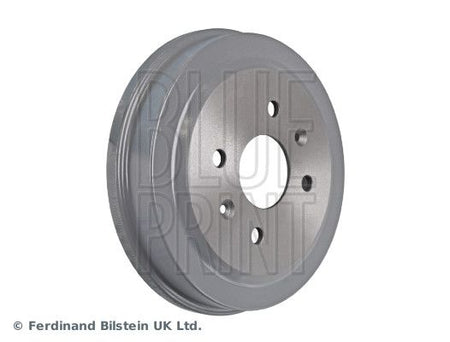

Blue Print ADG04717 Brake Drum - 2

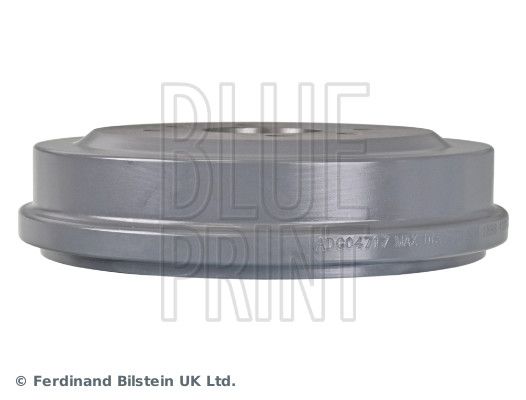

Blue Print ADG04717 Brake Drum - 3
Blue Print ADG04717 Brake Drum - 1
Blue Print ADG04717 Brake Drum - 2
Blue Print ADG04717 Brake Drum - 3
BLUE PRINT

Blue Print ADG04717 Brake Drum

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: ADG04717

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£228.52 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

CHEVROLET
AVEO / KALOS Hatchback (T200)
Description Cylinder Capacity Horse Power Year
1.4 1399 CCM 83 HP 03/2005 - 05/2008
1.4 16V 1399 CCM 94 HP 05/2003 - 05/2008
1.2 1150 CCM 72 HP 01/2004 - 05/2008
AVEO / KALOS Saloon (T250, T255)
Description Cylinder Capacity Horse Power Year
1.2 1206 CCM 84 HP From 01/2008
1.2 1206 CCM 75 HP From 01/2008
1.4 1399 CCM 94 HP 03/2005 - 05/2013
1.4 1399 CCM 101 HP From 09/2008
1.4 1399 CCM 83 HP From 03/2005
AVEO / KALOS Hatchback (T250, T255)
Description Cylinder Capacity Horse Power Year
1.2 1206 CCM 84 HP From 04/2008
1.2 LPG 1206 CCM 84 HP 04/2008 - 12/2011
1.2 1150 CCM 72 HP From 06/2006
SPARK (M300)
Description Cylinder Capacity Horse Power Year
1.0 995 CCM 68 HP From 03/2010
1.2 1206 CCM 82 HP From 03/2010
1.2 LPG 1206 CCM 82 HP From 03/2010
1.0 LPG 995 CCM 68 HP From 03/2010
DAEWOO
KALOS (KLAS)
Description Cylinder Capacity Horse Power Year
1.4 1399 CCM 83 HP From 09/2002
1.4 16V 1399 CCM 94 HP From 04/2003
KALOS Saloon (KLAS)
Description Cylinder Capacity Horse Power Year
1.4 1399 CCM 83 HP 11/2002 - 12/2004
1.4 1399 CCM 94 HP 05/2003 - 12/2004

The Blue Print ADG04717 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 200 mm inner diameter, 230 mm outer diameter, rear axle fitting position, and 57 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Rim Hole Number : 4
Number of mounting bores : 2
Width [mm] : 40
Thickness [mm] : 57
Inner Diameter [mm] : 200
Outer Diameter [mm] : 230
Bolt Hole Circle Ø [mm] : 100
max. brake drum reboring dimension [mm] : 201
Fitting Position : Rear Axle
Centering Diameter [mm] : 57
  • Vendor BLUE PRINT
  • SKU ADG04717
  • Barcode 5050063069914
  • CHEVROLET : 95903584 96386901 96470999 96471276 96471279 96471771 96471783 96473233
  • DAEWOO : 96473233
  • APEC : DRM9958
  • BORG & BECK : BBR7213
  • BORG & BECK : BBR7228
  • BOSCH : 0 986 477 225
  • DELPHI : BF548
  • DELPHI : BFR567
  • HELLA : 8DT 355 300-961
  • MEYLE : 29-15 523 0008
  • MINTEX : MBD288
  • TEXTAR : 94032100
