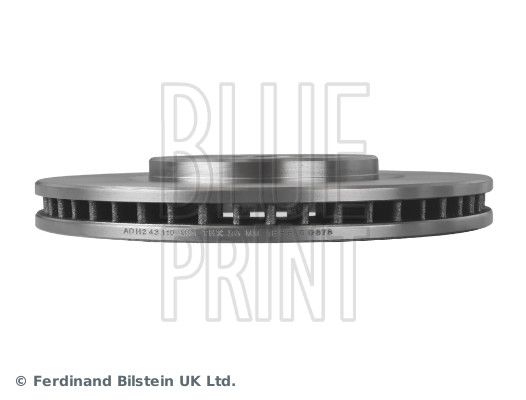

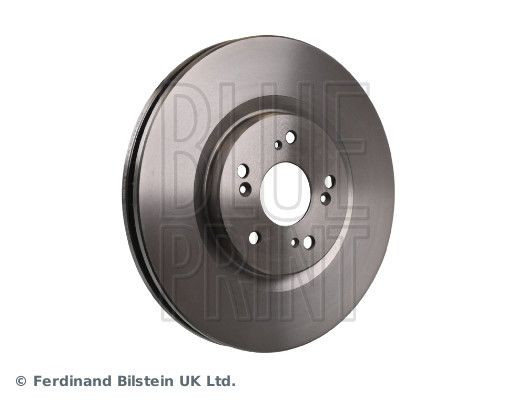

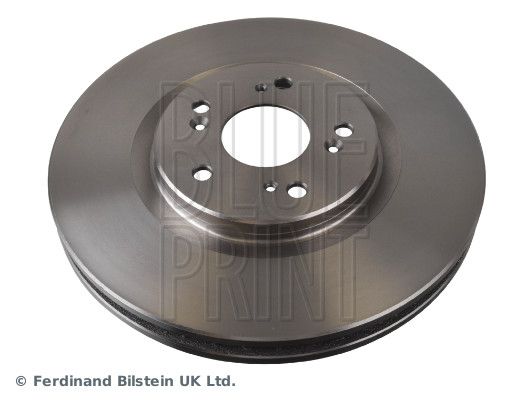

Blue Print ADH243110 Brake Disc
Your selected vehicle
Regular price
£89.43
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Blue Print ADH243110 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 32 mm brake disc thickness, 320 mm outer diameter, internally vented disc construction, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Thickness [mm] :
32
Rim Hole Number :
5
Number of mounting bores :
4
Thickness [mm] :
47
Outer Diameter [mm] :
320
Bolt Hole Circle Ø [mm] :
114
Surface :
Coated
Brake Disc Type :
internally vented
Fitting Position :
Front Axle
Minimum thickness [mm] :
30
Centering Diameter [mm] :
64.1
- Vendor BLUE PRINT
- SKU ADH243110
- HONDA : 45251-TL0-G50 45251-TL0-G51
- APEC : DSK2650
- BORG & BECK : BBD5892S
- BOSCH : 0 986 479 741
- DELPHI : BG4225
- FTE : 9071263
- FTE : 9081160
- HELLA : 8DD 355 116-091
- MINTEX : MDC2164
- National : NBD1799
- TEXTAR : 92194900
- TRW : DF6437
- VALEO : 673636
